Specifications
14dbi Magnetic base for Router gsm antenna for mobile phone1.Freq:890-960/1710-1880MHz
2.Gain:14dBi
3.Size:75*870mm

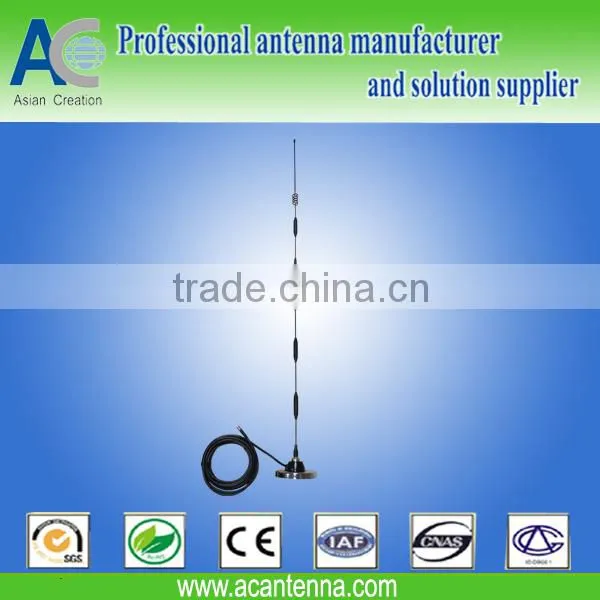

14dbi Magnetic base for Router gsm antenna for mobile phone
Applications:
Model units whip antenna is designed specifically
for mobile communications. Antenna made with stainless
steel spring wire, with good flexibility. The bottom of the
fixed magnetic disk mode or folders with optional side seat,
clip the tailstock and so on. According to the requirements
of the user configure different types of connectors
Features:
antenna, small size, light weight,
stable performance, reliable, easy to install
Electrical Specifications | |
Model |
AC-Q9018I22 |
Frequency Range |
890-960/1710-1880MHz |
Band width |
70Mhz/170Mhz |
Gain |
14dBi |
Radiation |
Omni |
V.S.W.R |
≤2.0 |
Polarization |
Vertical |
Maximum Input Power |
50W |
Impedance |
50ohm |
Operating Temperature |
-40℃ to+70℃ |
Connector |
SMA Male |
Cable Type |
RG58U |
Cable Length |
2M |
Mount way |
Magnetic |
Mechanical Specifications | |
Antenna Dimension |
Φ75x870mm |
Weight |
340g |
Memo: Above specification subject to change without further notice.Please contact us for more details.
