Home > Electrical & Electronics > Antenna > Communication Antenna > GPS Antenna Fakra MFD2 RNS2 RNS-E MFD 2 VW SAT NAV

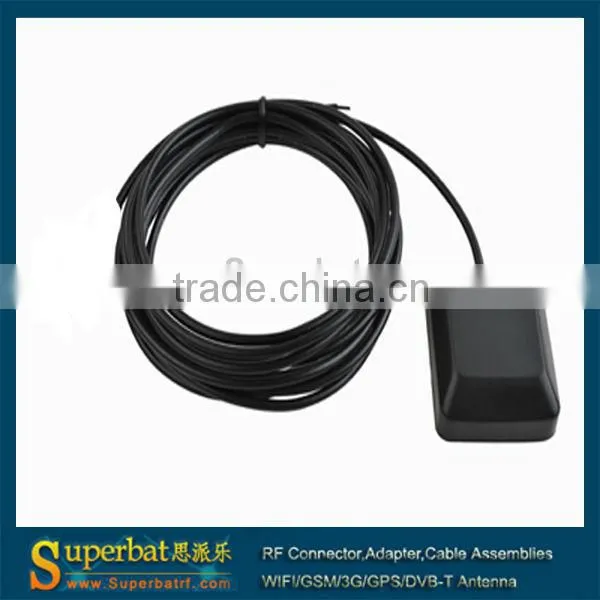

GPS Antenna Fakra MFD2 RNS2 RNS-E MFD 2 VW SAT NAV

Name: GPS Antenna Fakra MFD2 RNS2 RNS-E MFD 2 VW SAT NAV
Brand: superbat
SKU: 121476355

GPS Antenna Fakra MFD2 RNS2 RNS-E MFD 2 VW SAT NAV thumbnail-1

GPS Antenna Fakra MFD2 RNS2 RNS-E MFD 2 VW SAT NAV photo-1

US$ 8.45 - 9.9 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

superbat

Model Number:

GA03-300-F03RSJ

Contact Supplier Request Quote Chat Now

Shenzhen Superbat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name superbat

Model Number GA03-300-F03RSJ

Specifications

1.GPS Antenna
2.Cable: RG174 3 m
nnector:fakra blue ST
4.Dependable performance Reliable reputation
5.GA03-300-F03CSJ

GPS Active Antenna Fakra blue with Excellent Signal Amplification for GPS receivers/systems and Mobile Applications

Characteristic:

(i) Dieletric Antenna

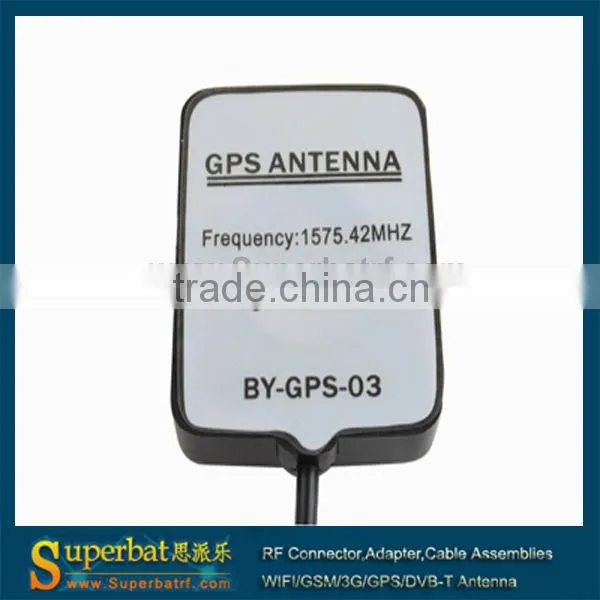

Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP

(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max

(iii)Mechanical
Weight <100gram

Cable :RG174 3 meter / contact us for other length

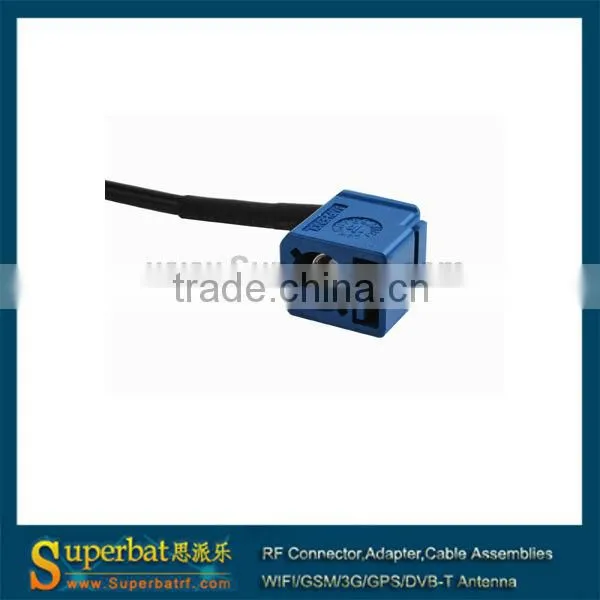

Connector :Fakra blue Straight

Mounting Magnetic base
Housing Black

(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof

(V) FEATURES:

Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity

(VI) APPLICATIONS:

Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator

GPS antenna with Fakra compatibility:

VW: MFD2, RNS2 in Golf 5, Golf Plus, Passat, Jetta, Touran, Touareg, T5, T5 MULTIVAN,
AUDI: RNS-E 16:9 in A3, A4, A6,
Comand APS in Mercedes W211 E-Klasse i APS 50 CLK W209,
Blaupunkt: Travel Pilot EX.
