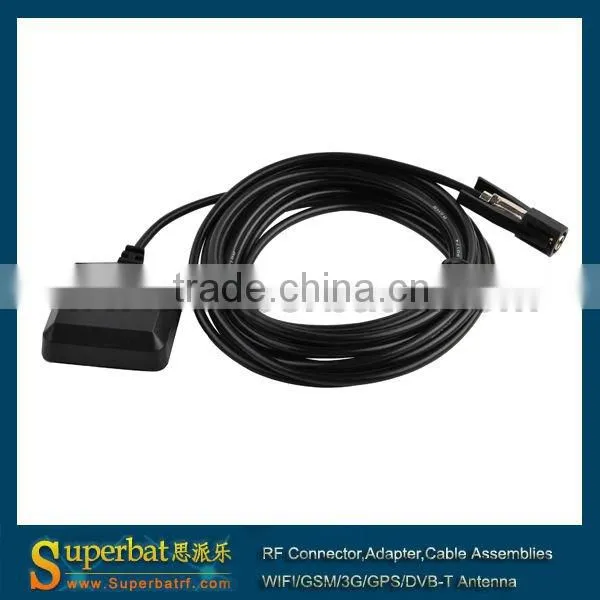

Help CenterMini GPS Glonass Antenna WICLIC for Becker Traffic Star/Becker DTM High
Related Products
-
Amplified Remote GPS GSM Combined AntennaUS$ 15 - 18.5MOQ: 100 Pieces -
Brand New Amplified Remote GPS GSM Combined Antenna for GPS Receivers/systems and Mobile ApplicationsUS$ 20 - 24MOQ: 1 Piece
-
Multi-band Combine Antenna GPS+WiFi+GSM Antenna SMA SeriesUS$ 16.5 - 23.9MOQ: 100 Pieces
-
Gps Marine Antenna BNC Plug 5 MeterNegotiableMOQ: 1 Piece
-
GPS Active Antenna With BNC Plug Connector Gps External Active AntennaUS$ 7.2 - 8.4MOQ: 100 Pieces
Specifications

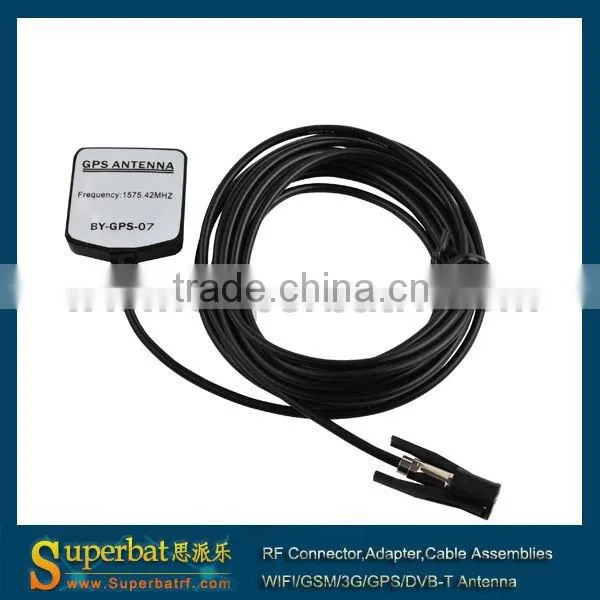

1.Mini GPS glonass antenna WICLIC2.Cable: RG174 3 m
3.Excellent Signal Amplification GPS receivers
4.GA07-300-W01SP
Characteristic:
(i) Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impendence 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
(ii) LNA/Filter
LNA Gain (Without cable) 28+/-3dB
Noise Figure 1.5dB Typ.
Filter Out Band Attenuation (f° =1575.42MHz)
7dB Min f0+/-20MHZ ;
20dB Min f0+/-50MHZ;
30dB Min f0+/-100MHZ
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
(iii)Mechanical
Weight <100gram
Size 49x39x15mm
Cable :RG174 3 meter / contact us for other length

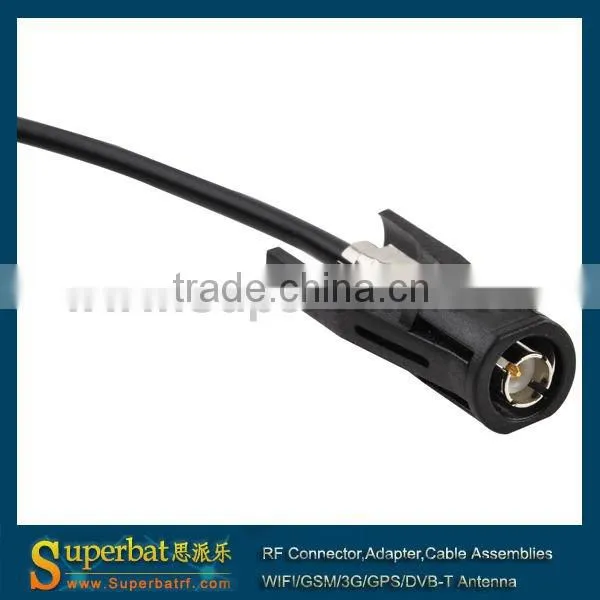

Connector :SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX /Fakra/AVIC/WICLIC in straight or right angle please give us some notes if you need to change the antenna connector .Tks!
Mounting Magnetic base
Housing Black
(iv)Environmental
Working Temp -40°C~+85°C
Storage Temp. -45°C~+100°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Relative Humidity 95% non-condensing
Weatherproof 100% Waterproof
(V) FEATURES:
Compact Construction/ Low Profile/
Fully Waterproof
Magnet and Screw Mount Base
Excellent Temperature Stability
Low Noise Figure
High Sensitivity
(VI) APPLICATIONS:
Automobile GPS
Bluetooth Receiver
Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
GPS antenna with Wiclic compatibility:
* Becker Traffic Pro 4720, 4723, 4724, 4725, 4730, 4733, 6549
* Becker Traffic High Speed 7820, 7822, 7823, 7824, 7825, 7830, 7833
* Becker Indianapolis 7920, 7922, 7925, 7923, 7935
* Becker DTM 7802, 7810, 7813
* Becker DTM High Speed
* Becker Online Pro
* Becker Traffic Star
* Pioneer ANH-P9R, ANH-P-9R-BK, ANH-P 10MP
* Mercedes APS30... and similar models with round connector
* Sony MEX.100NV...and similar models with round connector
* JVC KD-NX1, KD-NX1R, KD-NX1B, KDNX301....and similar models with round connector
Note: Please select the connector of this antennas when you pay us. if not,we'll send the default connector to you. Please contact us if you have other requirement.
PAYMENT WAY
We accept Paypal,T/T, Western Union, and Escrow.
SHIPMENT
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.
Please contact us if you have other requirement.
