Help CenterAmplified Remote GPS GSM Combined Antenna
Related Products
-
Brand New Amplified Remote GPS GSM Combined Antenna for GPS Receivers/systems and Mobile ApplicationsUS$ 20 - 24MOQ: 1 Piece -
Multi-band Combine Antenna GPS+WiFi+GSM Antenna SMA SeriesUS$ 16.5 - 23.9MOQ: 100 Pieces
-
Gps Marine Antenna BNC Plug 5 MeterNegotiableMOQ: 1 Piece
-
GPS Active Antenna With BNC Plug Connector Gps External Active AntennaUS$ 7.2 - 8.4MOQ: 100 Pieces
-
Mini GPS Active Antenna BNC Connector for Abarten GPS Chart Navigator 951XWUS$ 4.99 - 7MOQ: 10 Pieces
Specifications
1.GPS GSM Combined Antenn Fakra connector2.Center Frequency 1575.42MHz
3.Dependable performance
4.GA08-300-M03RA-S01SP

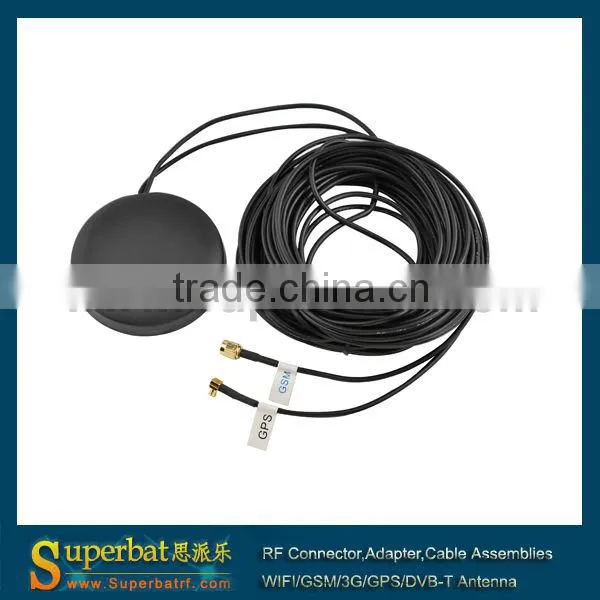

Amplified Remote GPS+GSM Combined Antenna Fakra connector
Description
1. Dieletric Antenna
Center Frequency 1575.42MHz±3 MHz
V.S.W.R 1.5:1
Band Width ±5 MHz
Impedance 50 ohm
Peak Gain >3dBic Based on 7×7cm ground plane
Gain Coverage >-4dBic at –90°<0<+90°(over 75% Volume)
Polarization RHCP
2. GSM Antenna
Center Frequency: 890~960Mhz 1720~1920MHz
Typical Gain:2dBi+/-1dB@850MHZ
2dBi+/-1dB@900MHZ
1dBi+/-1dB@1800MHZ;1dBi+/-1dB@1900MHZ
V.S.W.R <2.0
Impedance: 50 ohm
3. LNA/Filter
LNA Gain(Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHZ)
7dB Min f0 ±20MHz
20dB Min f0 ±50MHz
30dB Min f0 ±100MHz
V.S.W.R <2.0
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0 to 5.0V or other
DC current 5mA ,10mA Max
4. Mechanical
Size 100 mm(L)—65mm(W)
Cable RG174 3 meters or other

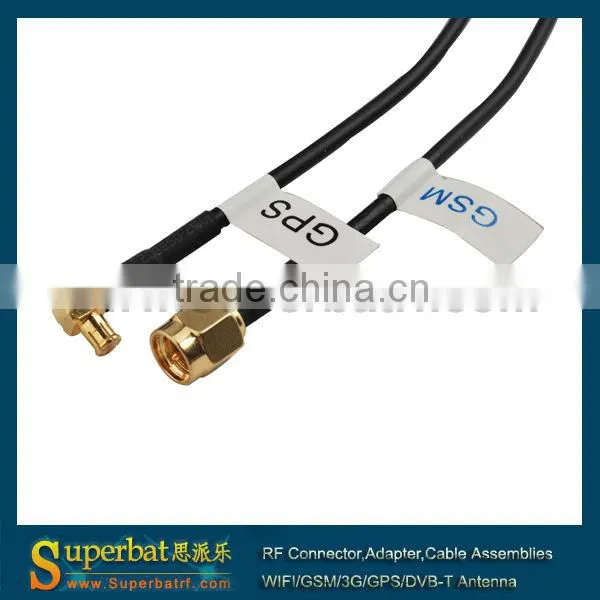

Connector :
GPS-----MCX male right angle connector
GSM-----SMA male straight connector
Mounting Magnetic/Sticking
Housing Black
5. Environmental
Working Temp -40°C~+85°C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
Offer custom:
If you require a different mounting style, we'd like to consider your requirements to provide a working solution. Please contact us.
PAYMENT WAY
We accept T/T, Western Union, Escrow and Paypal.
SHIPPING
1. The parts from us are sure to have quality warranty,and they are double tested before shipping.
2. The items can be sent within 2 working day after the payment reaches us,except for mass process, we will confirm the delivery in advance.
3. We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4. Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
5. Sample is available.
WARRANTY
1. We can guarantee the product quality within 1 year.
2. If products cannot work,refund or exchange is available.
We provide comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every detail.Please contact us if you need our detail warranty term.
ABOUT US
We specialises in the sale of RF coaxial connectors,adapters, cable assemblies,3G/GSM/WIFI/GPS antennas etc, and especially provides custom services for these products. we own the "Xtar" and "superbat" trademark.
We own a mature and professional Sales Team and Technical Team,and set up a good and long-term relationship with over 50 domestic manufactures of coaxial connector and antenna.We have served for over 86000 customers from more than 120 countries on ebay, alibaba and our online shop.We have achieved great admiration and we are widely trusted at home and abroad.
Our mission is: Provide an Internet-based integrated supply chain for small and medium-sized users and retailers of RF and microwave components in the world.
Quality is essential to both of us, we believe that High quality, Low price,Mutual benefit will be good basis of our cooperation.
Please contact us if you have other requirement.
Customer's requires are always welcome~!
