CC2530 Module Low Power Long Range Sensor Module
(P/N: CC2530PA)

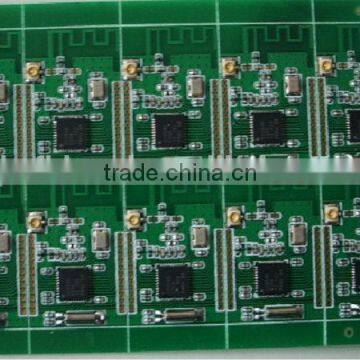

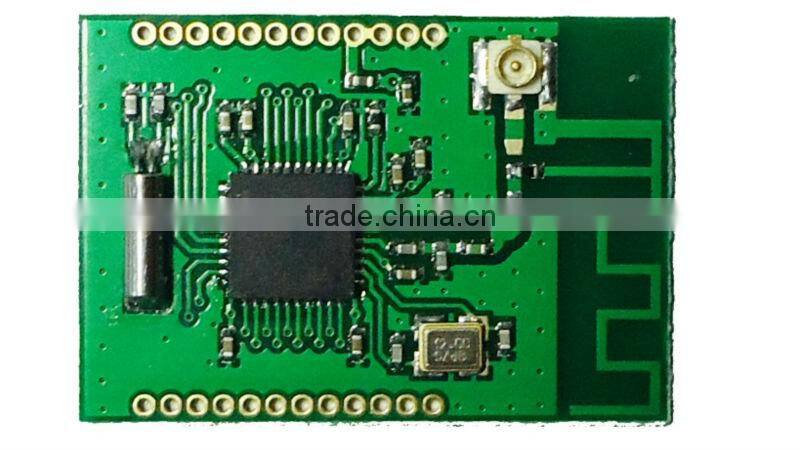

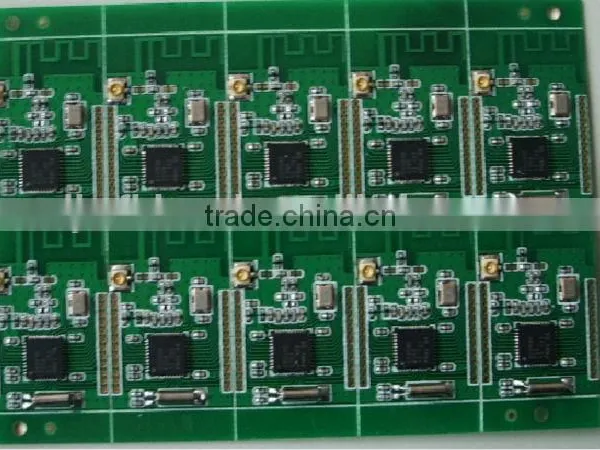

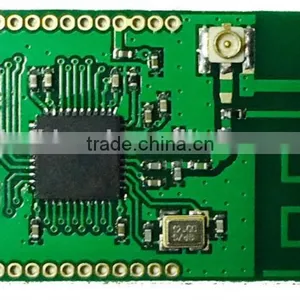

CC2530 2.4GHz Wireless Module
General Description
The CC2530PARF Module is a low-power, embedded long range Power Amplifier (PA) highly integrated 2.4-GHz transceiver that suitable for systems targeting compliance with worldwide radio-frequency. It’s a true system-on-chip solution for 2.4-GHz IEEE802.15.4, applications.
Electrical Characteristics
Ta = 25°C, VCC = 3.3V
Typically, equipment utilizing this device requires emissions testing and government
approval, which is the responsibility of the equipment manufacture.
ITEM | PARAMETER | UNIT | ||
MIN | TYPICAL | MAX | ||
Voltage supply
| 3.0 | 3.3 | 3.6 | V |
Transmitting current | 36 | 38 | 40 | mA |
Receiving current | 25 | 26 | 27 | mA |
Sleep consumption |
| 1 |
| uA |
frequency | 2.405 |
| 2.485 | GHz |
Output power | 3.8 | 4.0 | 4.2 | dBm |
Receiving sensitivity |
| -97 |
| dBm |
Data rate |
| 250 |
| Kbps |
Transmit distance |
| 100 |
| m |
Baud Rate | 2400 | 9600 | 115200 | bps |
Operating temperature | -40 |
| 80 | °C |
Package size | 28×20×2 mm | |||
Radio
·2.4-GHz IEEE802.15.4 compliant RF transceiver
·Excellent receiver sensitivity and robustness toInterference, receiver sensitivity reach to -97dBm
·Programmable output power up to 4.5dBm
·Suitable for systems targeting compliance with worldwide radio-frequency
·Accurate digital RSSI/LQI support
·data rate: 250kBank
8051 MCU
·Powerful five-channel DMA
·128KB in-system programmable flash, customization 32-,64-,256KB
·8KB RAM with retention in all power modes
·CSMA/CA hardware support
·AES security coprocessor
·Battery monitor and temperature sensor
·12-Bit ADC with eight channels and configurable resolution
·Two powerful USARTs with support for several serial protocols
·IEEE 802.15.4 MAC timer, general-purpose timers (One 16-Bit, Two 8-Bit)
·32-kHz sleep timer with capture
·Watchdog timer
·21 general-purpose I/O pins (19× 4 mA, 2×20 mA)
·Hardware debug support
-CC2530-Z1 RF Module
·Applications
·2.4-GHz IEEE 802.15.4 systems
·Wireless systems (256-KB flash)
·Home/Building automation
·Lighting systems
·Industrial control and monitoring
·Low-Power wireless sensor networks
·Consumer electronics
·Health care
-RFID Real-Time Applications
