Help CenterComifo Pipe Fabrication Auto Line II
Related Products
Specifications
1.Pipe fabrication auto line2.Stable and reliable performance
3.PLC control, touchscreen
4.Mitsubishi servo motor
Comifo Duct Manufacture Auto Line II also called pipe fabrication auto line, pipe production line
DUCT MANUFACTURE COMPACT LINES
Comifo provides compact lines for small and medium sized duct factories and duct installation contractors. Compact lines can be either a stand alone system or the start of a complete automatic fabricating system. It is the starter of duct manufacturers,also it can be taken right to the consctruction site. Their control systems adopt specific software and realize one person operation,which saves labor cost.
Standard Features:
1. Twin-motor driven dual-decoiling, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
2. Straightening/flattening -Air pressure controlled six(6) rolls straightenerNo adjustment required when changing from 18 to 27 gauge (0.4-1.2mm) material
3. Air pressure controlled ring type beading rolls with five beading rings-optional by remove beading rings or uplift the beading rolls
4. Accurate PLC control unit, Preset cutting size , touchscreen-easy operate
5. 0-18m/min feeding speed,fast acting back gauge,7 seconds per cutting for a 1m length sheet metal
Capabilities:
1. Alternative width for 4(1300mm) or 5(1550) material
2. Thickness: 18-27ga (0.4-1.2mm)
3. Shearing tolerance of ±0.5mm
4. Hydraulic folding diagonal tolerance of ±0.5mm
5. 0-54FPM (0-18m/min) feeding speed,fast acting back gauge

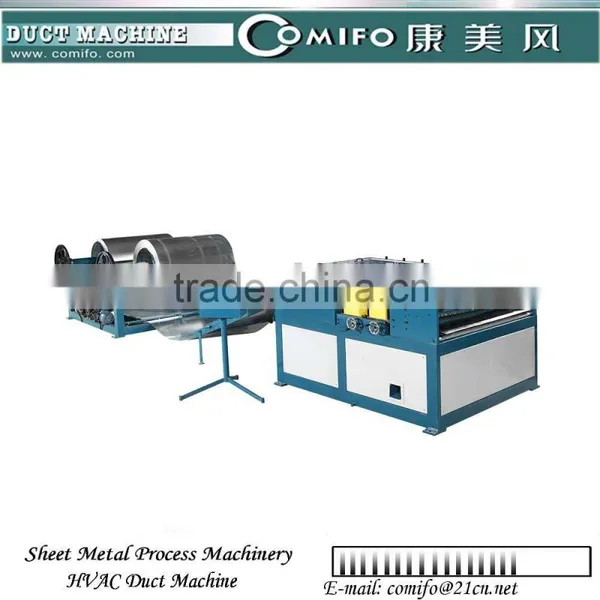

COMPACT LINE II
Comifos Compact Line II consists of cradle style decoiler, 6-roller straightener, ring-type beader and hydraulic shearer,punching and notching. It processes 4(1300mm) or 5(1550mm) galvanized steel for 18 to 27 gauge (0.4-1.2mm) material into blank for plasma cutting machine.
Stations: coil-straightening-beading- punching square -notching-shearing
Model No. |
Max Coil Width |
Thickness Range |
Speed |
Shearing Tolerance |
Diagonal Tolerance |
CAL2-1.2x1300 |
1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
CAL2-1.2x1600 |
1600mm
|
Work Flow:
More Detailed Pictures:
