Help CenterComifo Duct Machine VI
Related Products
Specifications
1.Duct machine [Duct auto line]2.Make a full finished Duct
3.PLC control, touchscreen
4.Mitsubishi servo motor

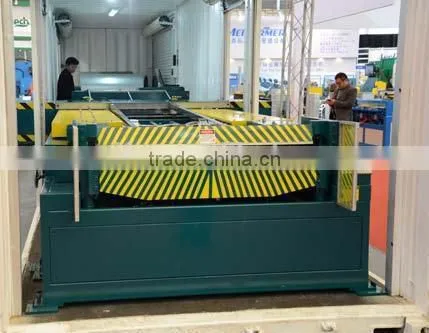

The world's new designed duct manufacture auto line is now available since Comifo designed the Auto Line VI, which can be put in a 20GP container.

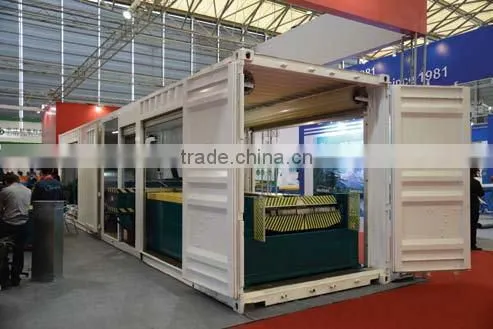

Container duct auto line VI with the feature of small size, firm structure and easy for installation, it can be used in the construction site to fulfill the ideal of movable operation and processing.
The construction site used duct manufacture auto line VI is Comifo's brave innovation and the world's first container type auto line! It saves the manual work and transportation cost, which can move to different construction sites just by moving the container (No extra installing and testing are needed). It has gained great popularity ever since its first face show in the market in 2012.
Features:
- Motor driven decoiling, selectable coils stand by, maximunm capacity of 5-ton per station (optional: up to 10-ton per station)
- Straightening/flattening-Pneumatic controlled straightener
- Pneumatic controlled ring type beading rolls with five beading rings-which can be removed
- Pittsburgh lock forming type 2 (forms pittsburgh lock, right angle lock and cutting simultaneously)
- Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Pls contact us for detailed information
Stations:
coil-straightening-beading-punching square-notching-shearing-folding-automotion pittsburgh lock forming-duplex TDF flange forming-duplex right angle lock forming (for angle iron)-folding
| Model No. | Max Coil Width | Thickness Range | Speed | Shearing Tolerance | Diagonal Tolerance | Floor Space |
| CAL6-1.2x1300 | 1300mm | 0.4-1.2mm (18-30ga) | 0-18m/min (0-59FPM) | ±0.5mm | ±0.5mm | 5400x2300x1400 |
| CAL6-1.2x1600 | 1600mm | 5400x2600x1400 |

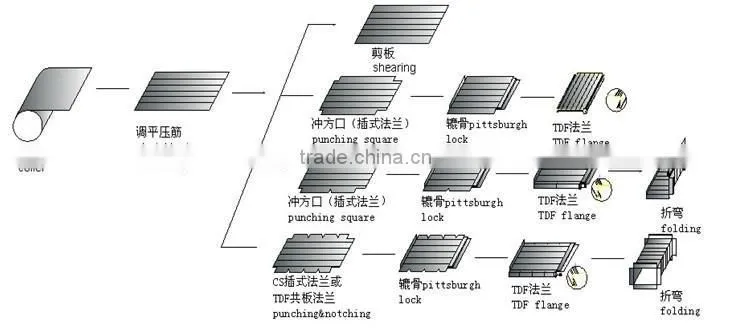

Work flow:

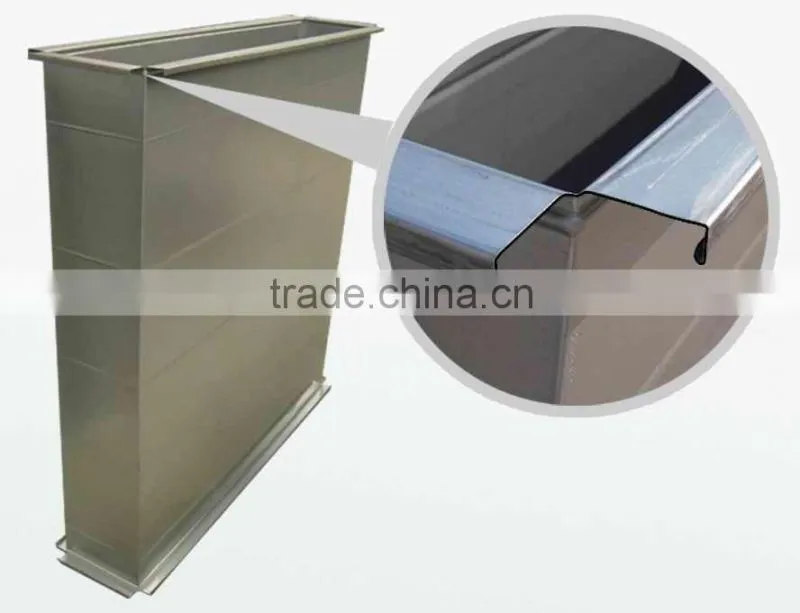

Product from the Auto Line VI:
