Help CenterRactangular Duct Forming Machine VIII
Related Products
Specifications
1.Rectangular duct forming machine2.Make a full finished Duct
3.PLC control, touchscreen
4.Mitsubishi servo motor

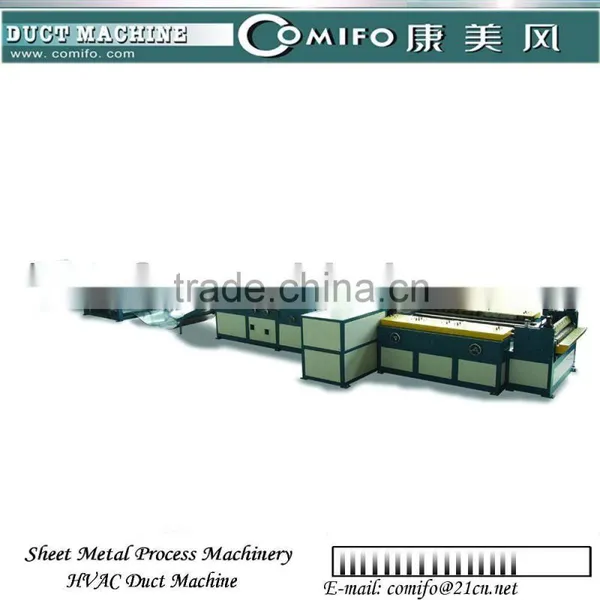

Comifo duct manufacture auto line also called rectangular duct forming machine,Metal Pipe Forming Machine,rectangle duct line
Features:
>Modular design allows adding a section at a time
>Two sets of twin-motor driven dual-decoilings, selectable coils stand by, maximum capacity of 5-ton per station (optional: up to 10-ton per station)
>Pneumatic controlled straightener and beader
>Punch center holes for cross-tie duct bracing
>Duplex drive cleat forming rollers are available
>Patented Automotion pittsburgh lock former, forms pittsburgh lock and right angle, roll forming and shearing simultaneously, shorten working time, a perfect match to duct auto line
>Duplex TDF flange former, forms TDF flange by double sides
>Optimizes floor space by inline position of machines, guarantees high efficiency
>Accurate PLC control unit, preset available profiles and folding style, notching size, punching size, cutting dimension on touchscreen
Capabilities:
√ Alternative width for 4(1300mm) or 5(1550) material
√ Sheet capacity: 18-27ga (0.4-1.2mm)
√ Shearing tolerance of ±0.5mm
√ Hydraulic folding diagonal tolerance of ±0.5mm
√ 0-54FPM (0-18m/min) feeding speed,fast acting back gauge
Pls contact us for detailed information
Stations: coil-straightening-beading-punching cross-tie holes-punching square-notching-duplex drive cleat forming-folding -shearing- automotion pittsburgh lock forming-coil conveyer (optional) -duplex TDF flange forming -hydraulic folding
Model No. | Max Coil Width | Thickness Range | Speed | Shearing Tolerance | Diagonal Tolerance |
CAL8-1.2x1300 | 1300mm
|
0.4-1.2mm 18-30ga
|
0-18m/min 0-59FPM |
±0.5mm |
±0.5mm |
CAL8-1.2x1600 | 1600mm
|
Work Flow:
Finished Duct Product from the Auto Line V:

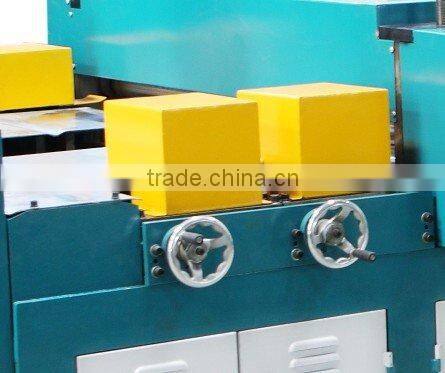

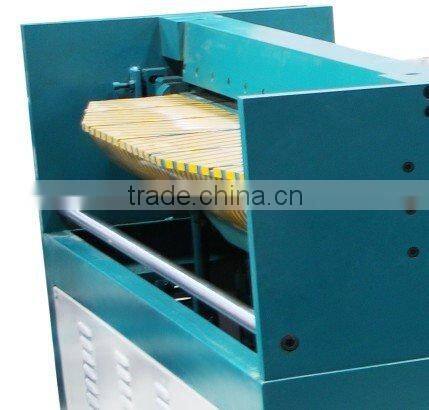

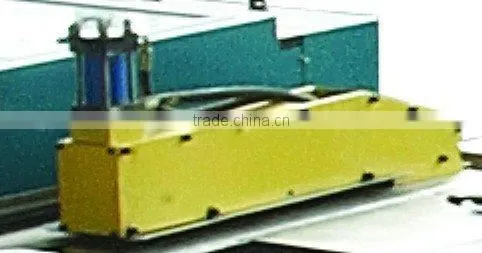

More Detailed Pictures:
