5-Axes Line Rail CNC Vertical Milling Machine for Consumer Electronics Parts Processing LV-1260
USD $37,500 - $72,000
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- SHANGHAI
- T/T
You May Like
-
SMT panasonic CM202-DS
-
vmc650 CNC machining center|CNC machining center 650
-
vmc850 CNC machining center|Vertical Machining Center
-
vmc650 CNC machining center|CNC machining center 650
-
Plastic product processing flame-retardant ABS mold production Plastic shell Plastic accessories Injection molding mold design
-
Manufacturer abs blow mold processing PP PE Injection mold construction processing large electronic product mold injection
Product Details
| Condition: | New | Type: | Vertical | Place of Origin: | Yunnan, China |
| Brand Name: | HHT | Model Number: | LV-1260 | Power(W): | 11KW |
| Dimension(L*W*H): | 3600*2900*2350mm | Weight: | 9000KG | Certification: | CE/ISO |
| Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The high efficieny ,three axis linear guideway CNC Vertical Machine center:LV-1260
1. Working table size:600*1300mm
2. X/Y/Z travel: 1200/600/700mm
3. Max. Load of working table: 670kg
4.Rapid speed: 8000mm/min
Main Description:
1. Besides having good function of spindle, more excellent ATC and the rapid travelse for machine high speed and efficiency.
2. Three axis adopt Taiwan PMI or Germany precision ball screw, by the wave in the heat treatment and precision grinding, imposing pretensioners to reduce distortion, repeat position accurracy is high.
Specification
| Specification of CNC vertical machining center | |||||
| Item Model | Unit | LV-650 | LV-850 | LV-1060 | LV-1260 |
| working tale size | mm | 450x700 | 550x1000 | 620x1200 | 600x1300 |
| X/Y/Z travel | mm | 650/460/400 | 800/500/500 | 1000/620/610 | 1200/600/700 |
| Distance between spindle end and table | mm | 150-610 | 160-660 | 120-730 | 160-860 |
| Distance between spindle center and column guide way | mm | 500 | 600 | 668 | 670 |
| Maximum weight of working table | kg | 350 | 600 | 1000 | 1000 |
| table-T-slot | mm | 3-14-150 | 5-18-100 | 5-18-130 | 5-22-107.5 |
| X/Y/Z axis rapid feed | mm/min | 36 | 36 | 36 | 24 |
| three axis working rapid speed | mm/min | 10000 | 10000 | 10000 | 10000 |
| X.Y.Z axis screw mandrel size | mm | 3216/3216/3616 | 4516/4516/4512 | 4012 | 5010 |
| X-axis rail size | mm | HGW30CA | MSA35E | LRXD45(Roller) | HGH55HC |
| Y-axis rail size | mm | HGH30CA | MSA45A | LRXD45(Roller) | HGH45HA(4 axis) |
| Z-axis rail size | HGH30CA | MSA35A | LRXD45(Roller) | HGH65HA | |
| arm type tools system | pcs | 20 | 24 | 24 | 24 |
| positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| repeat positioning accuracy | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| spindle speed | rpm | 8000 | 8000 | 8000 | 8000 |
| spindle taper | mm | BT40/150 | BT40/150 | BT40/150 | BT50/155 |
| control system | / | MITSUBISHI-M70VA/FANUC0i-mate-MD | |||
| torque force of spindle motor | nm/kw | 35/7.5 | 35/7.5 | 47.7/11 | 47.7/11 |
| torque force of X.Y.Z motor | nm | 13.7-47 | 13.7-47 | 20-50 | 20-50 |
| pneumatic source requirement | Kg/Cm2 | 6 | 6 | 6 | 6 |
| power consumption | kva | 18 | 20 | 25 | 25 |
| machine size | mm | 3000*2500*2680 | 3200*2600*2250 | 3500*2800*2250 | 3600*2900*2350 |
| machine weight | kg | 5200 | 5800 | 7800 | 9000 |
| We reserve the rights on the designing, colors,specification and termination of use of our products.Changes to these factors will not be notified. | |||||
Accessories of CNC vertical machining center: | |||||
| Standard accessories: | |||||
| Full closed guard | Spindle air blast | ||||
| Electrical box heater exchanger | Rigid tapping | ||||
| Belt drive | Program storage | ||||
| Cutting coolant unit | Automatic lubrication system | ||||
| Cutting air blowing device | Horizontal bolts and pads | ||||
| Griping arm type magazine 24pcs | Warning light of three color | ||||
| DNC computer transmission line | Operation maintenance Manual | ||||
| 3 axis Pretensioned Ball Screws | Spindle oil cooler | ||||
| Axis extend guard | Plug type hand wheel | ||||
| Explosion-proof work light | Tool box | ||||
| Special accessories: | |||||
| Rotary table | Spindle central water discharge | ||||
| Automatic tool length measurement system | Scraps conveyer | ||||
| Spindle speed:12000rpm | voltage stabilizer | ||||
| Spindle straight transfer speed:15000rpm | |||||
The Reasons for Choosing us:
1.Excellent after-sale-service
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
2. High quality
The main parts of our machines are imported from Japan, Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.

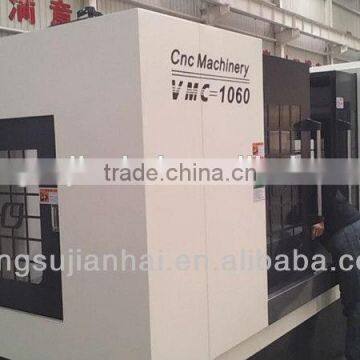

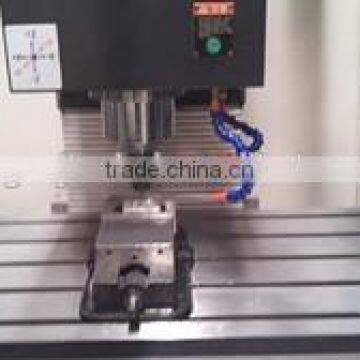

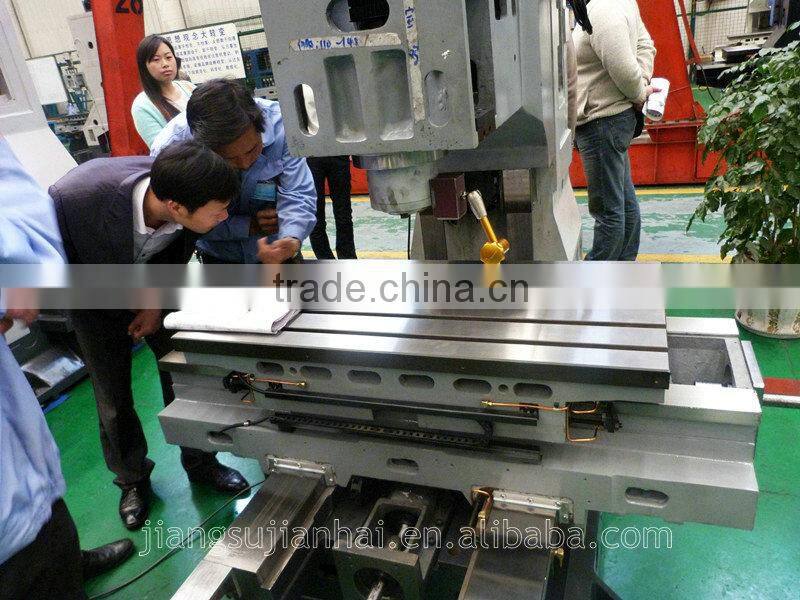

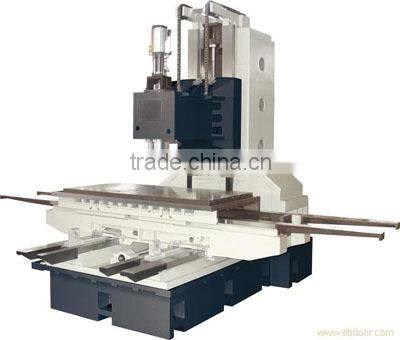

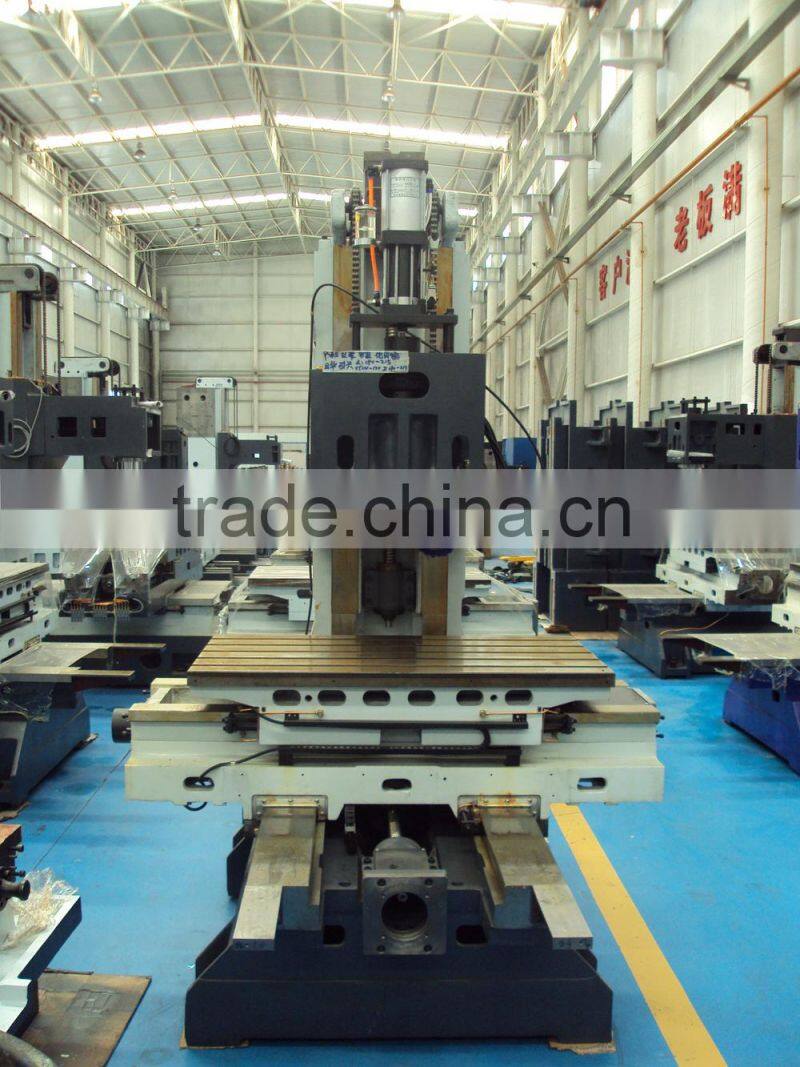

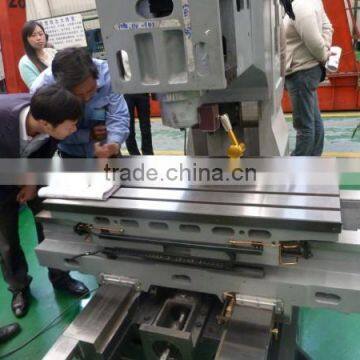

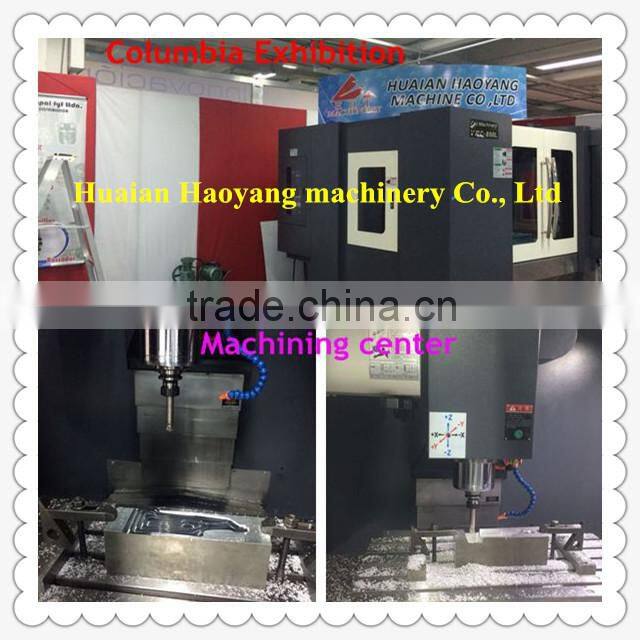

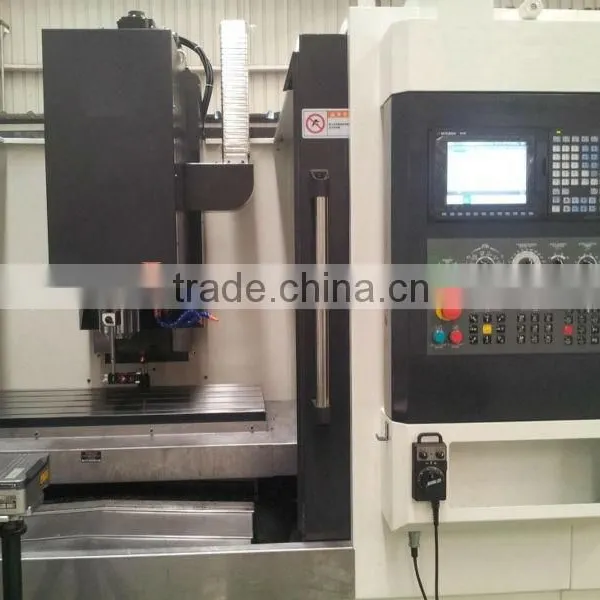

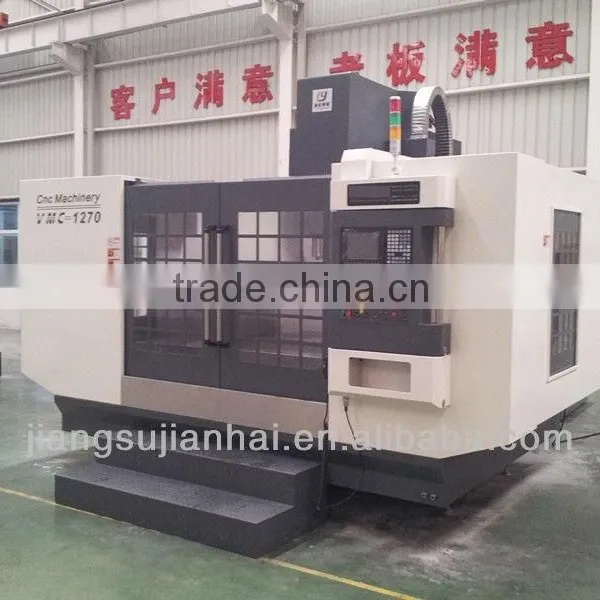

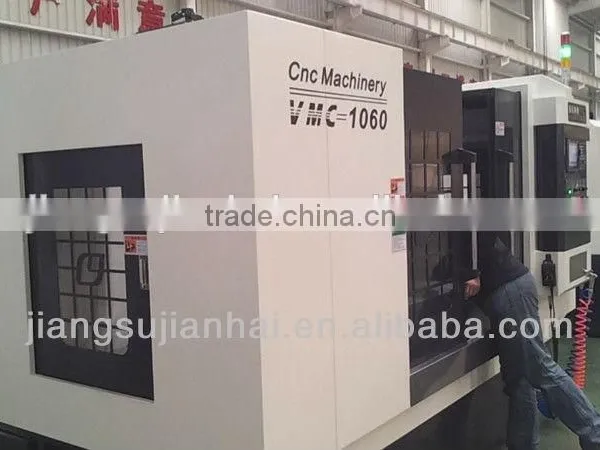

Machine Photos

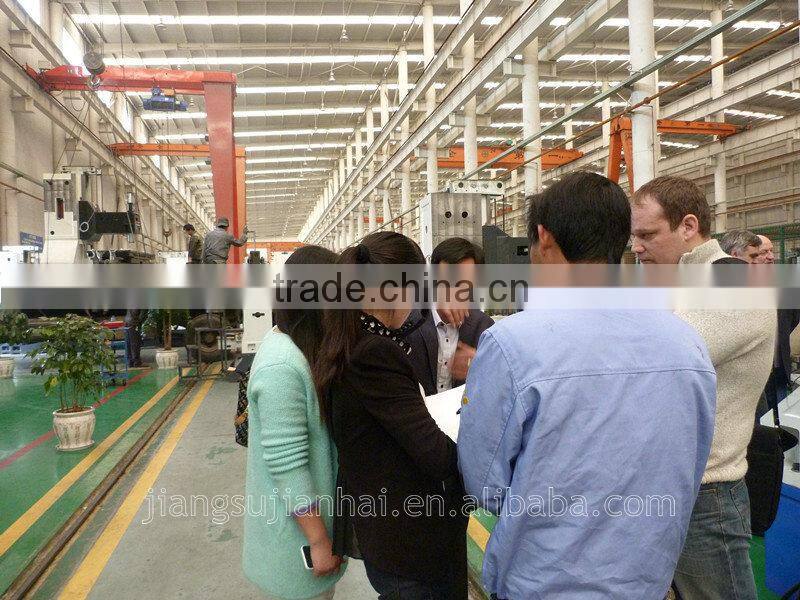

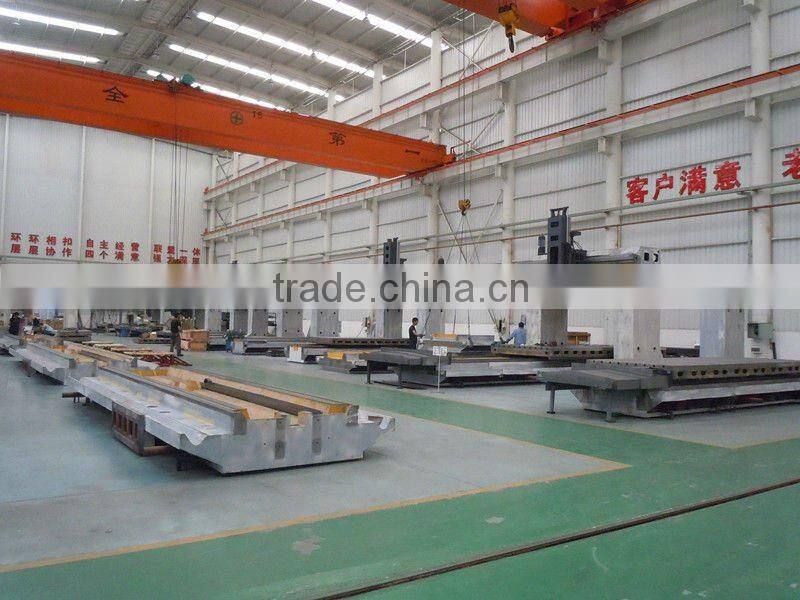

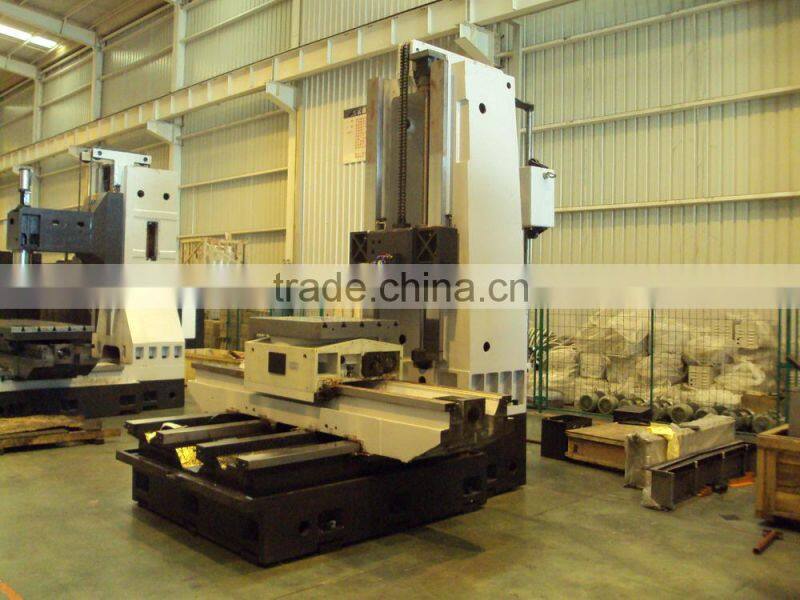

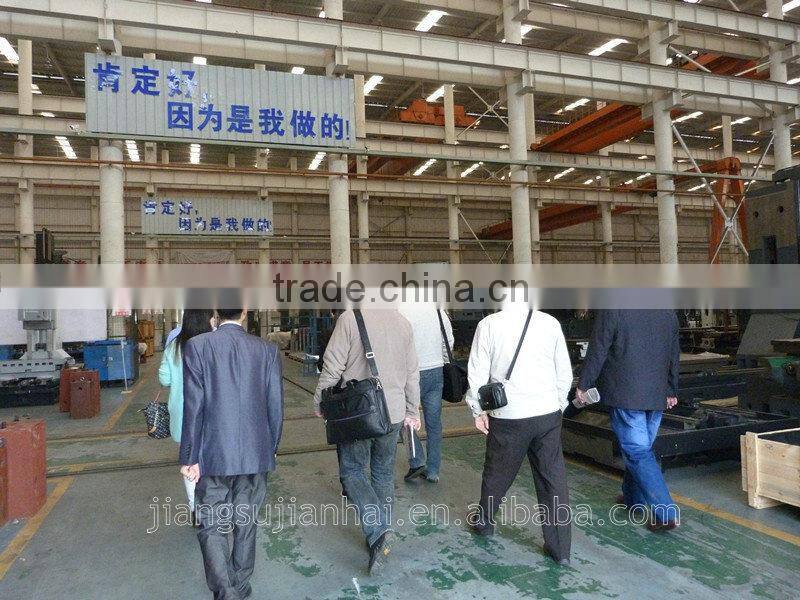

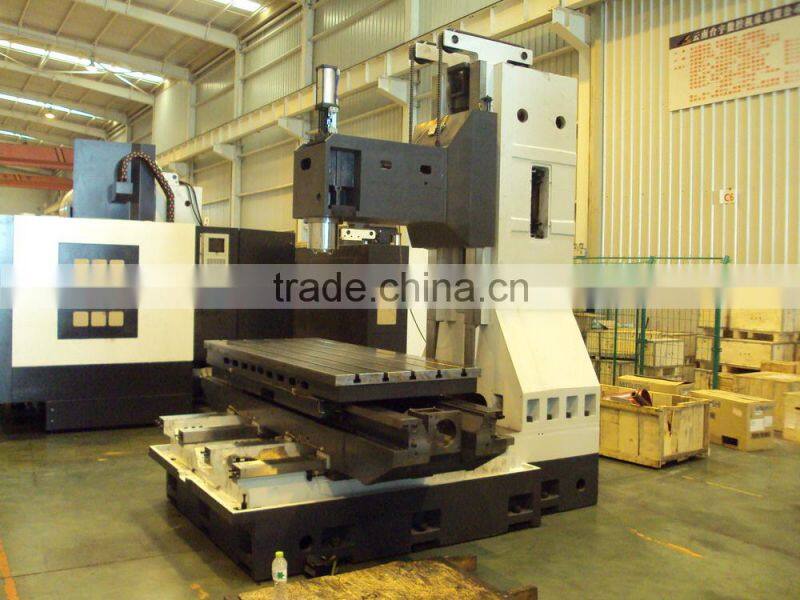

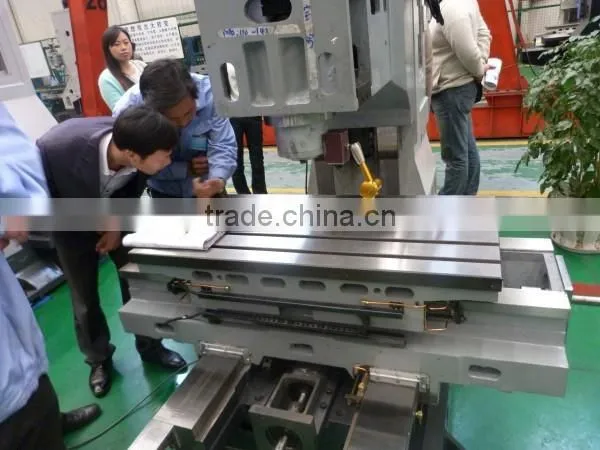

Pictures of our factory:
