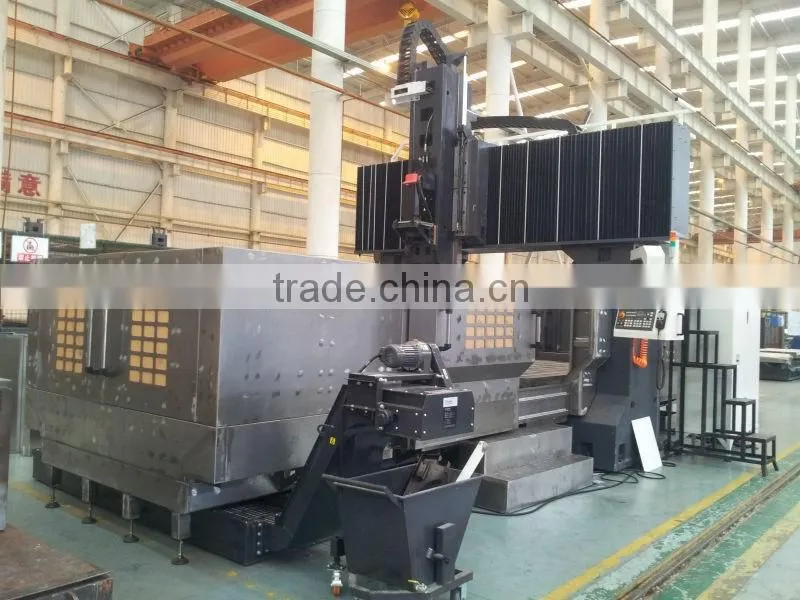

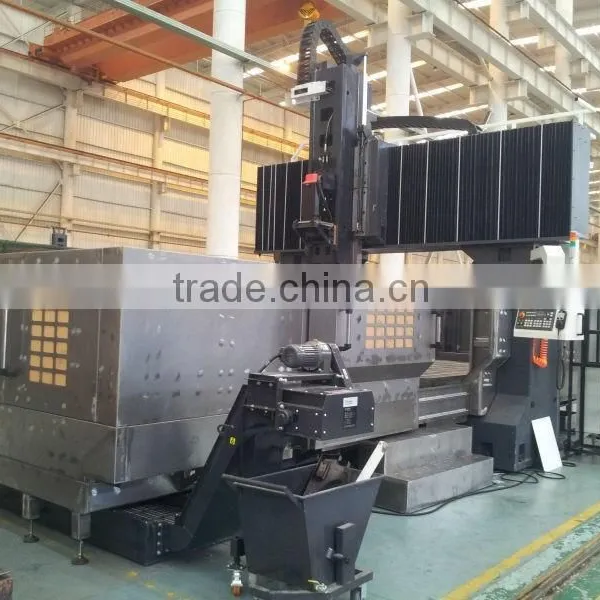

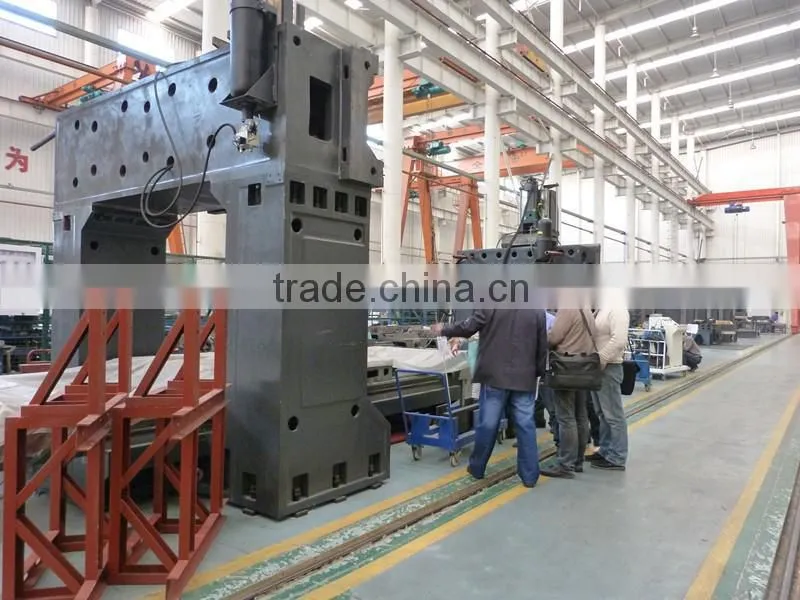

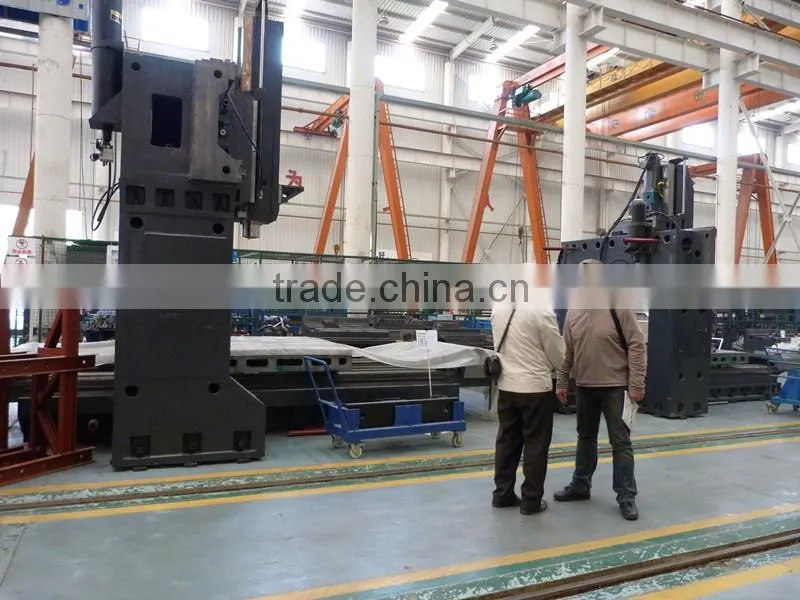

TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway

TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway thumbnail-1
TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway thumbnail-2
TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway thumbnail-3
TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway thumbnail-4
TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway photo-1
TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway photo-2

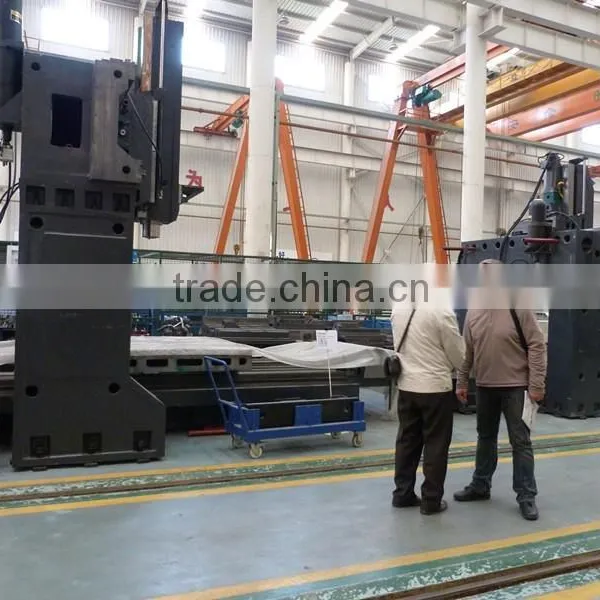

TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway photo-3

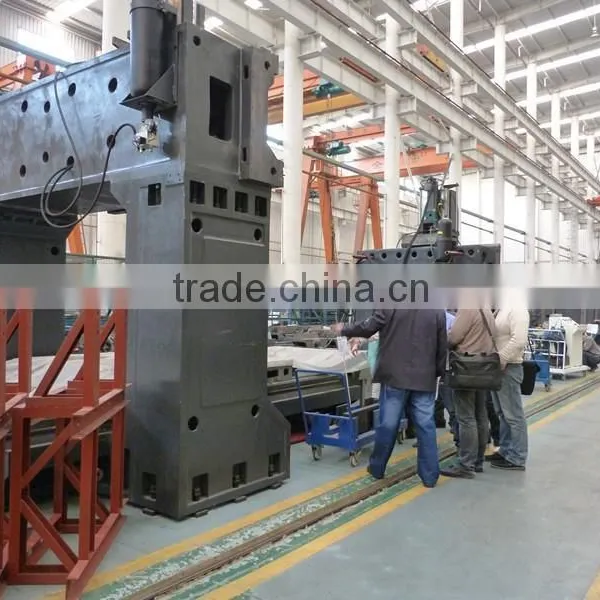

TY-SP2904B China CNC Gantry Milling Machine Heavy Roller Linear Guideway photo-4
US$ 280,000 - 360,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
Place of Origin:
Yunnan, China
Contact Supplier Request Quote Chat Now
Huaian Haoyang Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Vertical
Place of Origin Yunnan, China
Brand Name HHT
Model Number TY-SP2904B
Voltage 220~380v
Power(W) 22KW
Dimension(L*W*H) 55*56*110
Weight 44000KG
Certification CE/ISO
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Gantry type CNC Vertical Machine Center TY-SP2904B

1.Brand:HHT
2.Cert.:ISO,CE
3.Max.load:28000kg
4.Table size:2300*4000mm

5.X/Y/Z travel:4000/2900/1000mm

6.CNC controller:SIEMENS FANUC MITSUBISHI


Specification of Gantry type CNC Vertical Machine Center TY-SP2904B:



Item Model



Unit



TY-SP2904B (X axis three liner rails)
table size(WxL) mm 2300×4000
X-axis travel mm 4000
Y-axis travel mm 2900
Z-axis travel mm 1000
size of machine mm 2900
spindle nose to table mm 260~1260
table-T-slot mm 11-28×200
spindle taper mm BT50/Φ190
spindle gear rpm highest speed 3000rpm
spindle straight transfer rpm highest speed 4500rpm(ZF speed reducer can be added, reduction ratio 1:1; 4:1)
spindle belt drive milling head rpm highest speed 6000rpm, reduction ratio1.5:1 or 1:1(ZF speed reducer can be added, reduction ratio 1:1; 4:1)
XYZ-axis ball-screw size mm 8020x6316x5010
X-axis rail size mm X axis three heavy duty roller liner guides 55
Y-axis rail size mm Yaxis two heavy duty roller liner guides 55
Z-axis rail size mm rectangle slide rail
X/Y/Z axis rapid feed m/min 20x20x12
three axis working rapid speed mm/min 1-8000
positioning accuracy mm ±0.02
repeat positioning accuracy mm ±0.005
control system / MITSUBISHI/FANUC/SIEMENS
spindle motor kw 22
X-axis servo-actuator nm 40
Y-axis servo-actuator nm 30
Z-axis servo-actuator nm 40
pneumatic source requirement Kg/Cm2 6
table load capacity kgs 28000
power requests kva 45
weight(approx) kgs 44000

We reserve the rights on the designing, colors, specification and termination of use of our products. Changes to these factors will not be notified.
Standard accessaries Special accessaries
1,full closed guard(without top cover) 1, deep honing Coolant thru tool holder device
2,column postposition carrier 2,CNC rotatry table
3,Double oil hydraulic cylinder balance system 3,Electrical box air-conditioning device
4,Oil-water separator 4,Optical Scale ffedback system
5,Cutting fluid cooling system 5,High pressure coolant thru spindle
6,Double spirals type chip conveyer 6,Cutting fluid automatic system
7,Crawler type chip removal/ debris collector car 7,Automatic tool length measurement systems
8,Working light and daylightlamp 8,Automatic work-piece measurement systems
9,Program end alarm light 9,oil-pressure clamping auto 90°lateral milling head
10,water cannons and air gun for cleaning 10,oil-pressure clamping maunal 90°lateral milling head
11,Rigid tapping 11,lengthening milling head
12,RS232C port 12,gear type milling head
13,Portable hand wheel 13,milling head with five faces
14,Spindle cooling system 14,Erect milling head
15,Electrical box heat exchanger 15,manual Universal milling head
16,foundation pad and balance adjustment pad 16,straight transfer milling head
17,One set of tool and adjustment box 17,ZF speed reducer+straight transfer milling head
18,Operation and maintenance instructions
19,automatic power turn-off device
20,precision check report
21,System Operation and maintenance instructions
22,Outside varying voltage(220/380V)
23,Manual/program spindle debris device
24,Central lubricating system



Our Considerated Services:

a. Free installation and debugging

b. Free operator training

c. Free maintenance within 1 year

d. Long warranty and technology support



If you need more detailed information, please do not hesitate to call us. Or contact at Skype: kevin.8808
