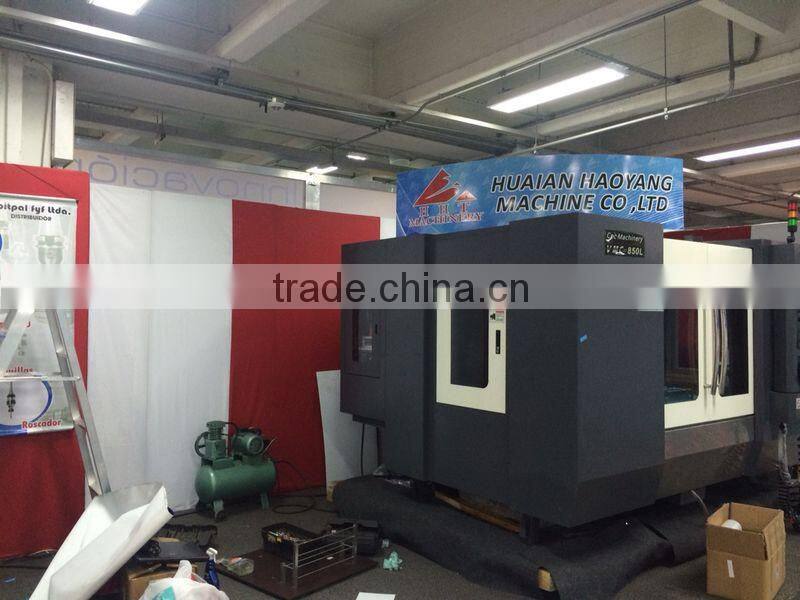

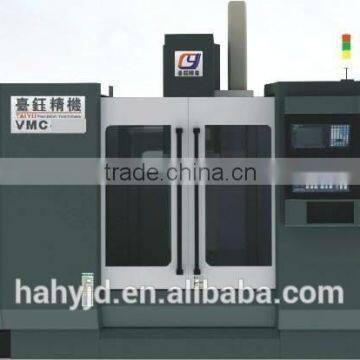

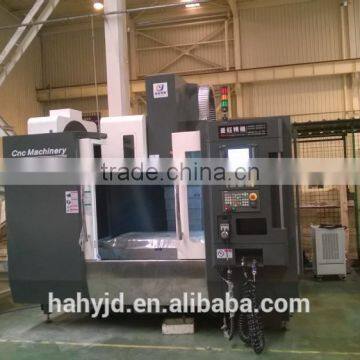

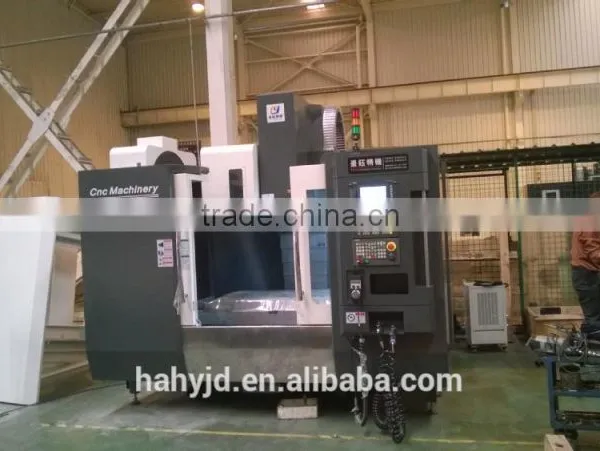

3-axies Hard Rail CNC Vertial Machine Center

Huaian Haoyang Machine Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Vertical

Place of Origin:

China

Payment & Shipping

Payment Methods:

Port of Shipment:

SHAGNHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Vertical

Place of Origin China

Brand Name HHT

Model Number VMC-650,VMC-850,VMC-855

Voltage 380V or as required

Certification ISO,CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Item Model	Unit	VMC-650	VMC-850	VMC-855
working tale size	mm	420x800	500X1000	520X1000
X/Y/Z travel	mm	650/400/480	800/500/600	800/500/700
Distance between spindle end and table	mm	80-560	110-700	110-800
Distance between spindle center and column guide way	mm	480	560	575
Maximum weight of working table	kg	600	600	600
table-T-slot	mm	3-18-135	3-18-150	5-18-100
X/Y/Z axis rapid feed	mm/min	18000	18000	18000
three axis working rapid speed	mm/min	8000	8000	8000
X.Y.Z axis screw mandrel size	mm	3206	4010	4010
positioning accuracy	mm	±0.005/300	±0.005/300	±0.005/300
repeat positioning accuracy	mm	±0.003	±0.003	±0.003
spindle speed	rpm	8000	8000	8000
spindle taper	mm	BT40/150	BT40/150	BT40/150
control system	/	MITSUBISHI-M70VA
torque force of spindle motor	nm/kw	35/7.5	35/7.5	35/7.5
torque force of X.Y.Z motor	nm	13.7-47	20-50	20-50
pneumatic source requirement	Kg/Cm2	6	6	6
power consumption	kva	18	20	20
machine size	mm	230020002500	255022002700	255022002700
machine weight	kg	4500	4800	5800
We reserve the rights on the designing, colors,specification and termination of use of our products. Changes to these factors will not be notified.
Standard accessories:
Full closed guard	Spindle air blast
Electrical box heater exchanger	Rigid tapping
Belt drive	Program storage
Cutting coolant unit	Automatic lubrication system
Cutting air blowing device	Horizontal bolts and pads
Axis extend guard	Explosion-proof work light
Operation maintenance Manual	Plug type hand wheel
DNC computer transmission line	Tool box
3 axis Pretensioned Ball Screws
Warning light of three color
