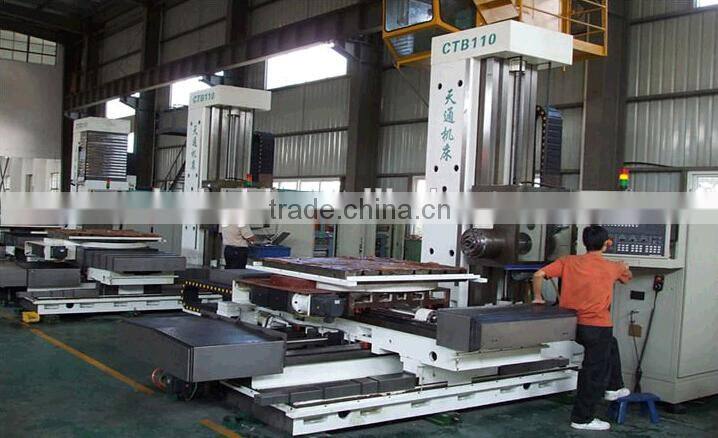

CNC table type horizontal boring and milling machine
- 400 Set / Sets per Month
- SHANGHAI
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | China |
Brand Name: | HHT | Model Number: | CTB110,CTB130 | Weight: | 28000,34000KG |
Certification: | ISO,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
cnc table type boring milling machine with rotatry table (CTB110/130mm)
1.Dia.110/130mm
2.SIEMENS/FANUC
3.with rotatry table
Type | cnc table type boring milling machine with rotatry table (CTB110/130mm) | ||
Specifications | CTB-110 | CTB-130 | |
Spindle diameter | 110mm | 130mm | |
Diameter of milling spindle | 210mm | 221.44mm | |
Spindle speed | 10-1000r/min | 10-1000r/min | |
Spindle taper | ISO 50 7:24 | ISO50 7:24 | |
Power of Spindle motor | 15/20.5KW | 18.5/17KW | |
Shank | MAS BT-50 | DIN69871A | |
Pull stud | LDA-50 | LDA-50 | |

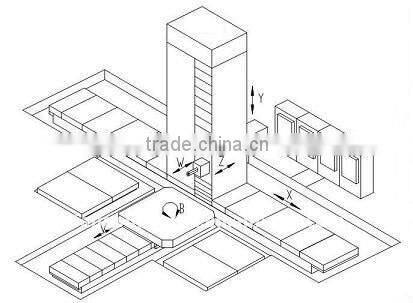

Transverse travel of table X | 1600mm | 1800mm (or 2000) | |
Vertical travel of spindle head Y | 1400mm | 1600mm | |
Longitudinal travel of table Z | 1200mm | 1400mm | |
Axial travel of spindle W | 600mm | 600mm (or 800) | |
Table rotation(any angle)B | 360° | 360° | |
Table size | 1200×1400mm(1400×1600) | 1400×1600mm | |
Max. load | 5000kg | 86000kg | |
Rapid traverse X, Y, Z W,U | 10000 8000mm/min 5000 1000mm/min | 10000 /8000 5000 /1000 | |
Rapid rotation | 2r/min | 2r/min | |
Feedrate X, Y, Z W,U | 1-5000mm/min 1-3000 1-500mm/min | 1-5000mm/min 1-3000 1-500 | |
Rotation rate B | 0.005-1.5r/min | 0.005-1.5r/min | |
Spindle torque | 1600Nm | 2200Nm | |
Torque of milling spindle | 2000N/m | 2800N/m | |
Feed resisting force X,Y,Z, W | 15000N | 20000N | |
Positioning accuracy X, Y, Z,W B | ±0.01 mm ±5 ″ | ±0.01 mm ±5 ″ | |
Repeatability X Y Z B | ±0.008mm ±3″ | ±0.008mm ±3″ | |
CNC system | 802(F0i) | 802(F0i) | |
Weight | 28000kg | 34000kg | |
|
|
|
|
1.After-sales service:
a. Free installation and debugging
b. Free operator training
c. Free maintenance within 1 year
d. Long warranty and technology support
2. Delivery Date: It will be confirmed when you make the order.
3. Payment Terms:
3.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
3.2. 30% deposit by TT before production and 70% L/C at sight before shipment;
3.3. 100% L/C at sight.
