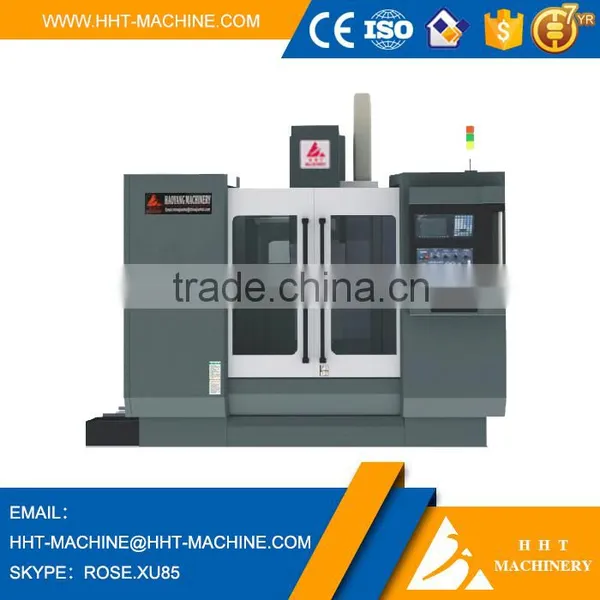

VMC 850 China New CNC Machining Center VMC-850
Main Introductions:
Vertical machining center
The vertical machining center is applicable to process small complex parts like plates, mold and box types. This machine is good at milling, boring, drilling, tapping and cutting.
5-axis machining center
5-axis machining center is high-tech, high-precision machining center which is specially used for machining complex curved surfaces, such as large impeller,cams 2D or 3D complex curved surfaces, aviation profiled structure and space air rudder structure. Suitable for precision machinery, aviation, military, scientific research, automobile, and high precision medical equipment, mold and other industries.
Specifications:
Specifications |
X/Y/Z AXIS HARD GUIDEWAYS |
||||||
Item Model |
Unit |
VMC-850 |
VMC-860 |
VMC-1060 |
VMC-1168 |
||
working tale size |
mm |
500*1000 |
530*1000 |
600*1300 |
650*1300 |
||
X/Y/Z travel |
mm |
800/500/550 |
800/500/680 |
1000/600/600 |
1100/600/750 |
||
Distance between spindle end and table |
mm |
105-655 |
110-800 |
180-780 |
110-860 |
||
Distance between spindle center and column guide way |
mm |
555 |
575 |
600 |
690 |
||
Maximum weight of working table |
kg |
600 |
600 |
800 |
1000 |
||
table-T-slot |
mm |
3-18-150 |
5-18-100 |
5-18-120 |
5-18-120 |
||
X/Y/Z axis rapid feed |
m/min |
20 |
20 |
20 |
18 |
||
three axis working rapid speed |
mm/min |
8000 |
8000 |
8000 |
8000 |
||
X.Y.Z axis screw mandrel size |
mm |
4010 |
4010 |
4010 |
4010 |
||
positioning accuracy |
mm |
±0.005/300 |
±0.005/300 |
±0.005/300 |
±0.005/300 |
||
repeat positioning accuracy |
mm |
±0.003 |
±0.003 |
±0.003 |
±0.003 |
||
spindle speed |
rpm |
8000 |
8000 |
8000 |
8000 |
||
spindle taper |
mm |
BT40/150 |
BT40/150 |
BT40/150 |
BT40/150 |
||
control system |
/ |
MISTUBISHI M70VA/SIEMENS 828D BASIC/FANUC0I-MD |
|||||
torque force of spindle motor |
nm/kw |
35/7.5 |
47.7/11 |
47.7/11 |
47.7/11 |
||
torque force of X.Y.Z motor |
nm |
13.7-47 |
13.7-47 |
20-50 |
20-50 |
||
pneumatic source requirement |
Kg/Cm2 |
6 |
6 |
6 |
6 |
||
power consumption |
kva |
20 |
18 |
25 |
25 |
||
machine size |
mm |
2550*2200*2550 |
2550*2300*2600 |
3100*2600*2680 |
3200*2500*2680 |
||
machine weight |
kg |
5000 |
5800 |
7800 |
8500 |
||
| Standard accessories: | Special accessories: | ||
| * Full closed guard | *Rotary table | ||
| * Electrical box heater exchanger | *Automatic tool length measurement system | ||
| * Belt drive | *Spindle oil cooler | ||
| * Cutting coolant unit | *Scraps conveyer | ||
| * Cutting air blowing device | *Spindle speed:10000/12000rpm | ||
| * Axis extend guard | *bamboo hat type tool magazine /Circular tool magazine | ||
| *Operation maintenance Manual | *Spindle central water discharge | ||
| * DNC computer transmission line | *voltage stabilizer | ||
| * 3 axis Pretensioned Ball Screws | |||
| *Warning light of three color | |||
| * Spindle air blast | |||
| * Rigid tapping | |||
| * Program storage | |||
| * Automatic lubrication system | |||
| * Horizontal bolts and pads | |||
| * Explosion-proof work light | |||
| * Plug type hand wheel | |||
| * Tool box | |||

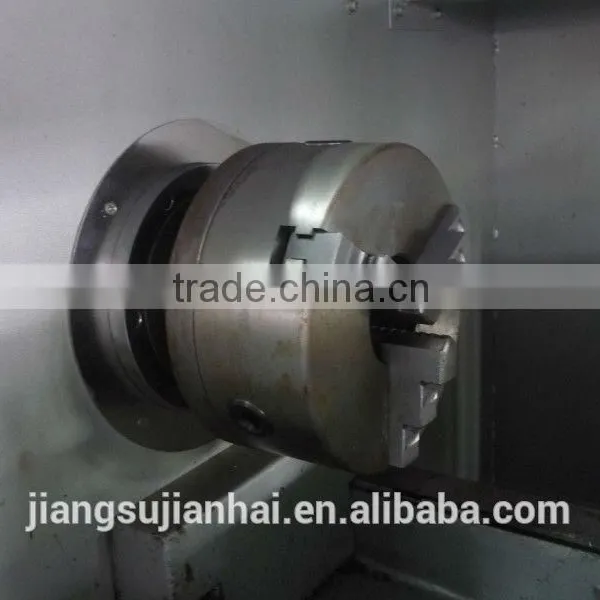

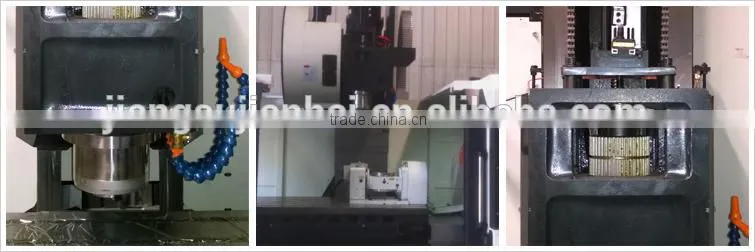

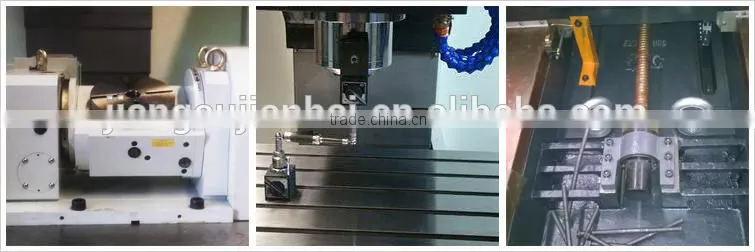

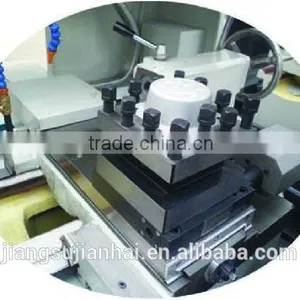

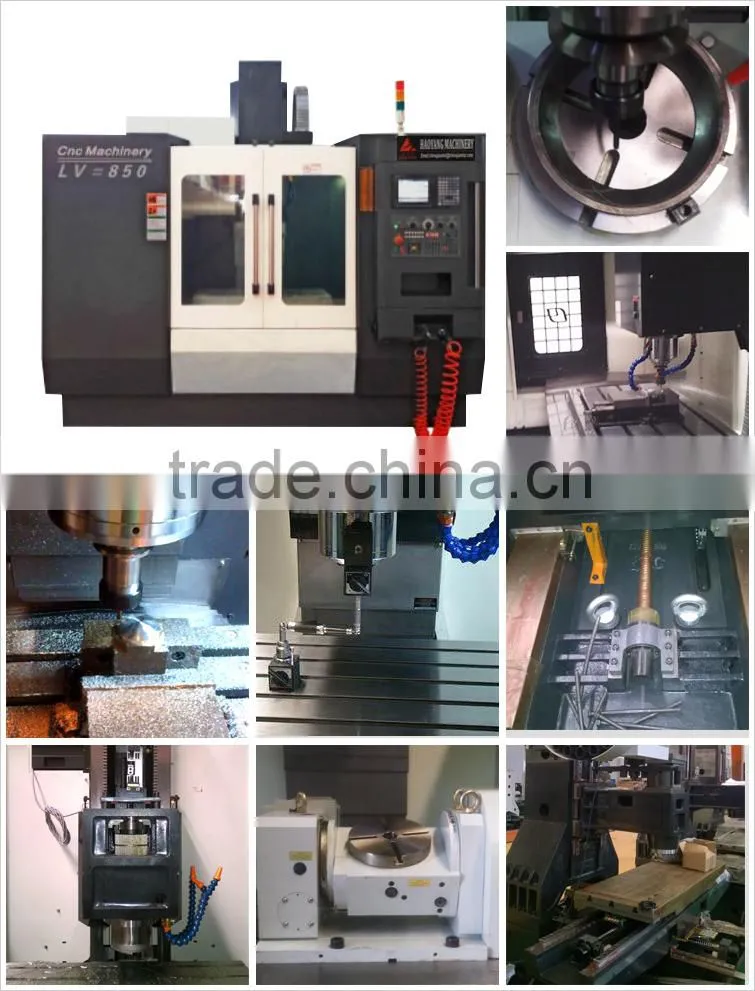

Reference Pictures:
Company Introduction&Logo:
HuaiAn HaoYang Machine CO.,Ltd is a 4s unity which consists of professional and high-quality companies,schools and research units.Our business covers the whole machine tool industy including mines, ironworks,casting,accessories machines manufacturing,assembly,sales,service and R&D design.
Our main products are: CNC lathe, CNC machine center,CNC gantry milling machine,CNC borning and milling machine,turret milling machine and so on.
Our Service:
The Other Matters:
1. Delivery Date:
It will be confirmed when you make the order.
2. Payment Terms:
2.1. 30% Deposit by TT before production and 70% payment by TT before shipment;
2.2.30% deposit by TT before production and 70% L/C at sight before shipment;
2.3.100% L/C at sight.]
Any questions or requirements from you are welcomed. Please contact us via phones or Skype:Julie 2120. And here is our website: https://img13.fr-trading.com
We Are At An Exhibition:

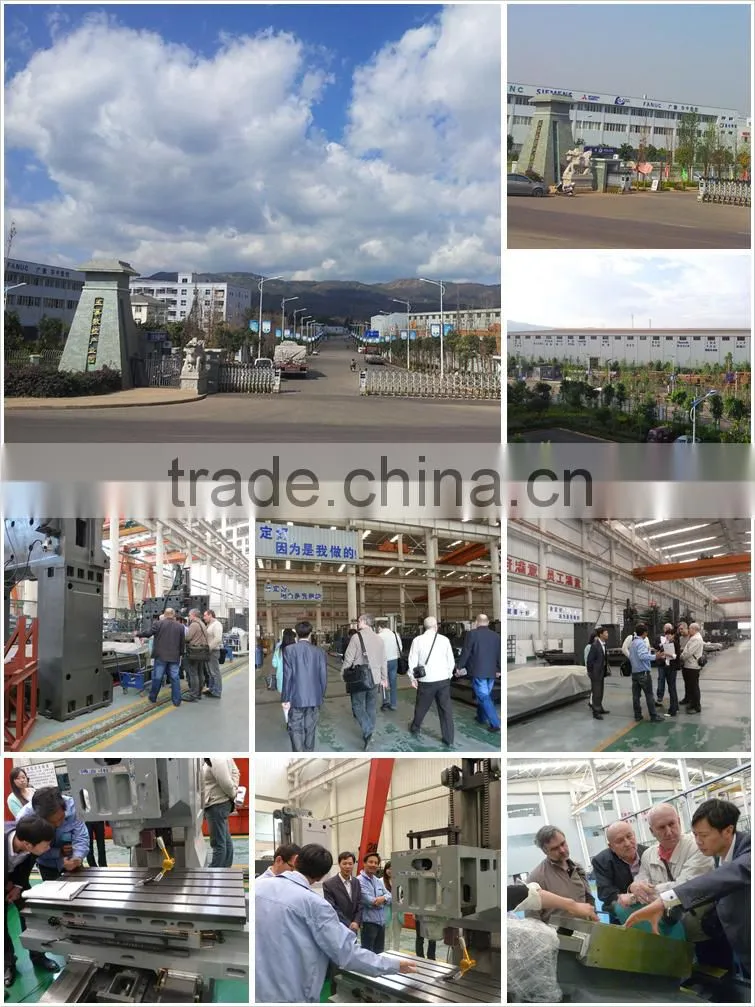

Our Factory Pictures:
Package Photo:
Looking for agents worldwide
With years of development, we have entered into international market and gain good reputation for our machines.
In order to expand our business and bring benefits to our customers as well, our company now is looking for agents worldwide. We have got the agent in Venezuela.
Our company will offer much support for our agents, like discounts for purchasing machines, financial support for taking part in exhibitions, technical support and so on.
And if you have any requirements, please let us know. We will try our best to meet your requirements.
We are looking forward to establish long-term business relationship with you!
