Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs

Name: Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs
Brand: Kingbird
SKU: 120938619
Availability: InStock

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs thumbnail-1

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs thumbnail-2

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs thumbnail-3

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs thumbnail-4

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs thumbnail-5

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs photo-1

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs photo-2

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs photo-3

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs photo-4

Wireless CDMA Data Logger Communicator With Rs232 Rs485 Serial, Diigital Inputs and Outputs photo-5

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Kingbird

Model Number:

KB3060

Contact Supplier Request Quote Chat Now

Shenzhen Kingbird Network Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Kingbird

Model Number KB3060

1 Brief Introduction

Wireless CDMA data logger communicator with rs232 rs485 serial, diigital inputs and outputs, KB3060 CDMA DTU (Data Terminal Unit) is wireless data transmitting terminal of CDMA and embedded with High reliable ARM7 CPU.

Based on the public net, KB3060 CDMA DTU data logger transmit widely, stably and reliably, KB3060 CDMA DTU data logger is widely used in unattended operation device, Remote AMR, remote data acquisition, remote AMR, remote scheduling and so on. Due to this product is designed for industry integrated, we adopt special designs in the temperature scope, shaking, EMC and interface multiform and so on, to keep it good stability in the severe atmosphere, ensure high quality for your device.

2 Product Feature

lStandard industrial products, EMC anti-jamming design, strong adaptiveness.

lIndependent research and developing, embedded 32 bit ARM7-CPU with real-time operating system.

lEmbedded Watchdog chip, provide multiple Reset mechanism, can be controlled by software, achieve industrial security mechanism perfectly.

lWorking Frequency adopt 800 MHz, compatible CDMA200 1X technology system.

lAdvanced and strict data communication protocol, with the function of correction and encryption. Never lose package when data transmission, can achieve pictures over than 100K and Flash animation files transmission, no Mosaic happened.

lVarious working mode: DTU (default) and Modem. DTU mode is CDMA data transmission which can get the data from device’s COM port (RS232/RS485/TTL) and transmit to the server in Internet. When set to Modem, compatible standard AT commands (GSM07.05 and 07.07). user can write AT command software to realize the function user need.

lVarious networking ways: KB3060 can network with NET Converter KB2000 and KB3060 (it is convenient to use CDMA without internet). This can achieve networking of point-to-point, center to multi-points.

lPlug and play: when work with KB2000 or KB3060 of our product, no need to develop any software and hardware, can build large SCADA system.

lAutomatical IP register mechanism, can achieve various server modes, build complete super large SCADA system..

lRemote sleep and awake: User can use appointed cell phone number to dial or send message can sleep or awake DTU, it is convenient for user to save a lot of CDMA Flow Fee when no need to use DTU.

lRemote modify DTU parameters: Support that SMS and data service center modify DTU parameters.

lIO switching valuefunction: Two channels input, two channels IO output. Remote control and reading. Alarm status threshold, automatic alarm signal report function.

lStrong communication backup function: Support automatic switching between main server and backup server, It will connect to backup server when main server has problem.

lStrong server software support, Application server software for many years, powerful and stable;

lSupport special APN, data center support fixed IP and DDNS.

lWorking temperature range: -30°C-75°C,communication is not effected at -30°C.

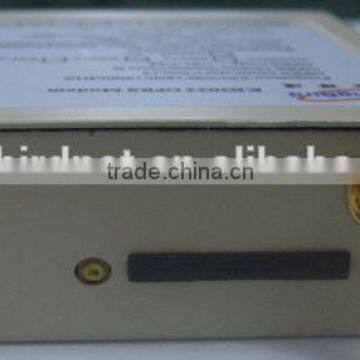

3 Appearance and Interface

KB3060 CDMAS DTU has three physical interfaces:

. The first is 10 pins main interface: RS232/RS485/TTL (5V)/CMOS (3.3V), Power supply

. The second is SMA RF interface: For the antenna

. The third is embed SIM socket: For SIM card

. Size: 82mm(L)*59mm(W)*25.2mm(H)

. Weight: 200g(without Antenna, Data wire)

4 Technical Specification

4.1 CDMA:

Frequency Band: 800 MHz

Output Power: 30mA/5V

Sensitivity: <-104dBm

Compatible standard AT command(GSM07.05 and 07.07)

Support extend command

Support SMS, CSD, FTP, DTMF

Embed TCP/IP Protocol

4.2 Basic Function:

Embed TCP/IP Protocol

Embed standard AT command(GSM07.05 and 07.07)

Support extend command

Support SMS,CSD,FTP,DTMF

Transparent data transmitting

Support IP address or domain name

Support special APN

4.3 Electric Specificity

Work Voltage: 5V~16V DC (7-60V can be custom made)

Power:

Standby: < 30mA@5V

Communicating: < 230mA@5V

Peak point current: 1.5A@5V

4.4 Circumstances Specificity

Working Temperature: -30°C~75°C

Storage Temperature: -40°C~80°C

Relative Humidity: 20%~ 95%(No Condensation)

5 Unpack

For transportation safety, usually KB3060 CDMA DTU needs reasonable packaging, when you please keep unpacking packaging materials used for future need transshipment. KB3060 CDMA DTU includes the following parts:

KB3060 CDMA DTU 1Unit (Packaging depend on order quantity)

Electronic instructions (CD-ROM) 1 copy

Small chuck antenna or club-shaped antenna (SMA interface) 1 root

5V / 2A industrial power adapter 1

KB3060 special cable 1

When unpacking the case, check the specific items according to the packing of user's ordering contract.

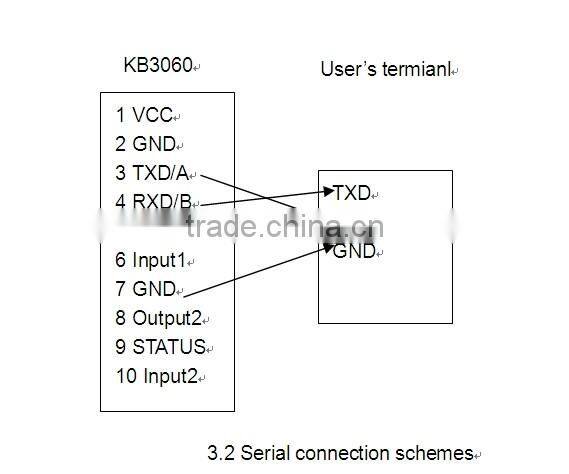

6 Serial cable connection

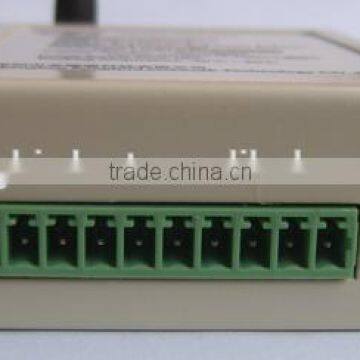

KB3060 user data interface cable connectors is green connectors, spacing: 3.5 mm, 10Pin.

FAQ

Q: Why choose Kingbird? Any advantages?
A: The answer is Yes. Advantages as below:

(1) MAIN ADVANTAGE: We have our own server with static IP compared with most other suppliers, in order to ensure data transmission stability.

(2) MUTUAL BENEFIT: Our offer will be reasonable, our price will be cheaper in the same quality.

(3) TECHNOLOGY SUPPORT: All product and software design and product by ourselves, we can provide more professional service and technology support.

(4) AFTER SERVICE:Three gurantees of quality: gurantee of return (one month), gurantee of replacement (three month), gurantee of repair (one year), lifetime maintenance.
Q: Can I order one piece for sample to test the quality?
A: Yes, We recommend to check the sample before order. MOQ: 1 pcs.

Q: If I want special functions, can you produce?

A: Yes, just send us your requirement details, we have our professional R&D team to make customer-designed product for you.

Q: If I order big quantity, what's the good price?

A: Please send the details enquiry to us, such as the Item Number, Quantity for each item, Quality request, Logo, Payment Terms, Transport method, Discharge place etc. We will make the accurate quotation to you as soon as possible.
