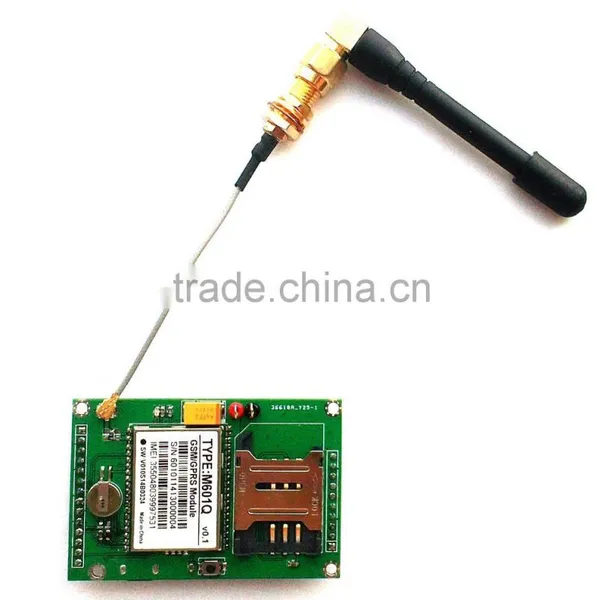

China Best SCADA system/PLC/meter reading, KB3030-K gprs gsm modem
High light:
• Low price, High quality !!!
• OPENAL: Support to write program by yourself !!!
• Support wirless remote update program, you can update DTU program via
server FTP !!!
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
VCC |
GND |
UTXD/A |
URXD/B |
Output1 |
Input1 |
UGND |
Output2 |
Status |
SW |
Product Features
• Standard industrial products, EMC anti-jamming design, strong adaptiveness.
• Independent research and developing.
• Embedded Watchdog chip, provide multiple Reset mechanism, can be controlled by software.
• Support wirless remote update program, you can update DTU program via server FTP.
• Working Frequency adopt 850MHz/900MHz/1800MHz/1900MHz.
• Advanced and strict data communication protocol, with the function of correction and encryption.
• Various working mode: DTU (default), Modem, SMS Modem.
• DTU and SMS Modem can switch through User configuration software and also can change the working modem through IO port.
• Plug and play: no need to develop any software and hardware, can build large SCADA system.
• Automatical IP register mechanism.
• Remote sleep and awake.
• Remote modify DTU parameters.
• IO switching value function.
• Powerful communication backup function.
• Strong server software support, application for many years, strong function.
• Support fixed IP and DDNS, dedicated APN.
• Support up to four servers synchronizztion function.
• Supports up to 20 SMS control noumber.
GSM/GPRS:
Frequency Band: GSM850MHz/EGSM900MHz/DCS1800MHz/PCS1900MHz
GPRS Multi-slot Class 12
GPRS Mobile Station Class B
GPRS Coding: CS1~CS4
Output Power: Class 4 (2W) at GSM850MHz and GSM900MHz
Class 1 (1W) at DCS1800MHz and PCS1900MHz
Sensitivity: <-107 dBm (typ.) at GSM850 MHz <-107 dBm (typ.) at GSM900 MHz <-107 dBm (typ.) at DCS1800MHz <-107 dBm (typ.) at PCS1900MHz
Compatible standard AT command(GSM07.05 and 07.07)
Support extend command
Support SMS,USSD,CSD
Embed TCP/IP Protocol
Basic Function:
Embed TCP/IP Protocol
Embed standard AT command(GSM07.05 and 07.07)
Support extend command
Support SMS,USSD,CSD
Transparent data transmitting
Support IP address or domain name
Support special APN
