Hot air BGA rework station, repairing and welding machine
Features:
Laser Assist position system,
Integrated high precisely digital solderingiron.
USB 2.0 connect, can be controlled by mouse.
HD touch screen interface, PLC control.
Three independent heatersall can set 8 segments heating, cooling and constanttemperature, saved temperature profile is unlimited. IR preheat area can be controlledaccording to PCB size
K-sensorcloseloopcontrolandautomatictemperaturecompensationsystem.Itcombineswithtemperaturemodule,whichenablestemperature accuracy to ±3°C
Moveable heater, easy to operate.
Hot air nozzles,360 degree rotation, easy to install and replace, customized is available.
V-groove PCB supportfor rapid, convenience and accurate positioning that fits for all kindsof PCB board
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it fromdeformation.
Sound hint system. There is an alarm before thecompletion of each desoldering andsoldering.
CE certification,with emergency switch and automatic power-off protection device whenemergency happens
Three years warranty(Two years longer than other companies), free life-long technicalsupport
Specification:
Power | 4500W |
Top heater | Hot air 800W |
Bottom heater Iron heater | Hot air 1200W, Infrared 2400W 90w |
Power supply | AC220V±10% 50/60Hz |
Dimension | L535*W650*H600mm |
Positioning | V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control | K type thermocouple, closed loop control, independent heating |
Temp accuracy | ±. degrees |
PCB size | Max 355*335mm Min 50*50 mm |
BGA chip | 2*2-80*80mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1(optional) |
Net weight | 30kg |

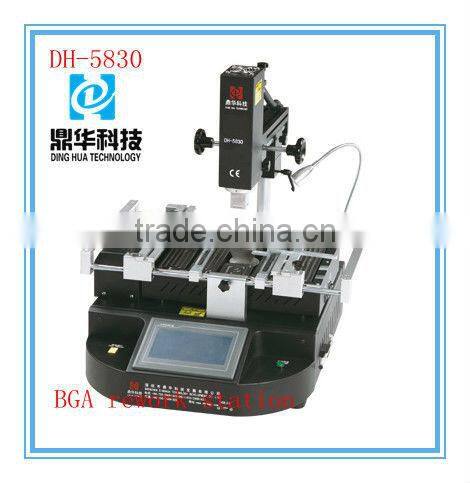

Whole structure of BGA repair station DH-5830

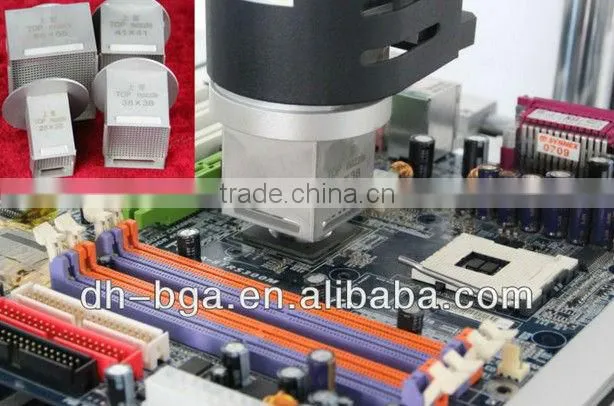

Hot air nozzles:

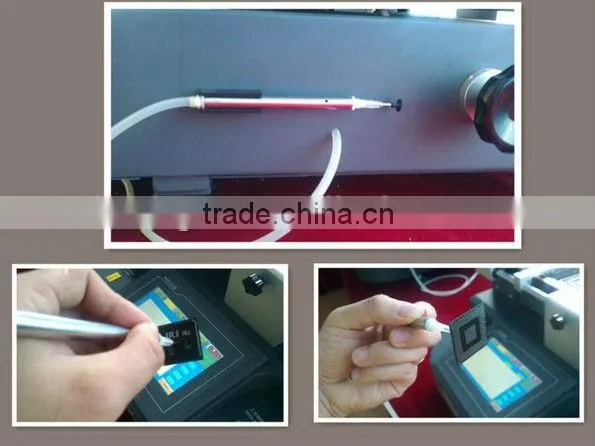

Vocuum pen for handling BGA chip:
Packing:

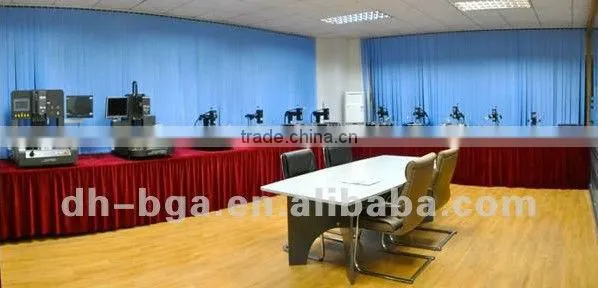

About our factory:

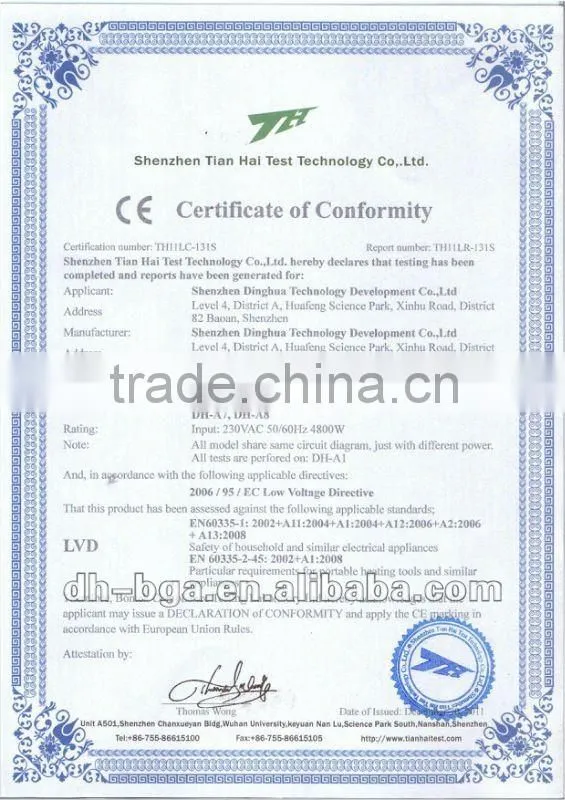

Certificate:
