Best quality auto bga reballing rework station for mobile phone small chips

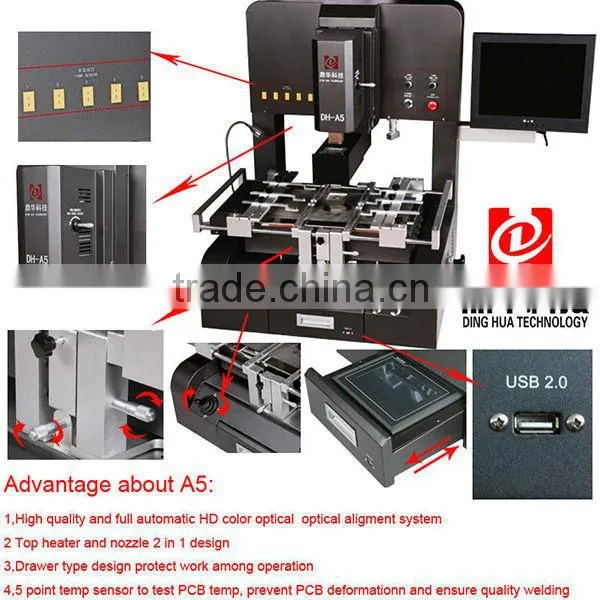

Product show:
Accessories:
Specification:
| Product name | IR reballing kit |
| Total power | 6700W |
| Top hot air heating | 1200W |
| bottom heating | bottom hot air heating 1200W, IR preheating 3900W |
| Power | 220V, 50/60HZ |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in X,Y direction and equipped with the external universal fixture |
| PCB size | min 22x22mm, max 450x490mm |
| BGA chips | 2x2mm-80x80mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 5(optional) |
| N.W. | 112kg |
| Dimension | 70x90x95cm |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game comsole,etc |
| Features |
1.CCD camera optical alignment 2.automatic 3.laser positioning 4.PLC control 5.Temperature accuracy |
| Accessories |
-1 piece user guide -1 piece CD -1 piece LCD display -1 piece brush -5 piece temperature sensor -5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size -1 set of vacuum slot including 4 sizes -3 pcs vacuum sucker -6 pcs universal fixture -6 pcs plug knob -4 pcs supporting screw |
Main feature:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degC. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface.
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control.
8.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
9.High precision digital video registration system, rocker control.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens
Packing:
Our factory:
Welcome you to visit our factory:
CE and ISO9001 Certificate:
Payment:
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Shipping:
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. The delivery date is within 7 days after the receipt of payment.
Warranty:
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
Feedback from our customers:
