Specifications
1. Hot sale DH-A01 BGA rework station2. 2 independent heating zones
3. PLC control
4. Powerful cross flow fan

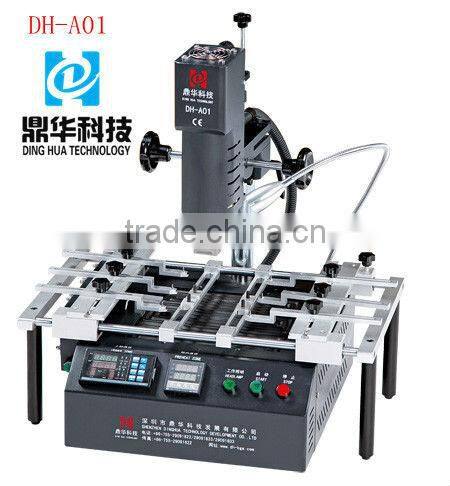

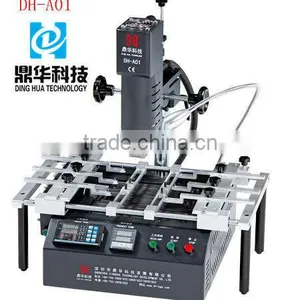

Hot sale DH-A01 BGA rework station
Features:
1. Two independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
2. K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
3. Moveable heater, easy to operate.
4. Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
5. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
6. Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
7. Sound hint system. There is an alarm before the completion of each desoldering and soldering.
8. CE certification, with emergency switch and automatic power-off protection device when emergency happens
9. Three years warranty for the heating system, one year for the whole machine(Two years longer than other companies), free life-long technical support
Specification:
| Power supply | AC220V±10% 50/60Hz |
| Power | 2600W |
| Top heater | Hot air 800W |
| Bottom heater | IR Preheating area 1800w |
| Positioning | V-groove, PCB support can be adjusted in X,Y direction with external universal fixture |
| Temperature control | K-sensor closed loop control, independent heating |
| Temp accuracy | ±2°C |
| PCB size | Max 300mm*300mm Min20mm*20mm |
| BGA chip | 5*5~55*55mm |
| Minimum chip spacing | 0.15mm |
| Machine dimension | (L*W*H): 470*400*450mm |
| Packing dimension | (L*W*H): 48*41*53cm |
| NW/GW | 14/21KG |
Whole structure of BGA repair station DH-A01
Spare parts:
Packing:
About our factory:
Certificate:
