Specifications
1. Infrared BGA rework station welding machine2. 2 independent heating zones
3. CE certificate
4. PLC control
Infrared BGA rework station welding machine
Specification:
Power supply |
AC220V±10% 50/60Hz |
Power |
2600W |
Top heater |
Hot air 800W |
Bottom heater |
IR Preheating area 1800w |
Positioning |
V-groove, PCB support can be adjusted in X,Y direction with external universal fixture |
Temperature control |
K-sensor closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 300mm*300mm Min20mm*20mm |
BGA chip |
5*5~55*55mm |
Minimum chip spacing |
0.15mm |
Machine dimension |
(L*W*H): 470*400*450mm |
Packing dimension |
(L*W*H): 48*41*53cm |
NW/GW |
14/21KG |
A01 Main Features:
1. Two independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
2. K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
3. Moveable heater, easy to operate.
4. Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
5. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

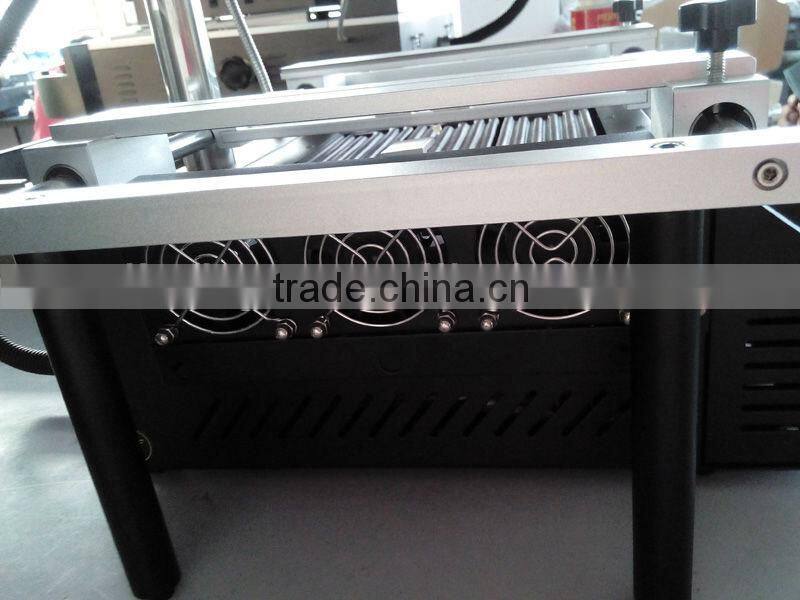

6. Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
7. Sound hint system. There is an alarm before the completion of each desoldering and soldering.
8. CE certification, with emergency switch and automatic power-off protection device when emergency happens
9. Three years warranty for the heating system, one year for the whole machine(Two years longer than other companies), free life-long technical support

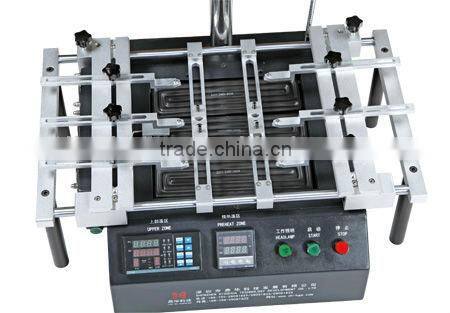

Whole structure of BGA repair station DH-A01
Hot air nozzles:
Vocuum pen for handling BGA chip:
Packing details:
About our factory:
Advantage:
1. We're the professional BGA rework station manufacturer.
2. As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms,this is a big difference between 10ms and 30ms. That’s why our machine is more accurate.
3. Fast delivery via FedEx, DHL, UPS, EMS, TNT and so on. The goods can be ready in 7 days after the receipt of the payment.
4. Payment terms: Western Union, T/T, L/C, PayPal. Please choose your most convenient one.
After-sales service:
We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
Certificates:
Should you have any request and question, please feel free to tell me. You inquiry will get our quick attention. Thank you!
