Home > Industrial Equipment & Components > Welding & Soldering Supplies > Other Welding & Soldering Supplies > DH-A3,bga Rework Station,surface Mount,hakko Welding Equipment,sales Promotion

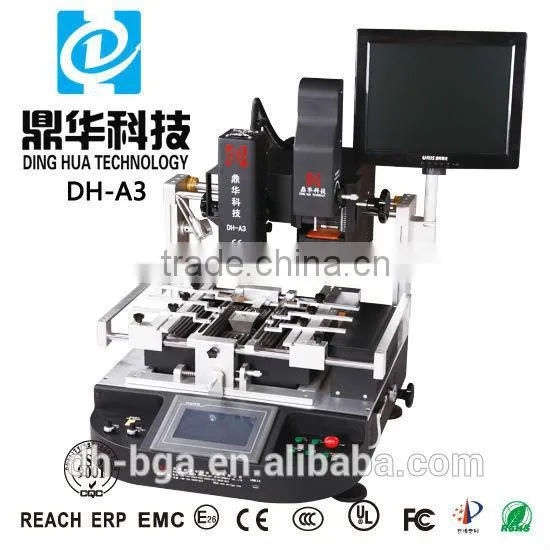

DH-A3,bga Rework Station,surface Mount,hakko Welding Equipment,sales Promotion
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dinghua
Model Number:
DH-A3
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Cost Bga Machine Bga Reflow Machine Repair Laptop Bga MachineUS$ 4,100 - 5,000MOQ: 1 Piece -
HD Touch Screen Professional Mobile Phone Repair Station Reflow Soldering Bga Reballing MachineUS$ 4,100 - 5,000MOQ: 1 Piece
-
Infrared BGA Station SolderingUS$ 1 - 7,000MOQ: 1 Piece
-
Bga Rework Station/System/Solution For PCB ChipsNegotiableMOQ: 1 Piece
-
High Auto BGA Rework Station/ BGA Chips Repair MachineUS$ 1 - 7,000MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Dinghua
Model Number
DH-A3
Specifications:
Total Power |
6500W |
Top heater |
1200W |
Bottom heater |
2nd heater 1200W, 3rd heater 3900W |
Power |
AC220V±10%, 110V±10%.50/60Hz |
Dimensions |
L800×W900×H950 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop controlled, independent heating |
Temp accuracy |
±2°C |
Camera magnification |
10x-100x |
DH-A3 main features
- Three independent heaters (top heater, bottom heater and infrared heater zoon) the top heater and bottom heater is for heating the BGA chip, the infrared heater is for heating the whole PCB, so it can protect the PCB from uneven heating.
- HD touch screen interface, PLC control
- HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
- K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
- Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
- V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
- Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
- Sound hint system. There is an alarm before the completion of each desoldering and soldering.
- CE certification, with emergency switch and automatic power-off protection device when emergency happen
Company profile
Certificate
chips below can be repaired
This BGA rework machine with 3 years warranty , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2011
Factory Size
1,000-3,000 square meters
Annual Export Value
US$2.5 Million - US$5 Million
