Help CenterHigh Automatical Optical Alignment BGA Rework Station DH-A01
Related Products
-
Simple Weldering Machine/ BGA Rework Station DH-A01NegotiableMOQ: 1 Piece -
BGA Rework Station, Soldering Machine, Mobile Phone Repair MachineUS$ 399 - 599MOQ: 1 Piece
-
BGA Reballing Machine Hot Air and Infrared BGA Rework Station Bga Equipment for Laptop Desktop Ps3US$ 399 - 599MOQ: 1 Piece
-
HOT Seller! Computer Repair Tools DH-A01 Bga WelderUS$ 399 - 599MOQ: 1 Piece
-
DH-A01 Bga Rework Station for Laptop Xbox Ps3 Mobile Phone Motherboard With 3 Years WarrantyUS$ 399 - 599MOQ: 1 Piece
Specifications
1. High Automatical optical alignment BGA Rework Station2. 3 independent heating zones
3. PLC control
4. CE certificate

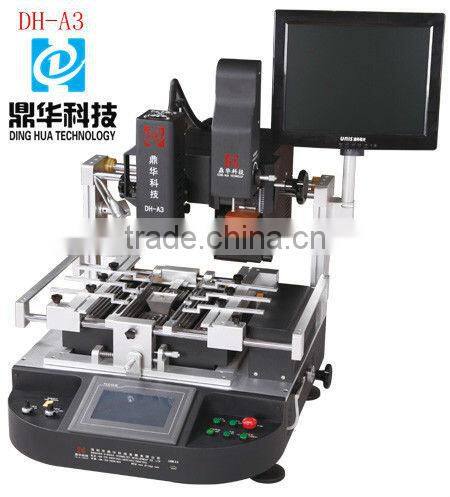

High Automatical optical alignment BGA Rework Station DH-A3
Features:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degC. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface.
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control.
8.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
9.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
10.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Specification:
Power supply |
AC220V±10% 50/60Hz |
Power |
6500W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 3900W |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K sensor closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Placement Accuracy |
±0.01MM |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Machine dimension |
(L*W*H): 670*770*750mm |
Packing dimension |
(L*W*H): 80*90*90cm |
NW/GW |
78/98 KG |
Whole structure of BGA repair station DH-A3
