Specifications
1.CCD camera optical alignment2.Laser postioning
3.cheap price BGA rework station
4.temperature accuracy
5.IC chips repair

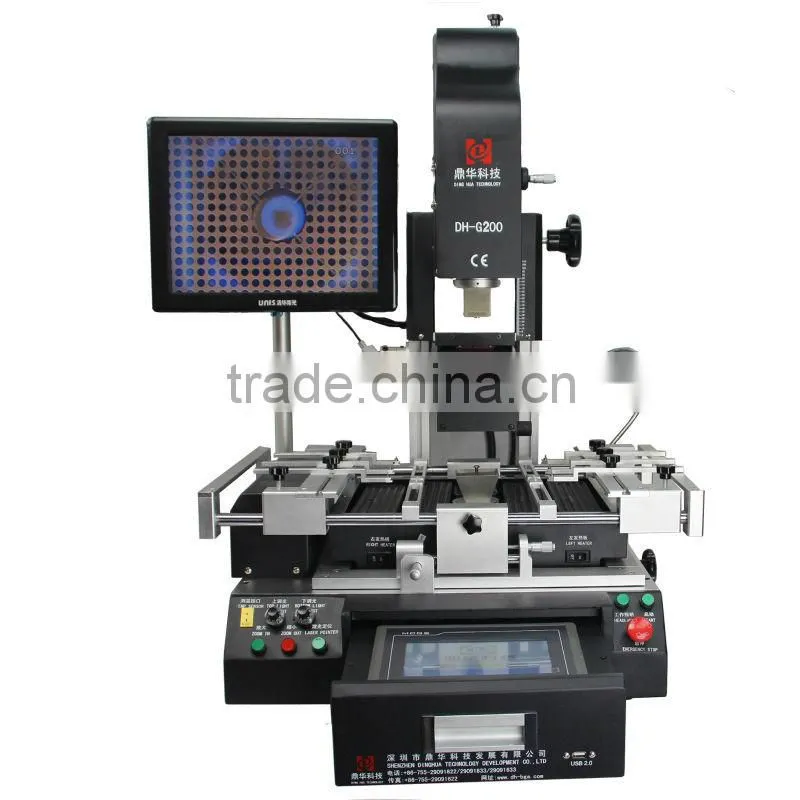

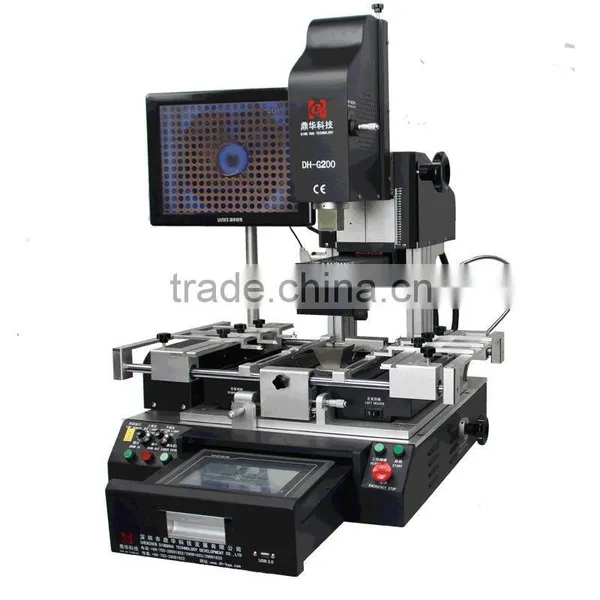

New design CCD camera optical alignment BGA rework station
Prodcut show

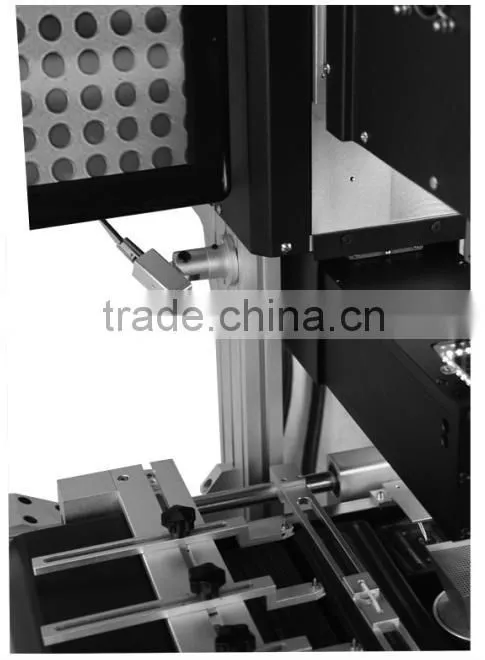

Laser positioning

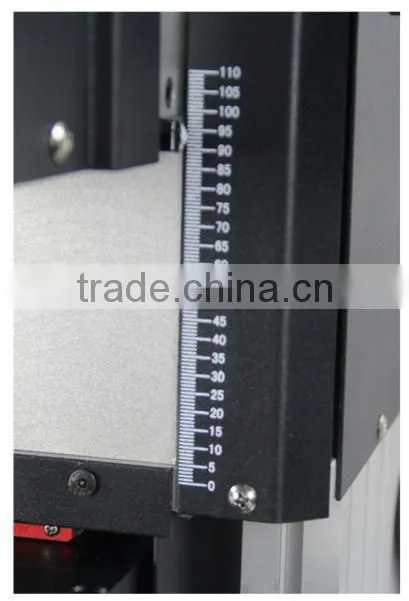

Scaleplate

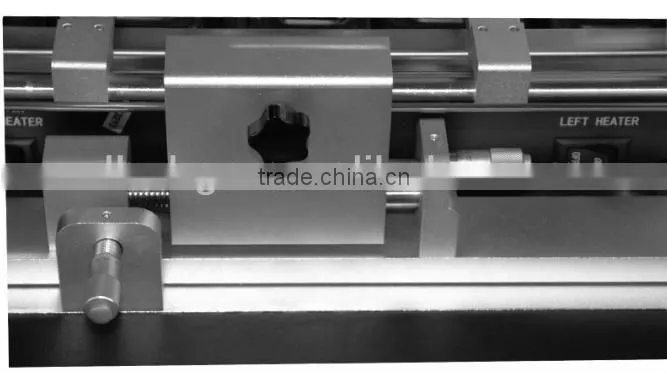

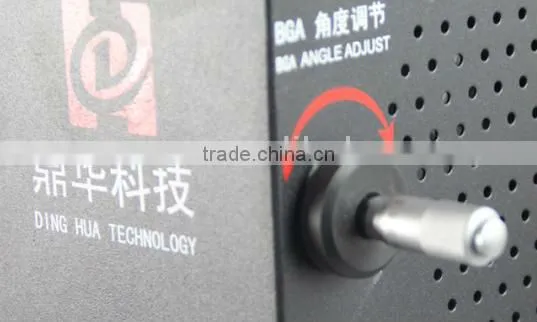

Micrometer

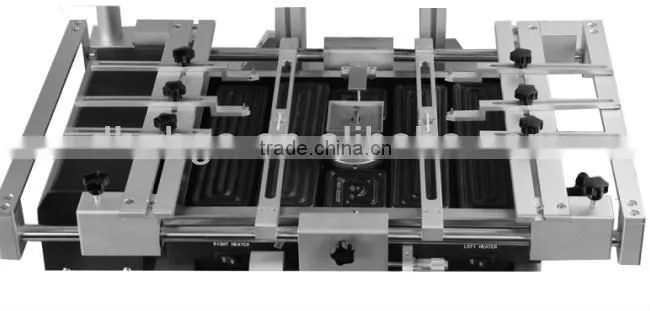

IR heating plate

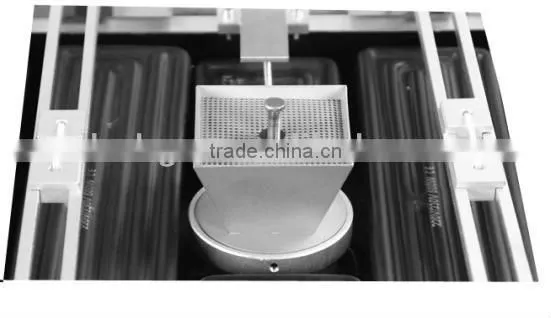

Bottom hot air nozzle
Specification
| Product name | BGA rework station |
| Total power | 5300W |
| top heating | 1200w |
| bottom heating | bottom hot air heating 1200W, IR preheating 2700W |
| Power | 220V 50HZ/60HZ |
| Positioning | V-groove, PCB boards can be adjusted in X axis by universal fixture |
| Temperature control | K-type, Closed loop |
| PCB size | Max 400x380mm, Min 22x22mm |
| Chip size | 2x2-50x50mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | approx 60kg |
| Suitable motherboards | mobile phone, laptop, desktop, game console, XBOX360, PS3 |
| Main feature |
1.CCD camera systerm 2.optical alignment 3.PLC control 4.laser postioning 5.portable drawer style HD touch screen |
Packing:
About our factory
Why choose us
1.We are the professional BGA rework station manufacturer. And have been in this filed for more than 5 years. Engaged in Design, Development, Production, Selling.
2.Our machine is best in quality with low price. Are popular with the repair shop, training schooll all over the worlk. Also welcome you to be our agent.
3.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
4.Payment: Western Union, PayPal, T/T.
Warranty
Warranty for one year. And the heating wire for three years. Our technical support is for the whole life.
