Semi-automatic CCD camera optical alignment BGA rework station repair bga chip machine laptop motherboard repair machine
Product show:
Specification:
| Product name | laptop motherboards repair machine |
| Total power | 5200W |
| Top hot air heating | 1200W |
| bottom heating | bottom hot air heating 1200W, IR preheating 2700W |
| Power | 110v/220V(optional) |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in X,Y direction and equipped with the external universal fixture |
| PCB size | min 22x22mm, max 440x380mm |
| BGA chips | 2x2mm-80x80mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | 70kg |
| Dimension | 600x700x850mm |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game comsole,etc |
| Features |
1.CCD camera optical alignment 2.semi-automatic 3.laser positioning 4.PLC control |
| Accessories |

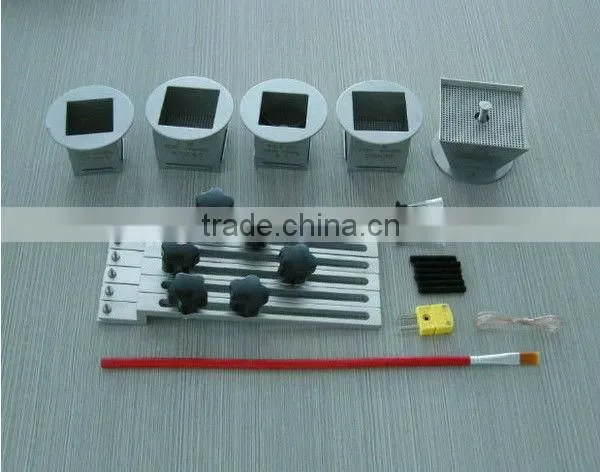

-1 piece user guide -1 piece CD -1 piece LCD display -1 piece brush -1 piece temperature sensor - 5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size -1 set of vacuum slot inclusing 4 siezes -3 pcs vacuum sucker -6 pcs universal fixture -6 pcs plug knob -4 pcs supporting screw |
Features:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen
8.accurate and precise temperature control
9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens
Accesories:

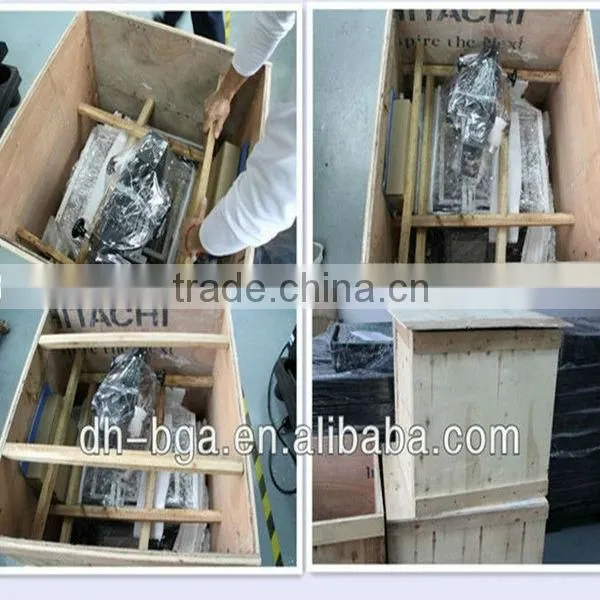

Packing:

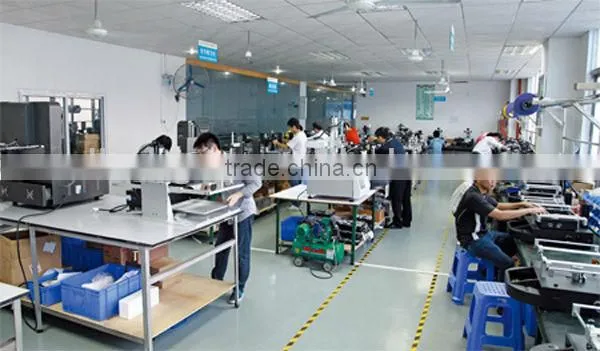

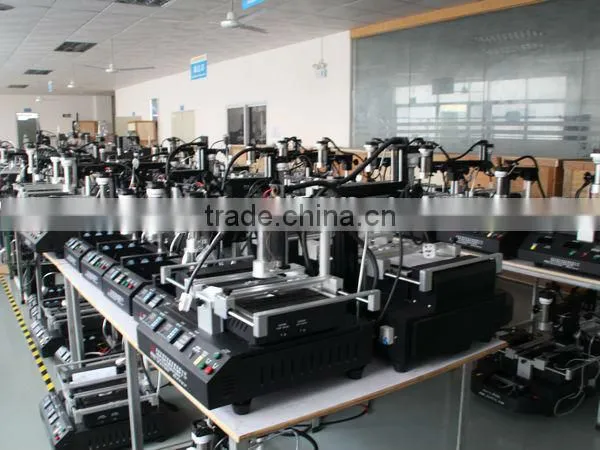

About our factory:

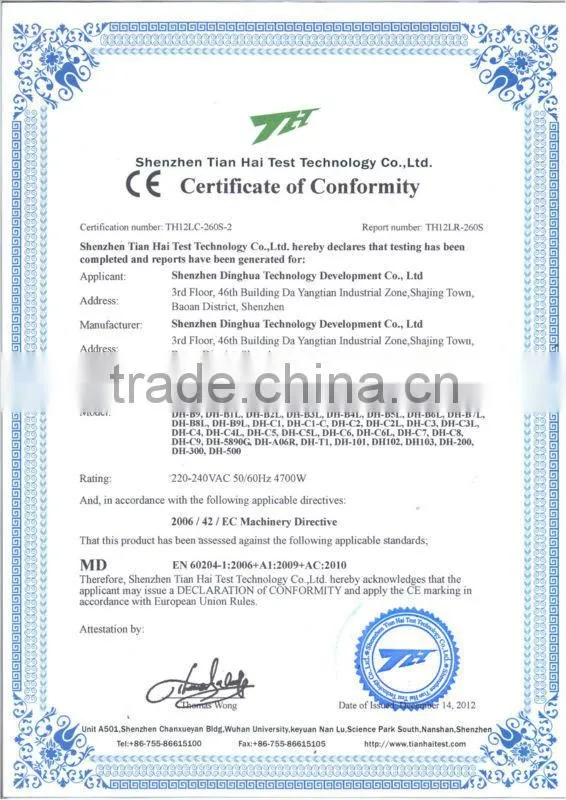

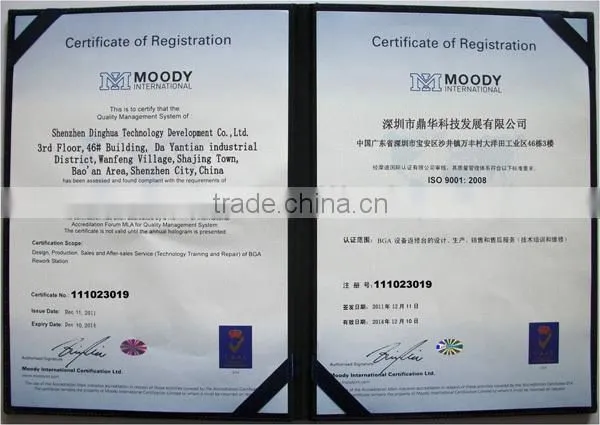

CE and ISO9001 certificate:
Why choose us:
1.We are the professional BGA rework station manufacturer. And have been in this filed for more than 5 years. Engaged in Design, Development, Production and Selling.
2.As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correct the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms. That’s why our machine is more accurate.
3.Our machine is best in quality with low price. Are popular with the repair shop and training schooll all over the worlk. Welcome you to be our agent.
4.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
5.Payment: Western Union, PayPal, T/T.
6.OEM and ODM is welcome.
7.All the machine will be equipped with user guide and CD.
Warranty:
The whole machine warranty for one year. And the heating wire for three-years warranty. Our technical support for the whole life.
Thank you for your attention. Should you have any request and question, please feel free to contact me. Your inquiry will get our fast reply. Welcome you to visit our factory.
