Specifications
1.best smd rework station2.Three independent heater
3.CCD camera and optical alignment
4.Temperature accuracy
5.vacuum pen
best smd rework station bga reballing equipment

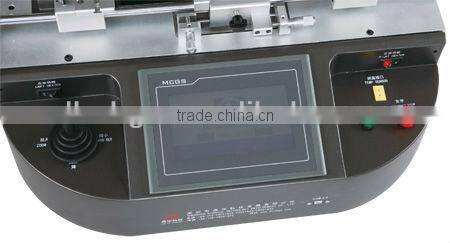

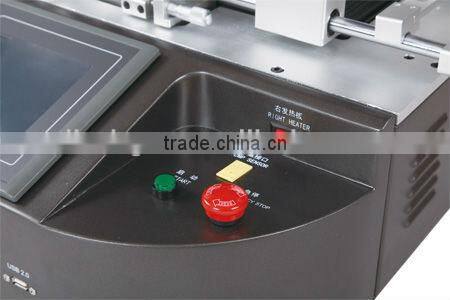

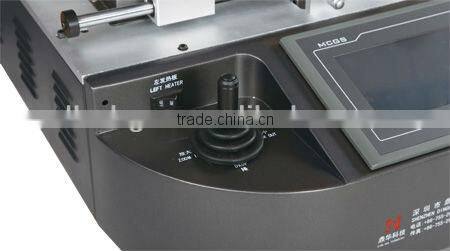

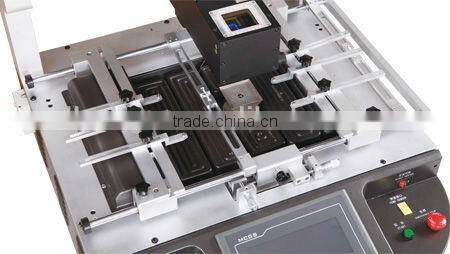

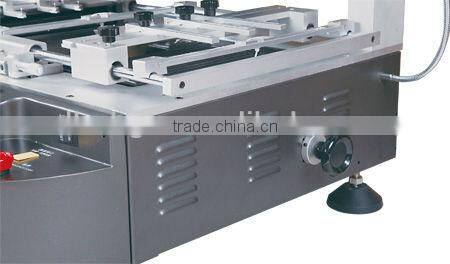

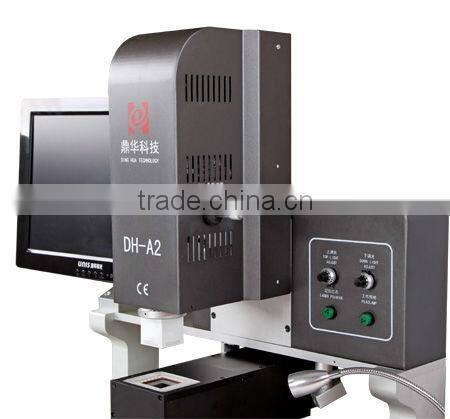

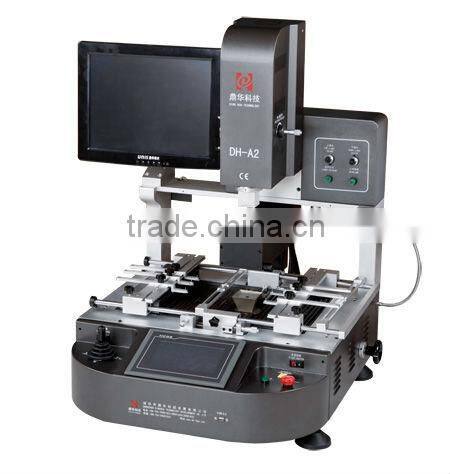

Product show:
Specification:
Total Power |
5200W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W, IR preheating 2700W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L600×W700×H850 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2°C |
PCB size |
Max 440×380 mm Min 22×22 mm |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Net weight |
70kg |
Features:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen
8.accurate and precise temperature control
9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens
Hot air nozzles:
Machine accessories:
Vacuum pen for handling BGA chip:
Packing details:
About our factory:
Advantage:
1. We're the professional BGA rework station manufacturer.
2. As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms,this is a big difference between 10ms and 30ms. That’s why our machine is more accurate.
3. Fast delivery via FedEx, DHL, UPS, EMS, TNT and so on. The goods can be ready in 7 days after the receipt of the payment.
4. Payment terms: Western Union, T/T, L/C, PayPal. Please choose your most convenient one.
After-sales service:
We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
Certificates:
Should you have any request and question, please feel free to tell me. Your inquiry will get our quick attention. Thank you!
