Specifications
1.optical alignment bga reballing machine2.Laser postioning
3.automatic BGA rework station
4.temperature accuracy
5.DH-G200

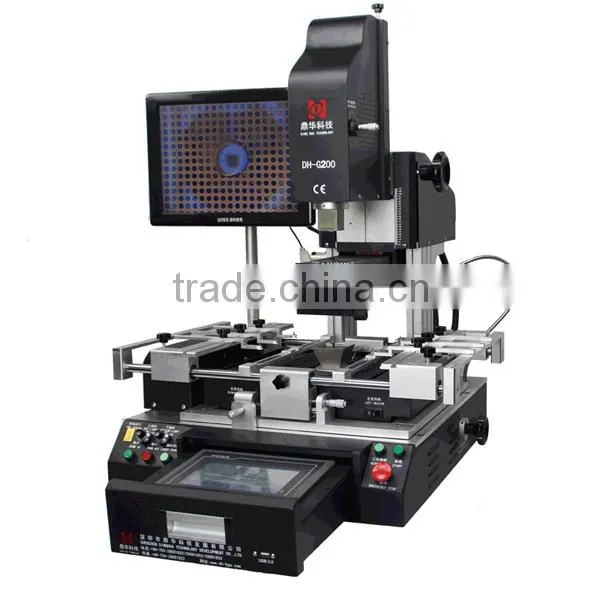

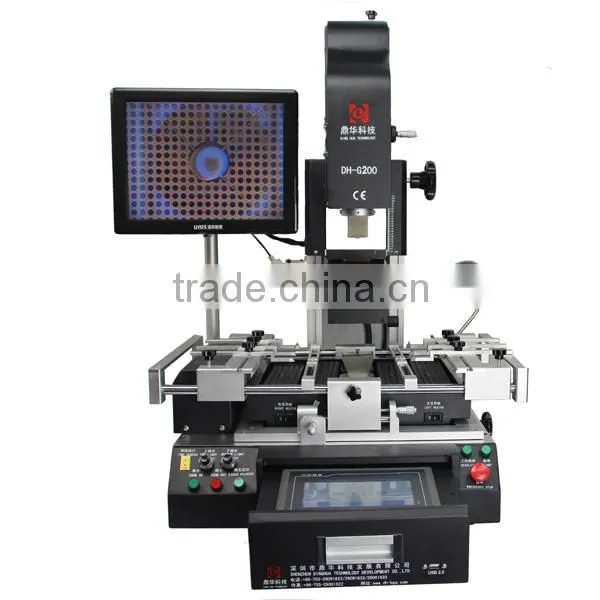

optical alignment bga reballing machine
Prodcut show
Laser positioning and scaleplate
Micrometer
IR plate and portable HD touch screen
Specification
| Product name | optical alignment bga reballing machine |
| Total power | 5300W |
| top heating | 1200w |
| bottom heating | bottom hot air heating 1200W, IR preheating 2700W |
| Power | 220V 50HZ/60HZ |
| Positioning | V-groove, PCB boards can be adjusted in X, Y axis and equipped with universal fixture |
| Temperature control | K-type, Closed loop |
| PCB size | Max 400x380mm, Min 22x22mm |
| Chip size | 2x2-50x50mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | approx 60kg |
| Suitable motherboards | mobile phone, laptop, desktop, game console, XBOX360, PS3 |
| Main feature |
1.CCD camera systerm 2.optical alignment 3.PLC control 4.laser postioning 5.portable drawer style HD touch screen |
| Accessories |
-1 piece user guide -1 piece LCD -5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size -1 set of vacuum sucker(including 4 pcs) -2 pcs vacuum pad -6 pcs universal fixture -4 pcs supporting screw -6 pcs Plum knob |
Packing:
About our factory
Why choose us
1.We are the professional BGA rework station manufacturer. And have been in this filed for more than 5 years. Engaged in Design, Development, Production, Selling.
2.Our machine is best in quality with low price. Are popular with the repair shop, training schooll all over the worlk. Also welcome you to be our agent.
3.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
4.Payment: Western Union, PayPal, T/T.
Warranty
Warranty for one year. And the heating wire for three years. Our technical support is for the whole life.
Certificates
Thank you for your attention. Should you have any request and question, please feel free to contact me. Your inquiry will get our fast reply.
