1.Original factory2.Hot air and IR heating, 3 independent heaters
3.Touch screen interface
4.PLC control bga rework station
Optical alignment Motherboard repair bga reballing kit infrared and hot air bga rework station
DH-A2 Specification and technical parameters:
Total Power |
5200W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W,IR preheating 2700W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L600*W700*H850 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±1°C |
PCB Size |
Max 440*380 mm Min 22*22 mm |
BGA Chip |
2x2-80x80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1 pc (optional) |
Net weight |
70kg |
DH-A2 Features:
1. High definition touch screen, PLC control, can save multiple group profile. Show the real-time set and measured temperature with instant temperature curve analysis function.
2. To ensure the heating effect and placement accuracy, the heating head and placement head are independent control. Adopt linear slide which makes X,Y,Z axis all can do micro adjust or rapid positioning; Instead of moving the PCB after mounting, we just need to move the upper heating head to heat directly to ensure the welding effect, placement accuracy.
3. Three independent heaters. Hot air upper and bottom heater. Infrared preheat bottom. Heating time, temperature and curve all can be displayed on touch screen.
4. K-type thermocouple (closed loop), PID parameter self-setting system automatic and temperature adjustment system with PLC, temperature precision within ±1 degree.
5. V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair.
6. Flexible and removable universal fixture protects the PCB, prevents PCB components damage and deformation and adapt to all kinds of BGA size
7. Offer all kinds of hot-air nozzle, with 360degree rotation; easy to install and change, customized is available.
8. High-definition CCD version system, two-tune, enlarge, micro-adjustment, automatic focusing and remediation equipped with color resolution and brightness adjustment auto device and can adjust the definition auto automatic or manual.
9. The X, Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy within ±0.01MM. High-definition LCD monitors.
10 8 level up/down + 8 level constant temperature control, save multiple groups profile. We can analyze, set and calibrate the temperature parameters curve on the touch screen at any time.
11 Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start automatically or manually after vertical wind stopped heating to ensure the welding effect.
12 Internal vacuum pump, Φ angle 60° rotation, Micrometer precision to mount suction nozzle by fine tuning without air.
13 CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Optical alignment Motherboard repair bga reballing kit infrared and hot air bga rework station

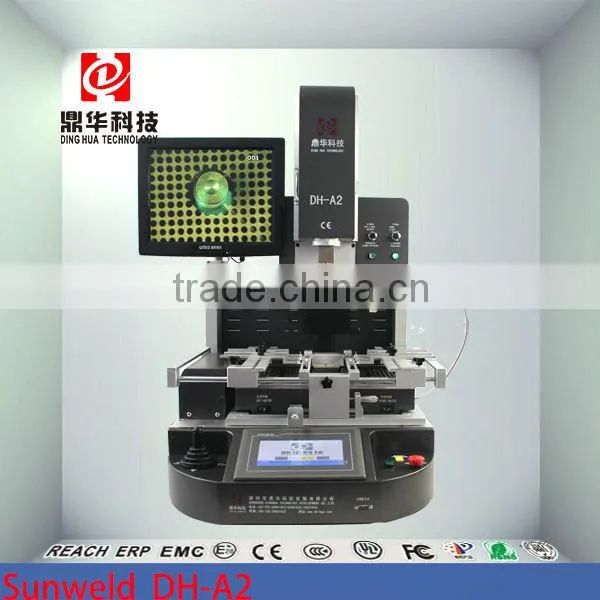

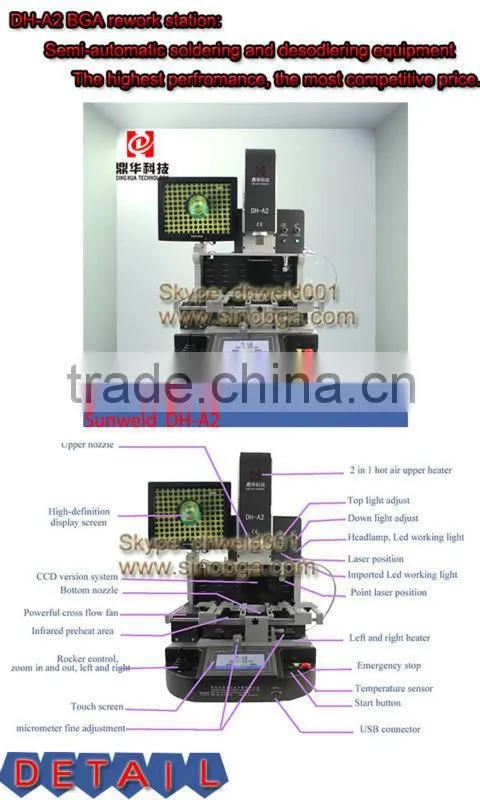

The introduction of the whole machine:

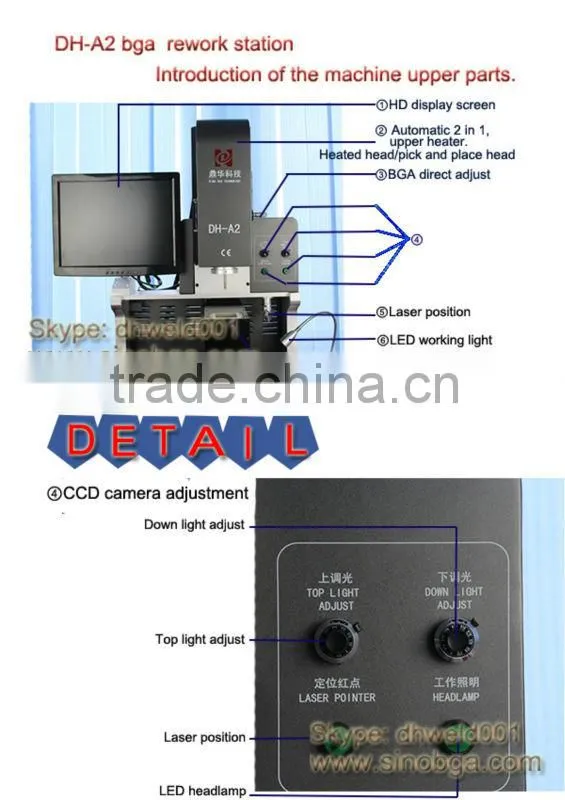

The introduction of the upper of machine:

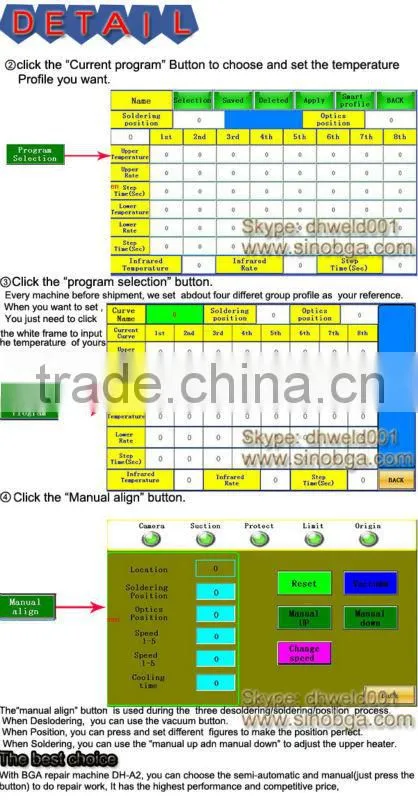

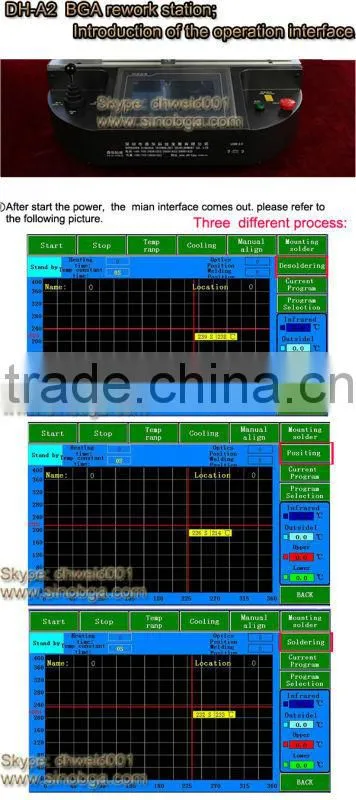

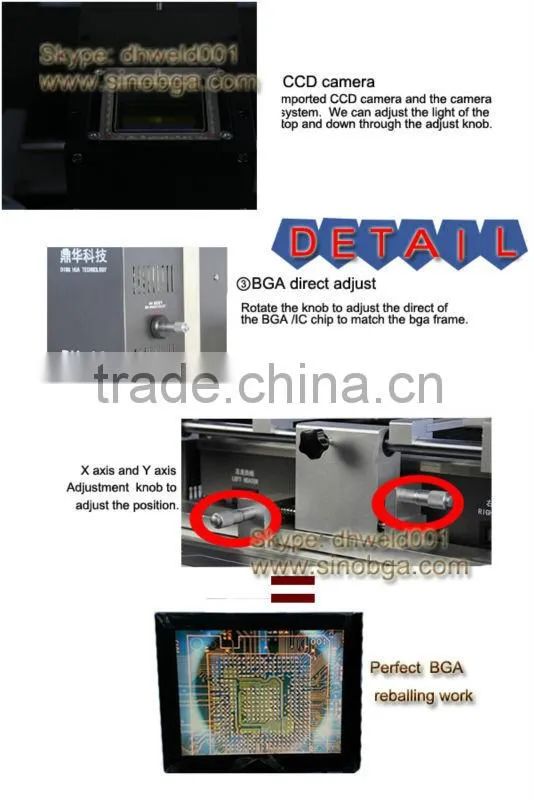

The introduction of the operation of machine:

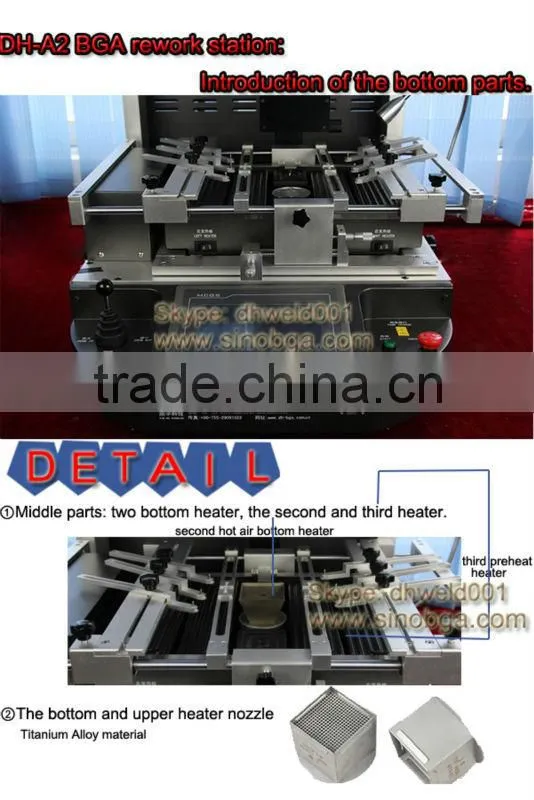

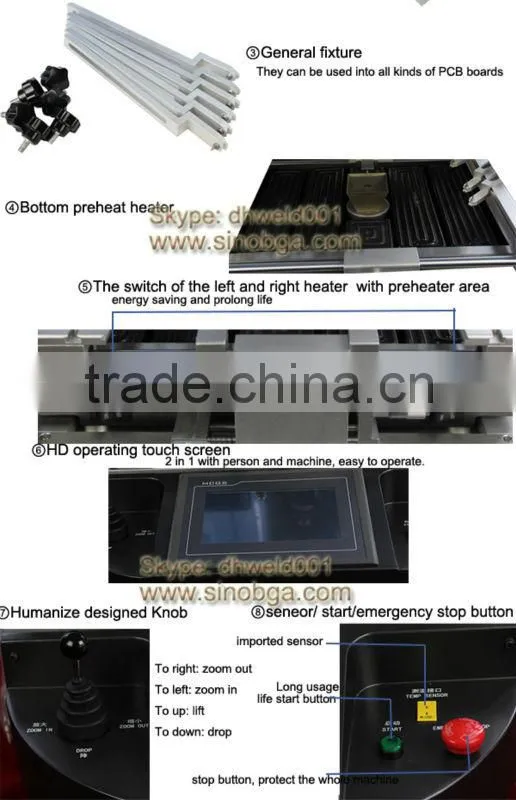

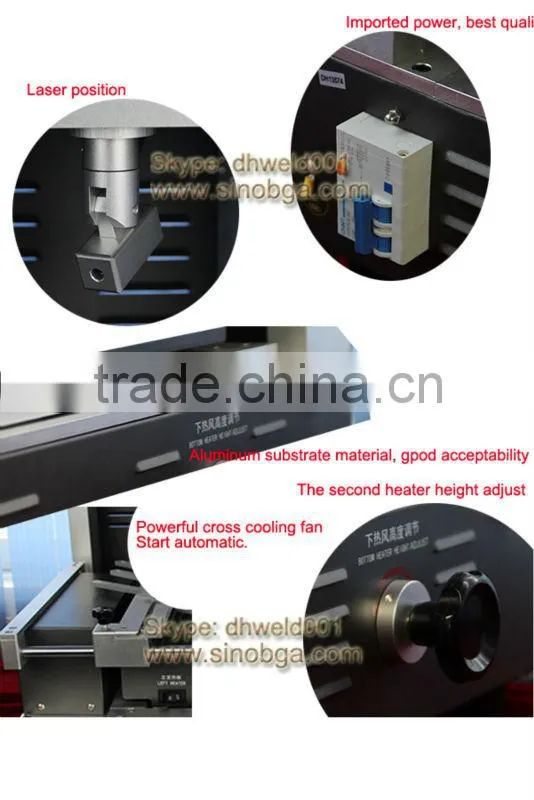

The introduction of the machine bottom:
Why us?
- Well-equipped manufacturing facility.
- Professionalism innovative R&D team, provide professional service for bga rework station solution.

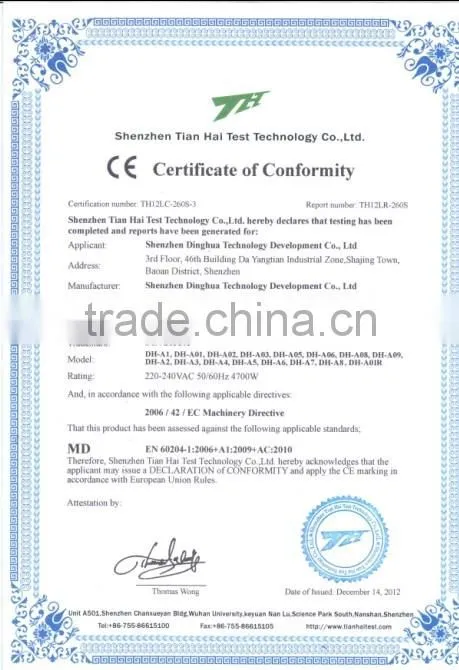

- International quality standard range, all of our products have got the CE, ISO 9001 2008, Rohs approval.
- Competitive price. All our machine components select from world class brand (like Omega, Panasonic, SMC, CNB, GS...which ensure safer, convenient speedily operation of our machine.
- Customized packaging and Fast delivery via FedEx, DHL, UPS, EMS, TNT and so on.
- We offer 3 years warranty for the heater of machine, one year for other parts. Lifelong technical support.
Humanized design:
- Upper heater can move up/down, rotate freely
- Strong sense of thermometer, temperature measurement more accurate
- PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
- It can set 8 segments heating, and store 10 groups temperature profile
- Taiwan led working light.
- Colorful buttons in English and Chinese, easy recognize and use
- CE certification, with emergency switch and automatic power-off protection device when emergency happens
Safety/Caution instructions:
- After power the machine, firstly should check whether the upper heater blow the cold wind. If now, prohibit starting heating.
- Set different temperature profile when repair different BGA chip, each temperature should not higher than 300 degree. Temperature setting can refer to the temperature of melting point of BGA tin bead.
- Do not use cooling fans or other devises blow directly to the machine when it works.
- Do not use the flammable spray, liquid or flammable gas near the repair station.
- Electrical box has the high-voltage components , do not attempt to disassemble
- If the metal objects or liquids fall into the repair station when it works, immediately power off the machine, until the machine to cool down, then completely remove litter, dirt. If dirt left, there is odor when reboot.
Please Note:
- We will send the machine in 110V in default, please message us if need 220V, thanks.
Factory supplier:
