Help CenterAutomatica Bga Rework Station With Optical Align Laser System Repair for Iphone Samsung Htc Smartphone
Related Products
-
Laptop, New Ipad &Smart Mobile Phone BGA Rework Station DH-A4NegotiableMOQ: 1 Set -
DH-A3 Xbox Bga Repairing Aoyue 852a Rework StationUS$ 6,050 - 6,325MOQ: 1 Set
-
High Configuration Dinghua DH-A2 Automatic Infrared Bga Repair Station for Computer Laptop Xbox ReworkUS$ 1 - 6,000MOQ: 1 Piece
-
Very Competitive Dinghua DH-G200 Ccd Camera Bga Rework System for Cell Phone Ipad Ipone Laptop RepairUS$ 1 - 1MOQ: 1 Piece
-
Good Quality Competitive Price Dinghua DH-A2 Automatic Bga Solder ic Station for Cell Phone Smart Phone LaptopUS$ 1 - 6,000MOQ: 1 Piece
Specifications
1.original factory, compete priceund hint system
3.Automatic Laser alignment
4.three heaters protect PCB
5.16' display
Our service tenet is to make all our customer will be very professional for bga reworking, even if they don’t have any experience of bga reworking, we will train them with patience
Specifications:
Total Power |
6800W |
Top heater |
1200W |
Bottom heater |
2nd heater 1200W, 3rd heater 4200W |
Power |
AC220V±10%, 110V±10%.50/60Hz |
Dimensions |
L1022×W670×H850 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop controlled, independent heating |
Temp accuracy |
±2°C |
Camera magnification |
10x-100x |

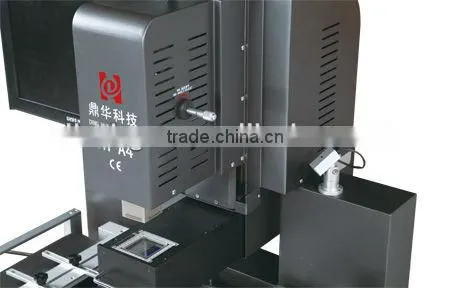

DH-A4 bga repair tool chip repair welding rework station main features

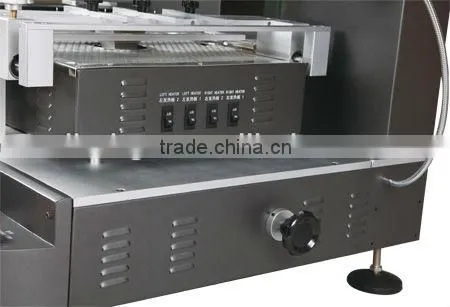

Three independent heaters
The upper heater: hot air reflow heater,make the chip heated evenly.
The bottom heater and infrared heater can heat the back of PCB,prevent the PCB from deformation.
All of them can set 8 segments heating ,cooling and constant temperature parameters, store 10 groups of temperature parameters.

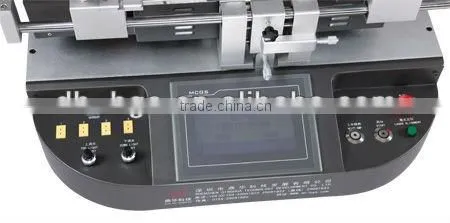

Accurate temperature controlling system
How to get the accurate temperature is the most importent aspect for reparing BGA chip.
As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms,this is a big difference between 10ms and 30ms,
That’s why our machine is more accurate.

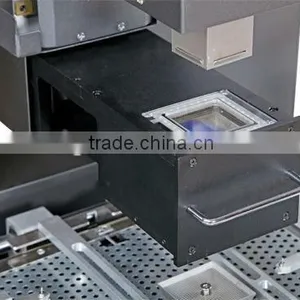

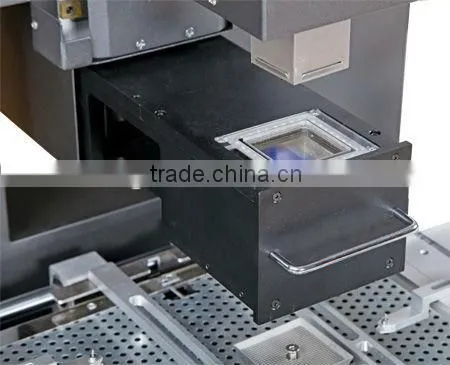

HD color optical alignment system
Optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
Hot air nozzles and vacuum sucker
Hot aie nozzel supply 360 degree rotation, easy to install and replace, customized is available.

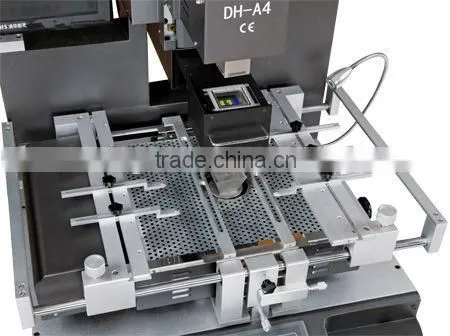

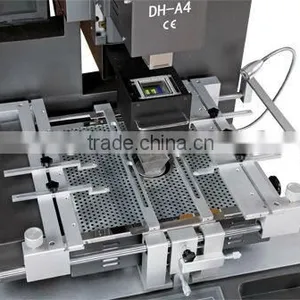

The way for supporting PCB board
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Cooling system
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
certification
CE certification, with emergency switch and automatic power-off protection device when emergency happen
Company profile
chips below can be repaired
bga equipment
