Specifications
DH-A3 xbox bga repairing aoyue 852a rework stationSemi-auto opeating
Laser positioning
CCD camera
Optical alignmet

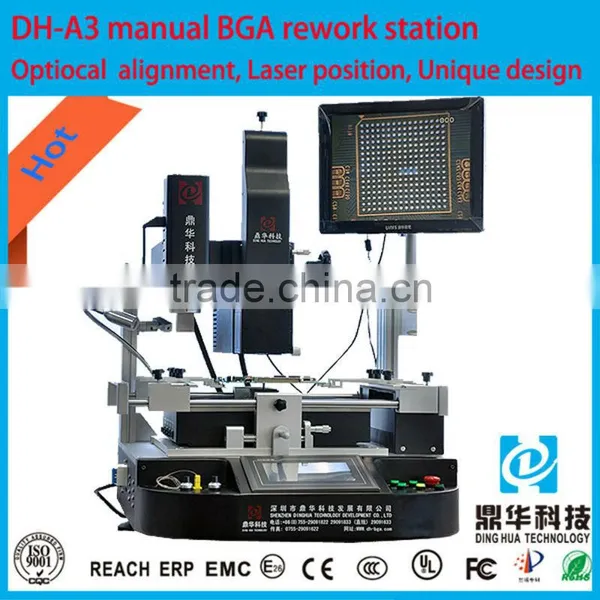

DH-A3 xbox bga repairing aoyue 852a rework station
Xbox bga repairing station specification
Power supply |
AC220V±10% 50/60Hz |
Power |
6500W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 3900W |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temp accuracy |
±2℃ |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
Machine dimension |
(L*W*H): 67*77*75cm |
Packing dimension |
(L*W*H): 80*84*80cm |
NW/GW |
approx 80/112 KG |
Bga repairing station for xbox structure
xbox rework machine bga
NO. |
Name |
Specification & type |
Unit |
Quantity |
Note |
1 |
BGA rework station |
DH-A3 |
set |
1 |
Touch screen |
2 |
Display screen |
|
set |
1 |
free |
3 |
vacuum suction nozzle |
|
set |
1 |
free |
4 |
Vacuum sucker |
|
piece |
3 |
free |
5 |
specification |
DH-A3 |
copy |
1 |
free |
6 |
Warm wind nozzle
|
Upper nozzle 31*31/38*38/41*41/ Bottom nozzle 34*34/55*55 |
piece |
5 |
free |
7 |
Abnormity clip |
|
piece |
6 |
free |
8 |
knob |
|
piece |
6 |
free |
9 |
Supporting screw |
|
piece |
6 |
free |
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
Company profile
Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service.We commit us to make the professional equipment, provide the high quality a perfect service for the customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience from home and abroad to adhering to our vision of ‘Professionalism, Honesty, Innovative and Responsibility’.
Science and technology are primary productive forces. Through teamwork, we achieved the core thermal-control technology with related patent. At the same time, our products cover 3 categories: high-end, mid-end and low-end for development and production using manual, semi-auto to fully automated processes. Our market had expanded into industries like: individual repair, factories, education, military and aerospace etc. And we had established the point-of sales and end service at locally and abroad.
Your satisfaction is our target, adhering to customer-focus, market oriented, and our company provides fist class products and high efficient services for customers through continuous innovation. We are honored to work with you to create a brighter future.
Our compay
Our customer
Why are we?
1. Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
3.Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering is high depends on the precise of the temerature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.
4.International quality standard range,all our product have got the CE, ISO 9001 20008,Rohs approval.
5.Competitive price. All our machine material select from world class brand (like Omega,SMC,CNB,GS, which is make us insure safer,comvenient speedily operation.
6.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT
and so on. Generally goods can be ready in 7 days after the receipt of the payment.
7.We supply 3 years warranty for this BGA rework station , in the first year, offer
spare parts for free, the other 2 years, only charge fees for spare parts,
life long technical support.
