Specifications
1.original factory, compete priceund hint system
3.Automatic Laser alignment
4.three heaters protect PCB
5.16' display

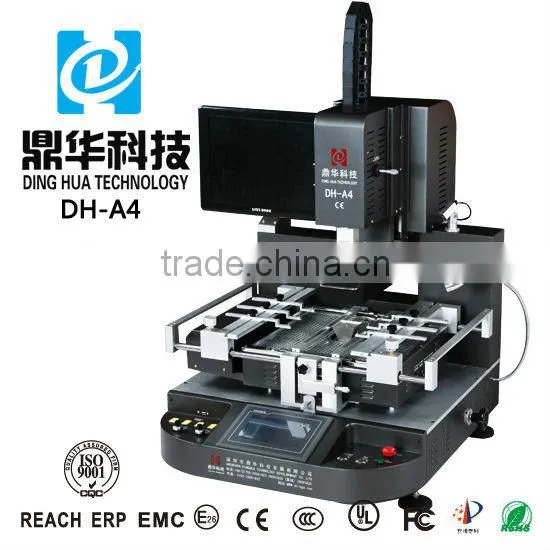

Laptop, New Ipad &Smart Mobile Phone BGA Rework Station DH-A4
Power supply |
AC220V±10% 50/60Hz |
Power |
6800W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 4200W |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
Machine dimension |
(L*W*H): 750*1020*1000mm |
Packing dimension |
(L*W*H): 110*90*110cm |
NW/GW |
91/116kg |
Our Product application:
1. Laptop notebook motherboard bga rework and repair.
2. Game consoles applications such as xbox Ps3 Wii bga rework and repair
3.Large circuit board maintenance, and mobile phone motherboard such small small-sized chip
BGA IR Heating PLC Control BGA rework Station DH-A4 Features:
1.Item name: High precious laser rework station DH-A4
2. The operator can supervise the process on a split screen 17” monitor.
3.Optical Alignment
4. colors separation, magnification, micro adjustment, auto focus, auto correction and auto color differentiation and light level adjustment system. Manually or automatically adjusting picture clarity.
5.the upper hot air heater ,low Infrared heater and the bottom IR heater. Preheating the PCB with infrared plates can avoid deformation and guarantees precision of soldering
6.Heating and placing head’s unique combined design, allows flawless placing and soldering. X,Y and Z axis are adjustable by micrometer with accuracy of up to ±0.01mm.
7.Rework station is the highest security equipment. Which has Password protects the datas. This screen can show the three independent heating temperature and time, and also can show 4-6 temperature profiles.
8.V-groove PCB support, rapid positioning, convenience, accuracy, can fit for all kinds of PCB board, We also have FLEXIBLE and CONVENIENT fixtures for all shapes PCB boards. which can protect and prevent well for damage to PCB board.
9.K sensor close control, control heating process High precisely.
10.Various sizes of BGA alloy nozzles, the min size 31*31mm,the max size is 55*55mm.which can be adjusted 360 degree for easily installation and replacement.
11.Use a powerful cross-flow fan to cool PCB rapidly to prevent it from deformation and ensure the welding effect.
12. Sound al arm hint system. There is a alarm 5-10 seconds before the completion of welding or installing to warn the workers to be prepared.
13.Wooden case packing
14.CE certificate and patent
Our factory:
SHENZHEN DINGHUA TECHNOLOGY CO LTD is a manufacturer specialized in design, production and sales of BGA Rework Station, rework tools and associated equipment. We are committed to provide the most advanced equipment with high quality and timely service to our customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience abroad and adhering to our vision of ‘Professionalism, Honesty, Innovative and Responsibility.
Our service:
a. Your inquiry related to our products or prices will be replied within 24hours.
b. Be Well-trained and experienced to answer all your enquires in fluent English
c. OEM&ODM, any your request we can help you to design and put into product.
d. Distributors are offered for your unique design and some our current models
e. Protection of your sales area, ideas of design and all your private information.
