Specifications
1.BGA chip repair machine DH-G2002.98% rework rate, OEM
3.vacuum built-in
3.3 independent heater
4.optical alignment
Dinghua bga chip repair machine for motherboard DH-G200 laptop motherboard vga chip repair
1.bga chip repair machine DH-G200 Specification:
| Total power | 5300W |
| Top hot air heater | 1200W |
| Bottom heater | hot air: 1200W; IR: 2700W |
| Power | 220V |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in any direction and equipped with the external |
| PCB size | min 20x20mm, max 400*380mm |
| BGA chips | 2x2mm-80x80mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | 60kg |
| Machine Dimension | 55x58x72cm |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game console,etc BGA chip repair machine |
2. bga chip repair machine for motherboards advantages:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen
8.accurate and precise temperature control

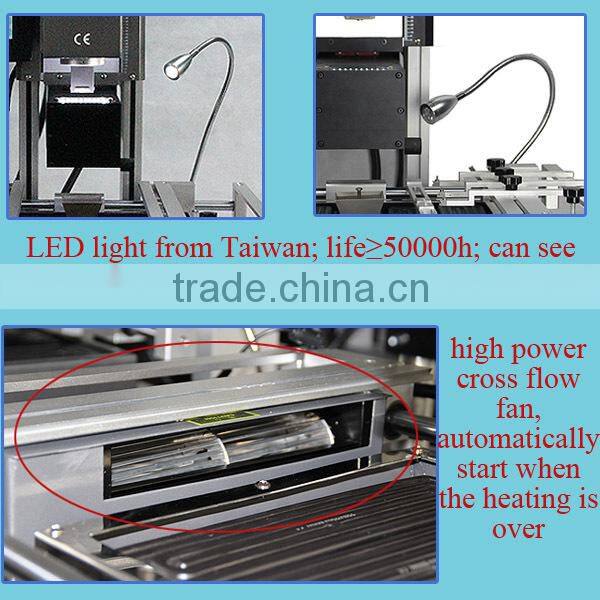

9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens

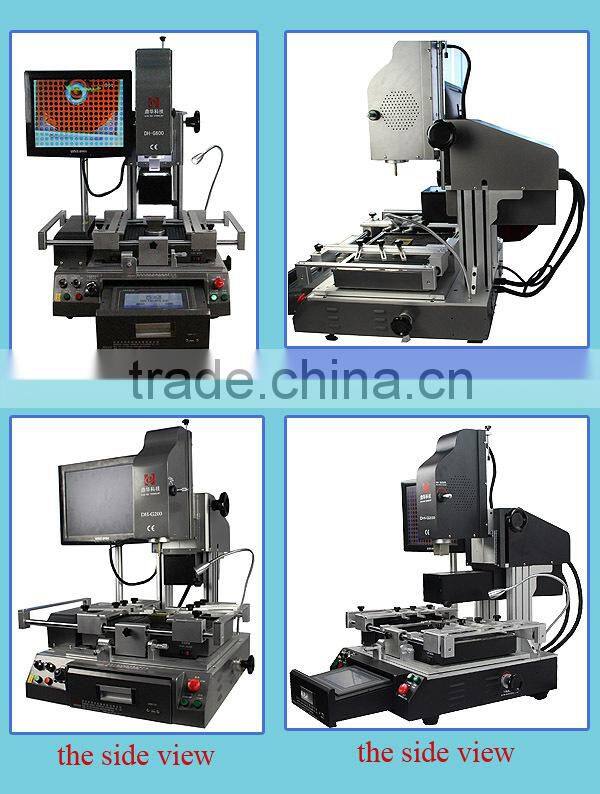

the whole view of bga chip rework station DH-G200.

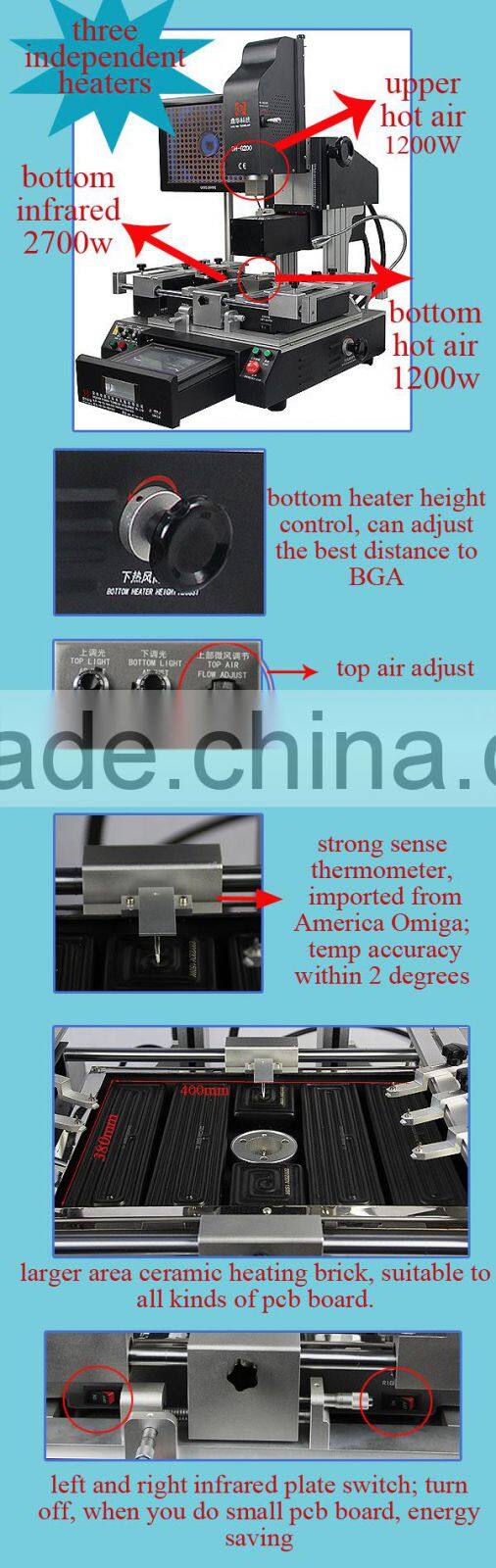

three heaters bga machine, accurate temperature control:

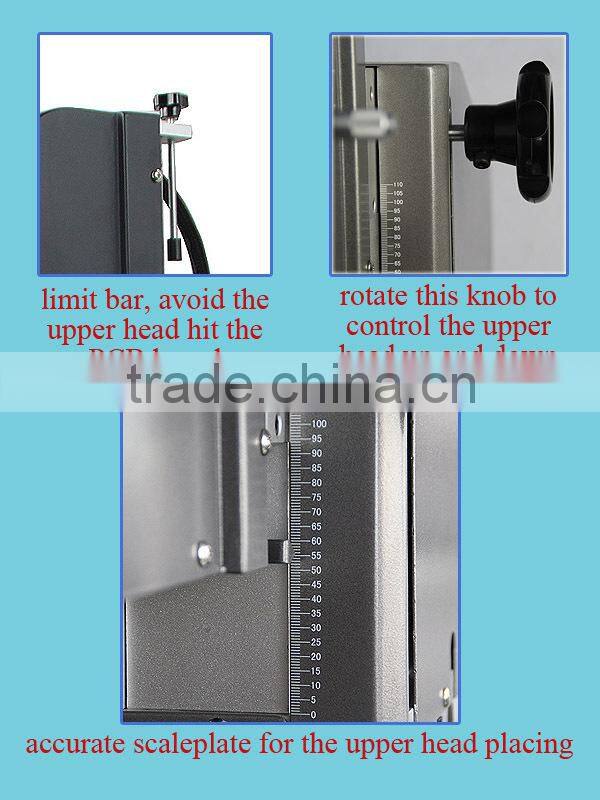

manual laptop motherboard vga chip repair

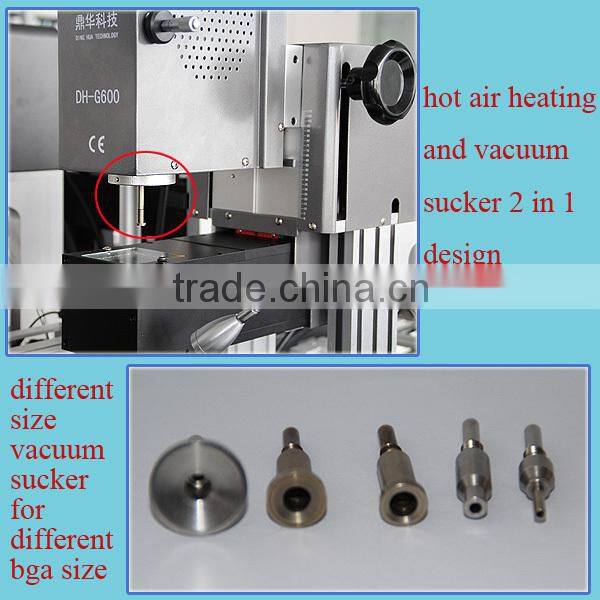

build-in vacuum sucker bga chip repair machine
optical alignment bga machine, ccd camera system bga machine

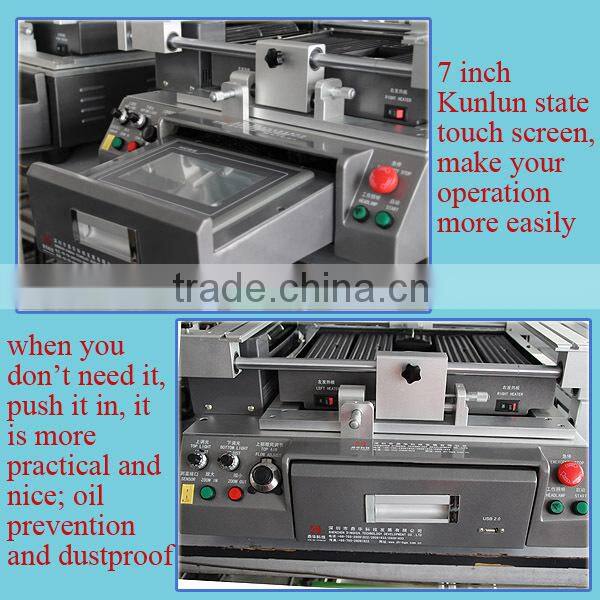

drawer style touch screen bga machine
laptop motherboard vga chip repair DH-G200
bga chip repair machine, laptop motherboard vga chip repair certifications
SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO.,LTD is a professional
manufacturer of welding equipments. Our products:bga rework stations, automatic soldering machines,automatic screwdriving machines, welding kits and SMT materials etc. Our mission: “Research as basis, Quality as core, Service as guarantee”. Our goal: “Professional equipment, quality and service”
To ensure the quality, Dinghua was the first to pass UL,E-MARK,CCC,FCC,CE , ROHS certificates. Meanwhile, to improve and perfect the quality system, Dinghua has passed ISO,GMP,FCCA,C-TPAT on-site audit certification.
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1 year warranty, the heaters are for 3-years warranty
