Help CenterNew Two Upper Head Dinghua DH-A3 Optical Alignment Bga Rework Station for Mobile Phone Repair Software, Laptop Repair
Related Products
-
DH-A5 Dinghua Full Automatic Computer Motherboard Bga Repair KitUS$ 20,000 - 25,000MOQ: 1 Piece -
Best Sale Bga Rework Station Price BGA Electronic Parts Repair DH-A4 Bga Rework StationNegotiableMOQ: 1 Piece
-
Bga Rework Station Price,motherboard Repair Tool,bga Rework Reball Kit,DH-A5,Dinghua,full Automatic Quality ChoiceUS$ 1 - 25,000MOQ: 1 Piece
-
BGA Rework Station DH-A3 Automatic Bga Rework Station,hot Air Bga Rework Station for Laptop, Bga Rework Station PriceUS$ 1 - 6,000MOQ: 1 Piece
-
BGA Rework Station DH-G200 Mobile Phone Bga Rework Station,hot Air Bga Rework Station, Rework Station Bga Bga Rework StationUS$ 1 - 4,500MOQ: 1 Piece
Specifications
1.BGA rework station DH-A32.100% rework rate, semiauto
2. optical alignment
3.laser positioning
5. 3 independent heaters
1. Dinghua DH-A3 Optical Alignment bga rework station Technical Parameters:
Product name | Hot Air and Infrared BGA Rework Station DH-A3 |
| Voltage Voltage | AC220V±10% 50/60Hz |
| Power | 6500W |
| Top heater | Hot air 1200W |
| Bottom heater | Hot air 1200W, Infrared 3900W |
| Positioning | V groove, PCB support can be adjusted in any direction with universal fixture |
| Temperature control | K sensor, closed loop control |
| Temp accuracy | ±2°C |
| PCB size | Max 500x400mm, Min 22x22mm |
| minimum chip spacing | 0.15mm |
| BGA chip | 2*2-80*80mm |
| External Temperature Sensor | 1pcs (optional) |
| Machine dimension | 97 x77 x81 cm |
| N.W. | 70 kg |
2. bga rework station DH-A3 working requirement:
| Operation temperature | 15-45 degree |
| Operation Humidity | non-condensing, 5%-95% |

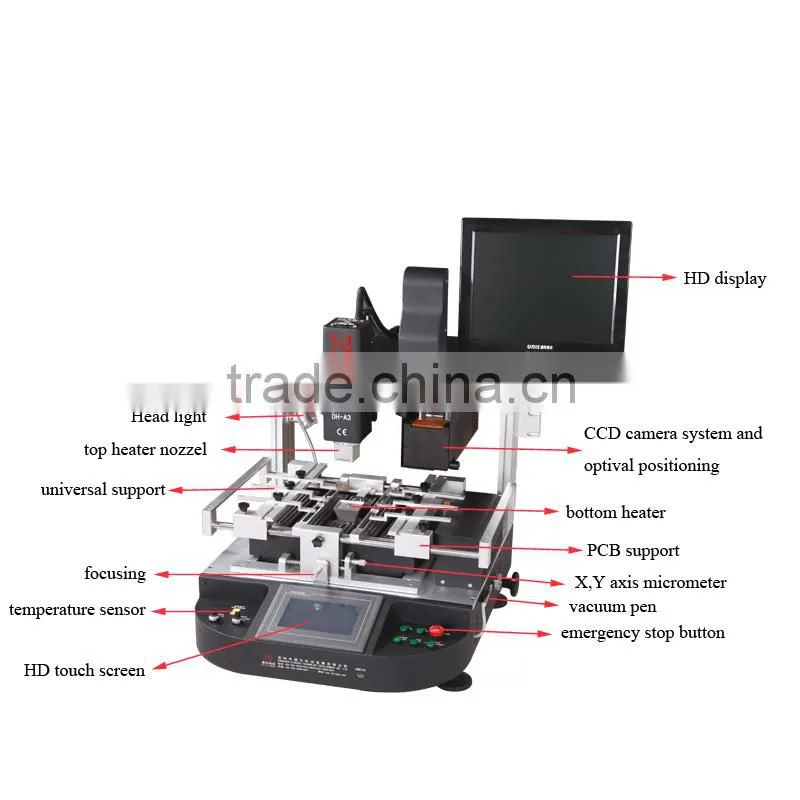

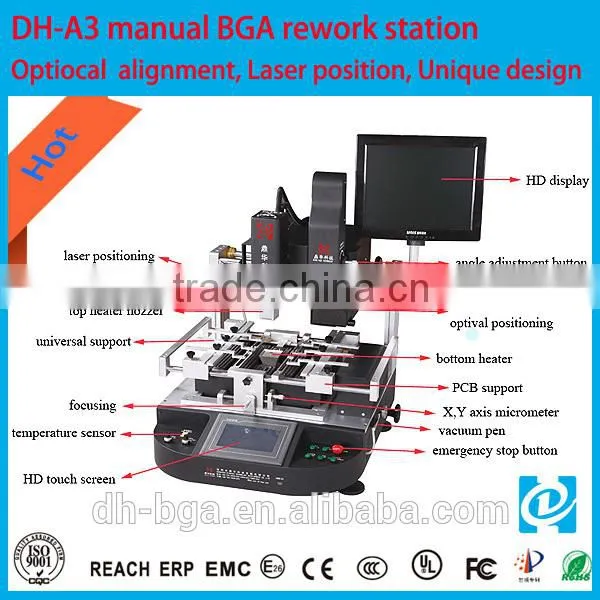

3. rework station structure:
4. bga rework station DH-A3 features:
1. High definition touch screen, PLC control, can save multiple group profile. Show the real-time set and measured temperature with instant temperature curve analysis function.
2. To ensure the heating effect and placement accuracy, the heating head and placement head are independent control. Adopt linear slide which makes X,Y,Z axis all can do micro adjust or rapid positioning; Instead of moving the PCB after mounting, we just need to move the upper heating head to heat directly to ensure the welding effect, placement accuracy.
3. Three independent heaters. Hot air upper and bottom heater. Infrared preheat bottom. Heating time, temperature and curve all can be displayed on touch screen.
4. K-type thermocouple (closed loop), PID parameter self-setting system automatic and temperature adjustment system with PLC, temperature precision within ±1 degree.
5. V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of BGA repair.
6. Flexible and removable universal fixture protects the PCB, prevents PCB components damage and deformation and adapt to all kinds of BGA size
7. Offer all kinds of hot-air nozzle, with 360 degree rotation; easy to install and change, customized is available.
8. High-definition CCD version system, two-tune, enlarge, micro-adjustment, automatic focusing and remediation equipped with color resolution and brightness adjustment auto device and can adjust the definition auto automatic or manual.
9. The X, Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy within ±0.01MM. High-definition LCD monitors.
10. 8 level up/down + 8 level constant temperature control, save multiple groups profile. We can analyze, set and calibrate the temperature parameters curve on the touch screen at any time.
11. Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start automatically or manually after vertical wind stopped heating to ensure the welding effect.
12. Internal vacuum pump, Φ angle 60° rotation, Micrometer precision to mount suction nozzle by fine tuning without air.
13. CE certification,with emergency switch and automatic power-off protection device when emergency happens.
5. bga rework station DH-A3 material apply:
Dinghua bga rework station has several advantages than other kind factories:
1. bga rework staion DH-A3 has two upper head, one placing head and one heating head.
2. bga rework station DH-A3 has inductive push-and-pull design:
3. DH-A3 is an optica alignment bga rework station, good performance!
4. bga rework station DH-A3 has quick laser position:
5. bga rework station has big pcb supporter:
6. bga rework station DH-A3 is human designed.
- Strong sense of thermometer, temperature measurement more accurate
- PCB clamp (V-groove) with universal fixture, suitable for all kinds of BGA.
- It can set 8 segments heating, and store unlimited temperature profile
- Taiwan led working light.
- Colorful buttons in English and Chinese, easy recognize and use
- CE certification, with emergency switch and automatic power-off protection device when emergency happens
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heaters are for 3-years warranty.
Send Inquiry to This Supplier
