Specifications
le phone bga rework station DH-G2002.98% rework rate, OEM
3.vacuum built-in
3.three independent heate
4.Laser,digital
BGA Rework station DH-G200 mobile phone bga rework station,hot air bga rework station, rework station bga bga rework station
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
>>>Specification:
BGA Rework station DH-G200 mobile phone bga rework station,hot air bga rework station, rework station bga bga rework station
| Total power | 5300W |
| Top hot air heater | 1200W |
| Bottom heater | hot air: 1200W; IR: 2700W |
| Power | 220V |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in any direction and equipped with the external |
| PCB size | min 20x20mm, max 400*380mm |
| BGA chips | 2x2mm-80x80mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | 60kg |
| Machine Dimension | 55x58x72cm |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game console,etc |
>>> Advantages:
BGA Rework station DH-G200 mobile phone bga rework station,hot air bga rework station, rework station bga bga rework station
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

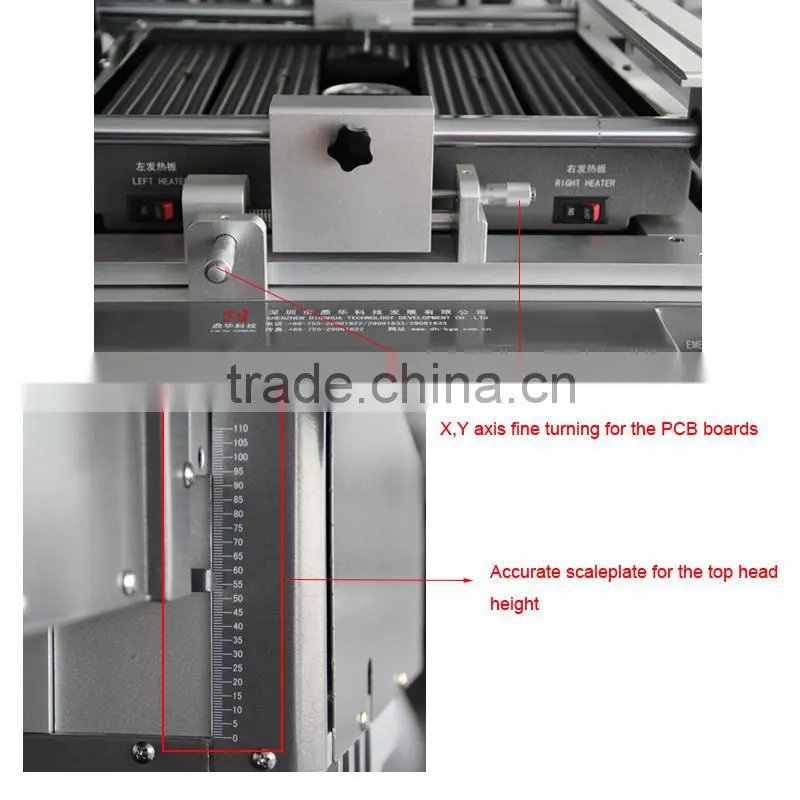

3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.

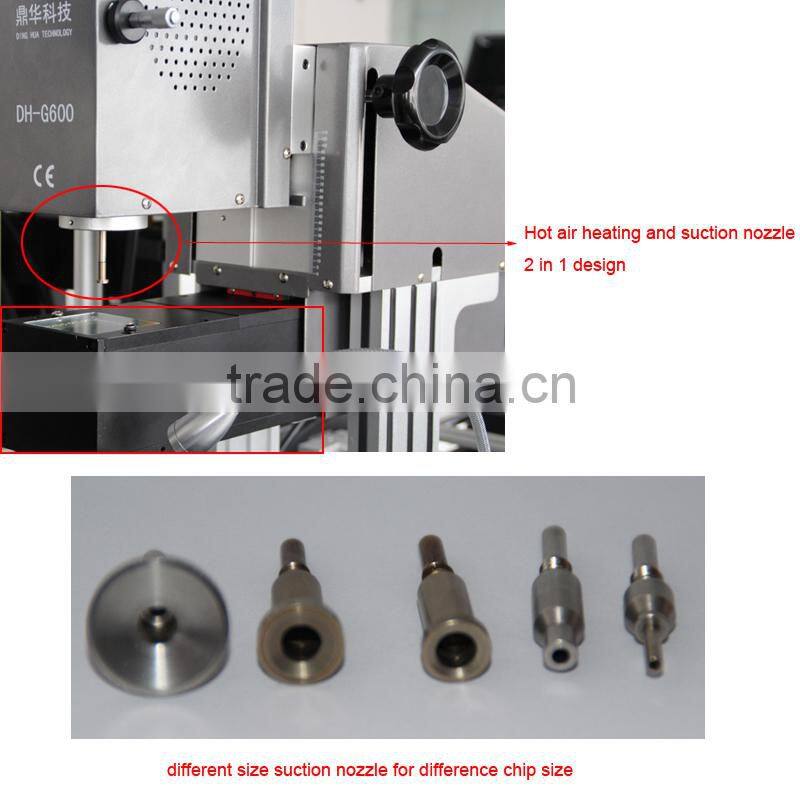

5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen
8.accurate and precise temperature control

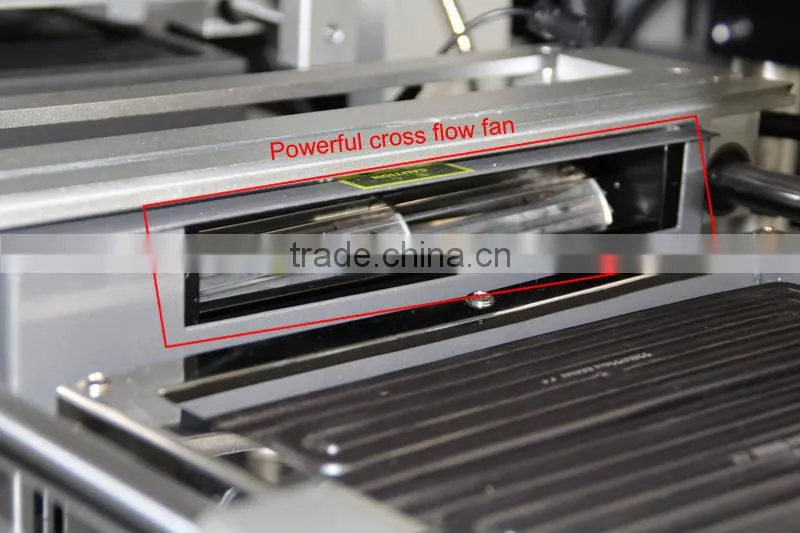

9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens
>>> Details:
>>> certification:
SHENZHEN DINGHUA TECHNOLOGY DEVELOPMENT CO., LTD is a professional
manufacturer of welding equipments. Our products: bga rework stations, automatic soldering machines, automatic screwdriving machines, welding kits and SMT materials etc.Our mission: “Research as basis, Quality as core, Service as guarantee”. Our goal: “Professional equipment, quality and service”.
To ensure the quality, Dinghua was the first to pass UL,E-MARK,CCC,FCC,CE ,ROHS certificates. Meanwhile, to improve and perfect the quality system, Dinghua has passed ISO,GMP,FCCA,C-TPAT on-site audit certification.
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1 year warranty, the heating wire is for 3-years warranty
