Product Details
Place of Origin: | China | Brand Name: | DingHua | Model Number: | DH-A3 |
Voltage: | 220V | Current: | 50/60HZ | Rated Capacity: | N/A |
Rated Duty Cycle: | N/A | Dimensions: | 670*770*750 | Weight: | 78KG |
Usage: | used for mobile phones, computers, laptops, Switches, game consoles li | Certification: | CE,ISO2001 2008,ISO14001 2004 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
laser alignment positioning, manual machineHD touch screen interface, PLC control 3 Heating Zone Automical BGA Rework Station
DH-A3
Feature:
1.HD touch screen interface, PLC control
2.HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
3.Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
4.K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
5.Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
6.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
7.Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
8.Sound hint system. There is an alarm before the completion of each desoldering and soldering.
Specification
Power supply | AC220V±10% 50/60Hz |
Power | 6500W |
Top heater | Hot air 1200W |
Bottom heater | Hot air 1200W, Infrared 3900W |
Positioning | V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control | K sensor closed loop control, independent heating |
Temp accuracy | ±2°C |
PCB size | Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning | ±15mm forward/backward, ±15mm right/left |
Placement Accuracy | ±0.01MM |
Camera magnification | 10x-100x |
BGA chip | 2*2-80*80mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1-5(optional) |
Machine dimension | (L*W*H): 670*770*750mm |
Packing dimension | (L*W*H): 80*90*90cm |
NW/GW | 78/98 KG |

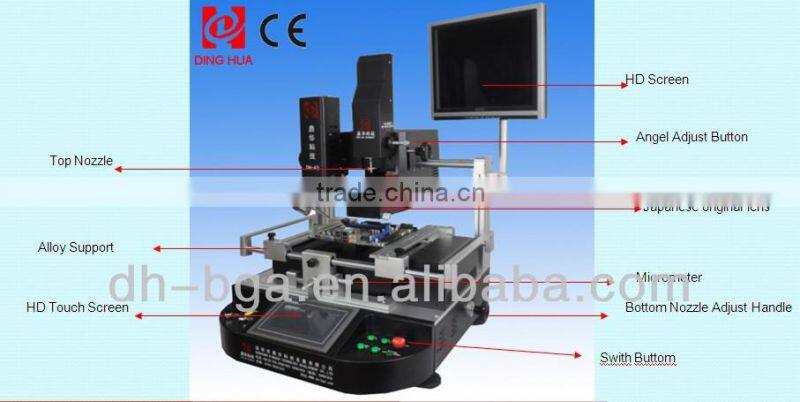

Product Digram
Placement Head and Heater Integrated Designment,flexiable,convenient,shortcut,stable,temperature control and alignment is very precise,it can help you do coherent reworking.
High resolution CCD optical lens ,original from Japan.
Optical imaging, BGA angle adjustment (BGA ANGLE ADJUST), 360-degree view BGA soldering, and to provide BGA rework success rate.

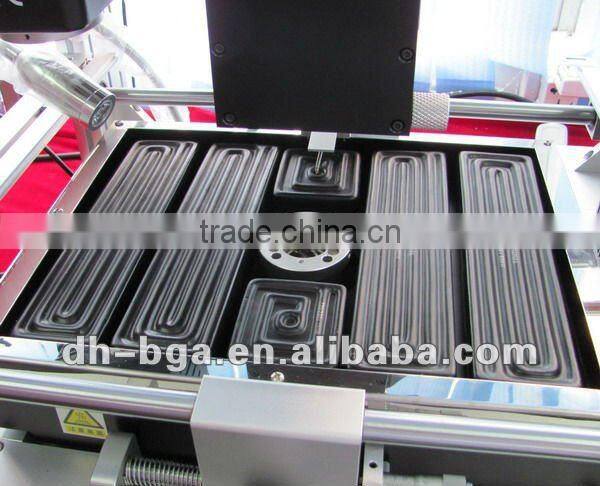

Infrared heater original from Taiwan, for protecting PCB from deformation

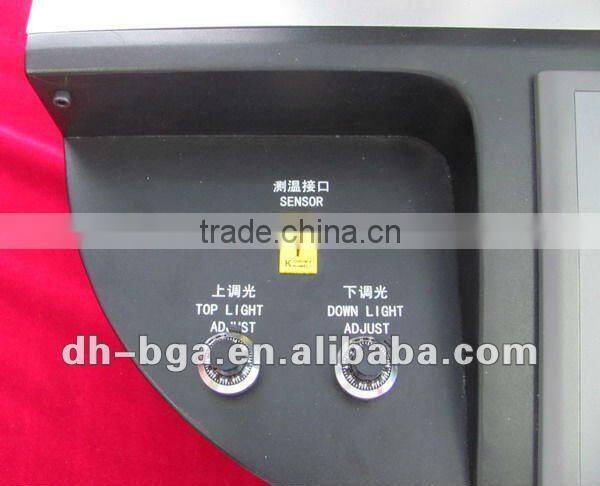

Temperature Sensor Interface,it can help to measure 4 BGA corner of BGA ‘s Temperature Profile.
Stainless Steel Bold support slider,the surface of the support is of plating treatment, beautiful and Generous.

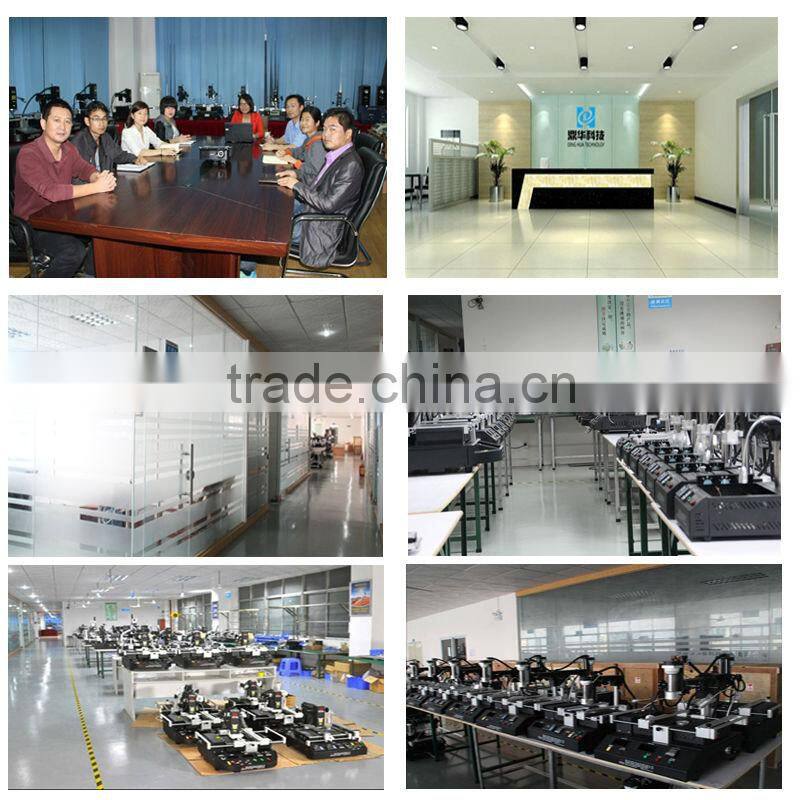

Our Company Profile
