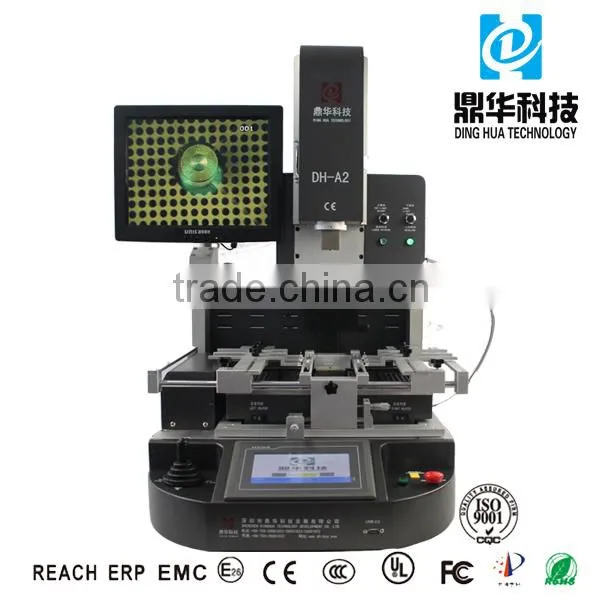

Help CenterDH-A2 Welding Motherboard Repair Equipment, BGA Rework Station
Related Products
-
Laptop BGA Rework System DH-A3 Laser Alignment Bga Rework Station/bga Reball MachineUS$ 1 - 7,000MOQ: 1 Set -
DH-A3,bga Rework Station,iphone Chip Repairing,sales PromotionNegotiableMOQ: 1 Set
-
DH-A2 Semi Automatic Rework BGA Station With CCD Camera and LCD MonitorNegotiableMOQ: 1 Piece
-
DH-A2 Semi Automatic BGA Reflow Station With CCD Camera and LCD MonitorNegotiableMOQ: 1 Piece
-
DH-A2 Semi Automatic Mobile BGA Rework Station With CCD Camera and LCD MonitorNegotiableMOQ: 1 Piece
Specifications
Welding motherboard repair equipmentOptical Laser alignment
3 independents heaters
HD touch screen and display screen
Applications:
Complete range of rework applications in medium and large scale service centers
Mobile and radio systems devices repairment
Cellular phones, PDAs, handhelds, laptops, notebooks & motherboards repairment
LAN devices, network nodes and military communication equipment repairment
Portable medical equipment repairment
Specifications:
Power supply |
AC220V±10% 50/60Hz |
Power |
5200W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 2700W |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K-sensor closed loop control, independent heating |
Temp accuracy |
±2 degrees |
PCB size |
Max 500*400 mm Min 22*22 mm |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Machine dimension |
(L*W*H): 600*700*850mm |
NW |
70KG |
DH-A2 Main Features
HD touch screen interface, PLC control.
Laser assist position system
HD CCD optical alignment system, micro fine turn workbench
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K-sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
Moveable heater, easy to operate.

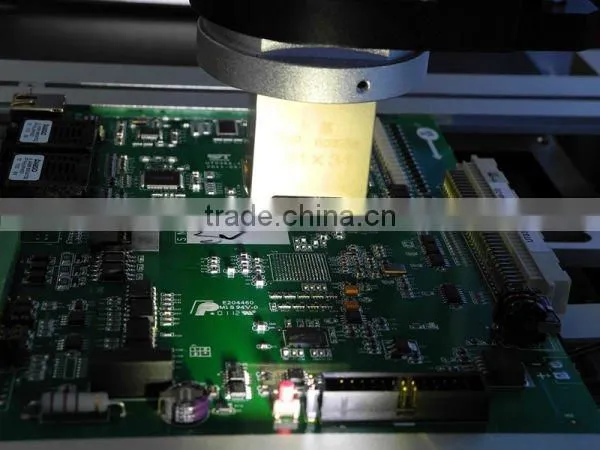

Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.

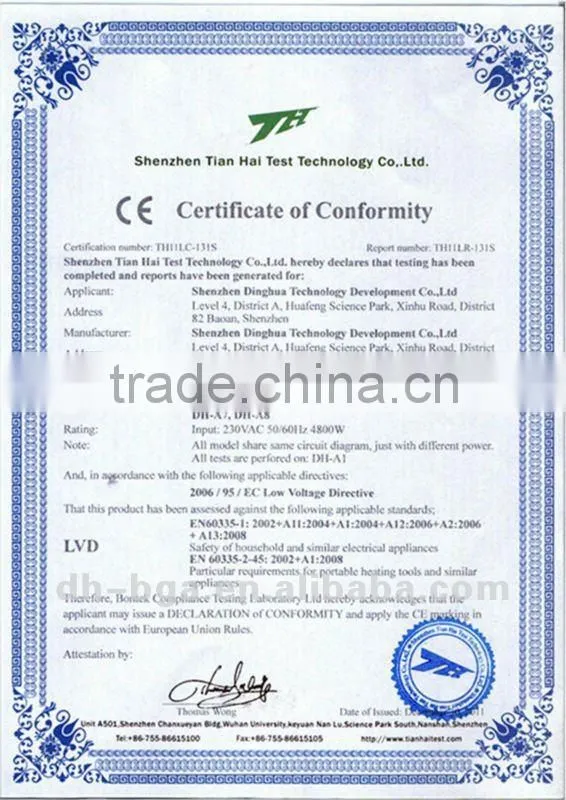

CE certification, with emergency switch and automatic power-off protection device when emergency happens
Three years warranty(Two years longer than other companies), free life-long technical support
Standard accessory
customize nozzle is available
