Home > Industrial Equipment & Components > Welding & Soldering Supplies > Other Welding & Soldering Supplies > DH-A3,bga Rework Station,iphone Chip Repairing,sales Promotion

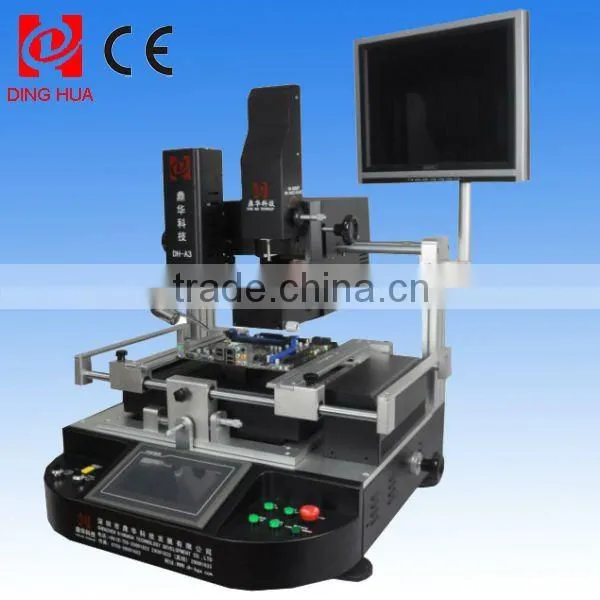

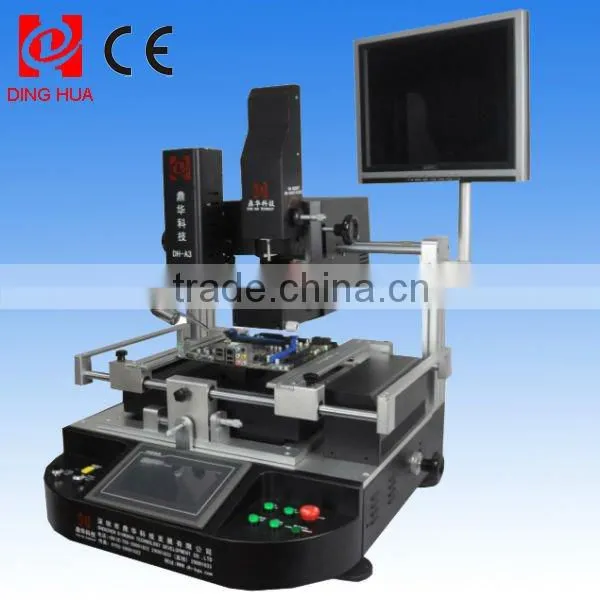

DH-A3,bga Rework Station,iphone Chip Repairing,sales Promotion

Name: DH-A3,bga Rework Station,iphone Chip Repairing,sales Promotion
Brand: Dinghua
SKU: 120897099
Availability: InStock

DH-A3,bga Rework Station,iphone Chip Repairing,sales Promotion thumbnail-1

DH-A3,bga Rework Station,iphone Chip Repairing,sales Promotion photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Dinghua

Model Number:

DH-A3

Contact Supplier Request Quote Chat Now

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Dinghua

Model Number DH-A3

Specifications

1.original factory, good price
und hint system
3.Automatic Laser alignment
4.three heaters protect PCB
5.16' display

Specifications:

Total Power	6500W
Top heater	1200W
Bottom heater	2nd heater 1200W, 3rd heater 3900W
Power	AC220V±10%, 110V±10%.50/60Hz
Dimensions	L800×W900×H950 mm
Positioning	V-groove, PCB support can be adjusted in any direction and with external universal fixture
Temperature control	K type thermocouple, closed loop controlled, independent heating
Temp accuracy	±2°C
Camera magnification	10x-100x

DH-A3 main features

Three independent heaters (top heater, bottom heater and infrared heater zoon) the top heater and bottom heater is for heating the BGA chip, the infrared heater is for heating the whole PCB, so it can protect the PCB from uneven heating.

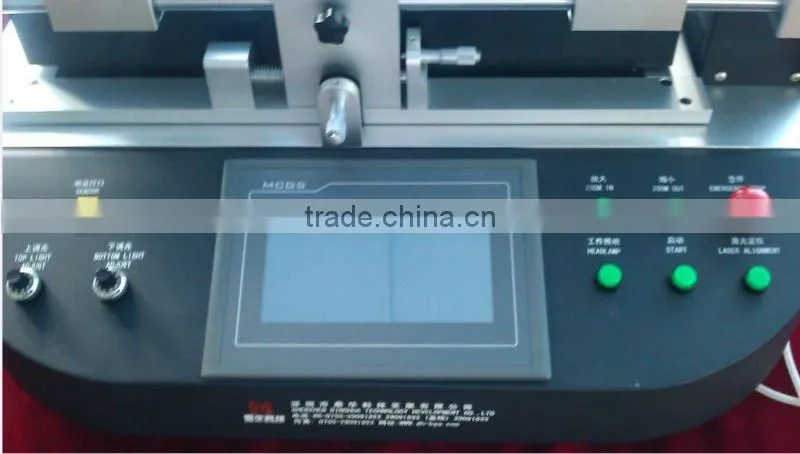

HD touch screen interface, PLC control
HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power-off protection device when emergency happen

Company profile

Certificate

chips below can be repaired

This BGA rework machine with 3 years warranty , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, technical support is always available.
