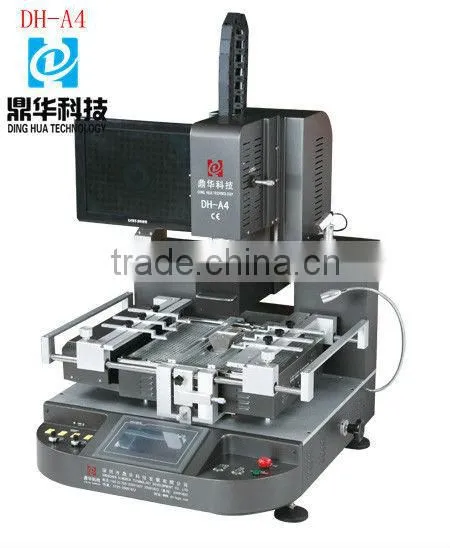

Semi-Automatic, Optical Laser Machine,Three Heating ZoneThree-Heating Zone Optical Laser BGA Rework Station For Laptop,Mobile,Game Box,CCD Camera PCB Board BGA Rework Station DH-A4
.Three Heating Zone
.Optical Laster
.Semi-Automatic

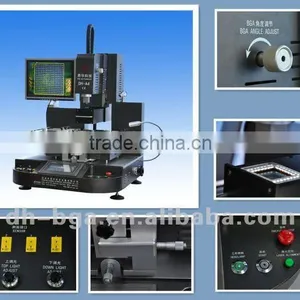

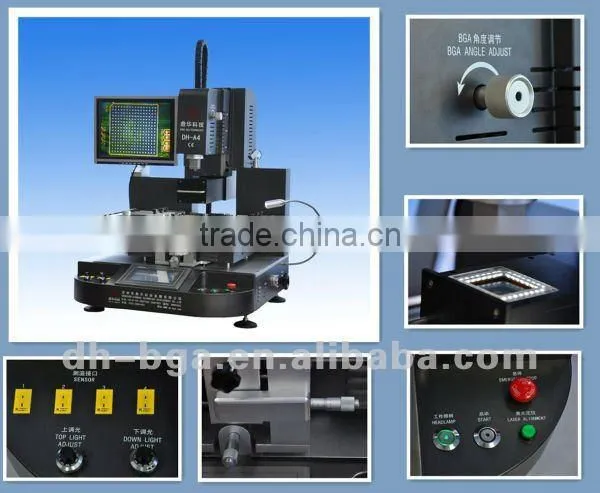

A4 Main Features
*HD touch screen interface, PLC control
*HD color optical alignment system, optical zoom up to 30 times.
*Top heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic.
*Top heater height can be adjust after auto process
*Three independent heaters all can set 8 segments heating, cooling and constant temperature
*K sensor close loop control and automatic temperature compensation system
*Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
*V-groove PCB support for rapid, convenience and accurate positioning
*Powerful cross flow fan,
*Sound hint system. .
*With emergency switch and automatic power-off protection device when emergency happens
Combine
Speicification
Total Power |
6800W |
Top heater |
1200W |
Bottom heater |
second heating zone1200W,third heating zone4200W( external a large heating area to accommodate all kinds of PCB board ) |
power |
AC220V±10% 50/60Hz |
Dimensions |
L750×W1020×H1000 mm |
Positioning |
V-shaped slot, PCB bracket can be adjusted in the X direction and outside with universal fixture |
Temperature control |
(K Sensor) ,(Closed loop) |
Temp accuracy |
±2degree |
PCB size |
Max 430×460 mm Min 22×22 mm |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
5pcs,(optional) |
Net weight |
91kg |
Product Decompose
| Top Heater |
Two in one of Placement head and heater. Temperature controlling and alignment are very accurate. |
| Panasonic Server Control, heating system and placement system can be adjusted to up and down automatically(automatic placement and soldering | |
| Material | Thick material is used, make the machine more stable and firm |
Excellent heating element, BGA soldering and desoldering process can be precisely controlled. |
|
|
The second heater adjustment knob. Effectively control the distance between the PCB board and bottom nozzle. |
|
| Screen |
16 HD display screen. Image clearly. Original Japan Imported CCD Camera System |
| Solder ball and solder joints butt imaging map. Use HD adjustable CCD camera color lens system. | |
| Temperture sensor | Know the actual temperature according to the temperature sensor port at any time. 4 Temperature sensors, can measure temperature profiles of 4 corners for BGA accurately. |
| PLC control | Original Taiwan Delta PLC system; Japan Imported Panasonic Controller; Japan Imported original Omron relays |
| Leakage Air Switch | Leakage Air Switch is used, which can secure your safety fully. |
| Big power of Cross flow fan. | Cooling the PCB board soon, to prevent the deformation of PCB board. |
| Touch Screen | Kunlun State Touch Screen temperature profile can be refreshed quickly and can display the temperature synchronization. |
