Help CenterDinghua Hot Air HD Touch Screen Laptop Mobile Motherboard Chip Repair Kit,bga Repair Kit DH-A1
Related Products
-
Dinghua Best Price! Bga Repair Tool for Vga Bga South Brige North Brige Chip Repair,repair StationUS$ 600 - 1,000MOQ: 1 Set -
Dinghua Digital Panel Meter Infrared Motherboard Chip Repair Machine Bga Replacement Machine DH-6500US$ 300 - 450MOQ: 1 Set
-
Dinghua Vacuum Reflow Tablet Motherboard Pcb Repair Machine DH-C1US$ 1 - 700MOQ: 1 Set
-
Dinghua Laser Optical Alignment Machine Xbox 360 Reballing Kit DH-A2US$ 4,100 - 5,000MOQ: 1 Piece
-
Dinghua 3 Zones HD Touch Screen Laptop Mobilde Motherboard Chip Repair Machine,PC Repair Shop DH-A1US$ 800 - 1,500MOQ: 1 Set

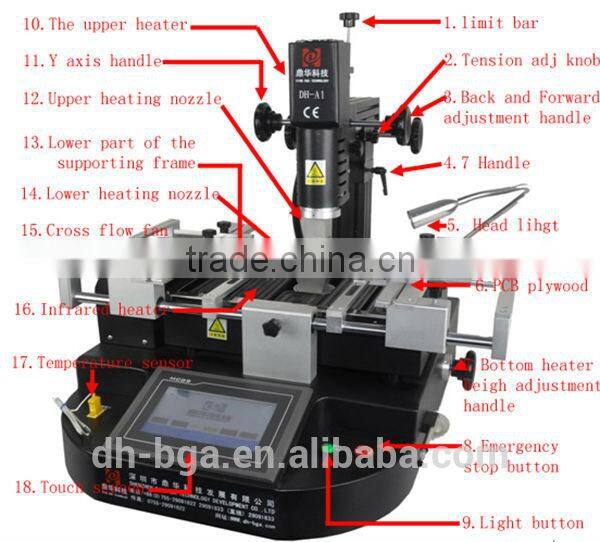

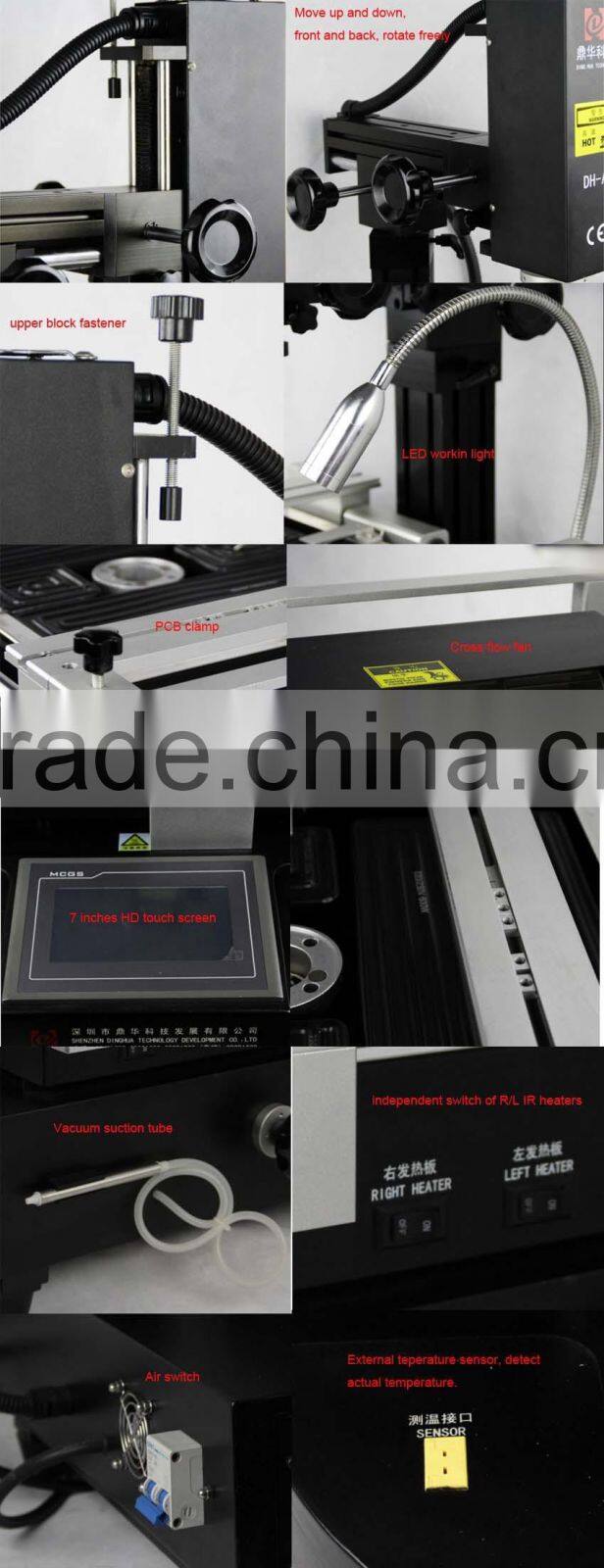

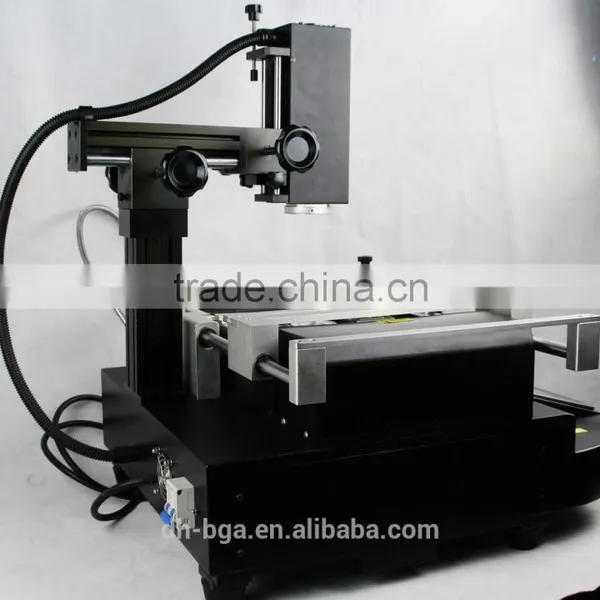

Detail picture of bga repair kit DH-A1:
Specification of BGA Repair kit DH-A1:
Total Power | 4800W |
Top heater | 800W |

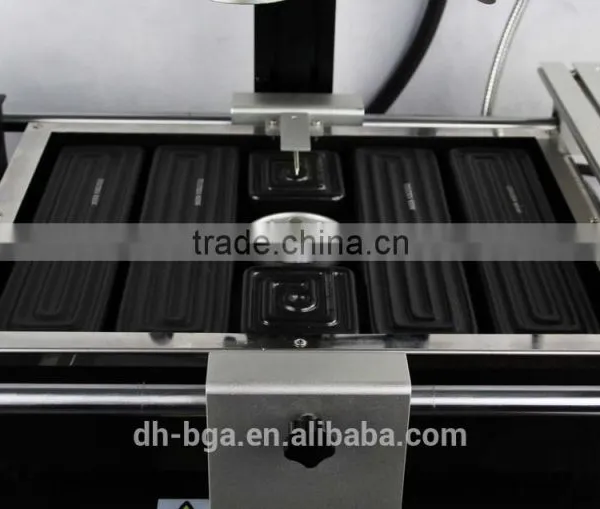

Bottom heater | 2nd 1200W, 3rd IR heater 2700W |
Power | AC220V±10% 50Hz |
Lighting | Taiwan led working light, any angle adjusted. |
Operation mode | Drawer style HD touch screen, intelligent conversational interface, digital system setting |
Storage | 50000 groups |

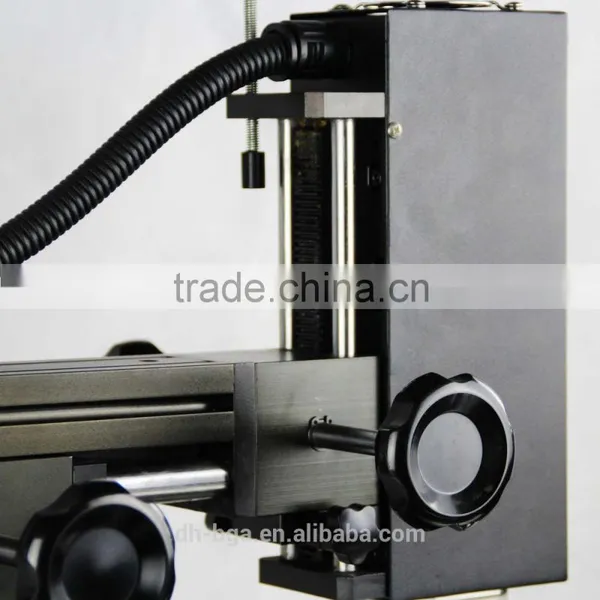

Top heater movement | Right/left, frontward/backward, rotate freely. |
Positioning | Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control | K sensor, close loop |
Temp accuracy | ±2℃ |
PCB size | Max 420×400 mm Min 22×22 mm |
BGA chip | 2x2 - 80x80 mm |
Minimum chip spacing | 0.15mm |
External temper sensor | 1pc |
Dimensions | 640*630*560mm |
Net weight | 40KG |
Features:
1.Embedded industrial PC, HD touch screen conversational interface, CPU control unit, human-machine interface operation, multi-functional integrated control, human structure design, optional numbers storage, apply temperature curve freely. With multi-functions: “keep same temperature”, “instant curve analysis” and “voice warning before heating finish”. Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.
2.high precise k-type thermocouple closed-loop control and CPU control unite, with temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
3.V-groove PCB works for rapid, convenient and accurate positioning, which can suitable for all kinds of PCB board positioning.
4.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
5.With different size of magnet nozzles, easy replace and install, rotate freely 360°, any size can be custom if need. Titanium alloy material, never deformation, never rusty

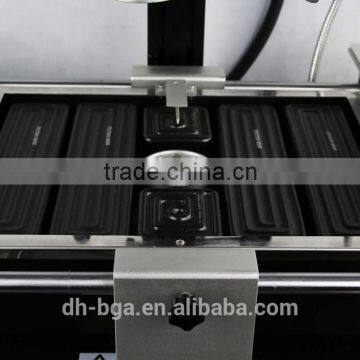

6.Three heating zones can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in touch screen conversational interface. Meanwhile PID calculation to control heating process more accurate and more stable.
7.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
8.USB 2.0 interface, download current temperature curve and storage conveniently. Also, control touch screen with mouse.

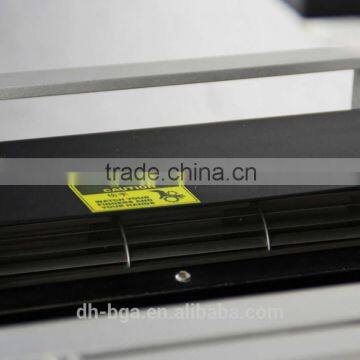

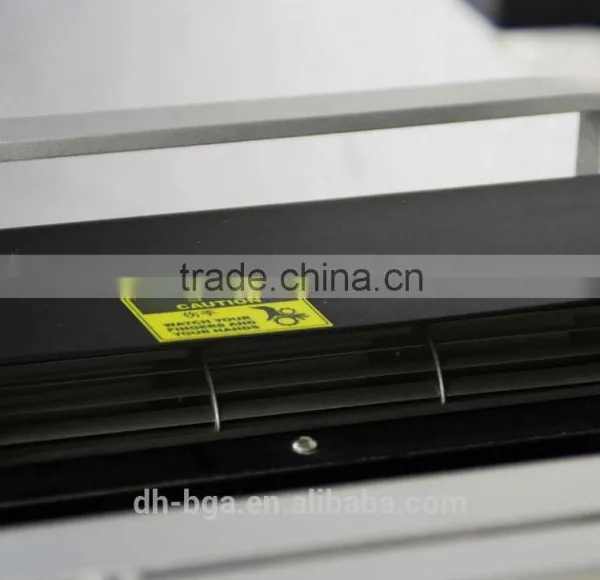

9.Powerful cross flow fan, fast cooling for PCB and machine. With vacuum sucker, to pick up bga chip conveniently after heating.
10.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
11.CE certification approval. Double protection: Overheating guard + emergency stop function.
Certification:
Our product packing:
Welcome to our company
Our service:
1.Warranty: 1 year for the whole machine and 3 years for the heating wire.
Oversea engineer available to service machinery overseas
2. Customization: We provide OEM services.
3.Your inquiry will be replied in 24 hours.
4.Techology support:life-time maintenance.if you have time ,welcome to our company,we will arrange engineers
to show you the operation.
5.24 hours technical support by email or calling.
6.Demo viedo of the machine are available.
Payment:
We can accept Western Union, PayPal, T/T payment. If you want other payment methods,
please kindly inform us.
How to contact us?
send me inquiry or chat now!!
You want to know more about bga repair kit DH-A1,welcome to talk with
me,I will reply you at my first time.Waiting for you!!
Skype:Vic8939
Wechat:18207401692
TEll:+86-18207401692
