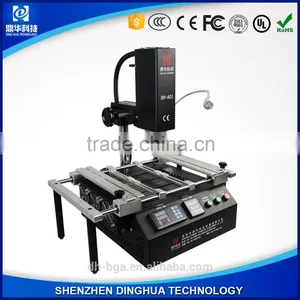

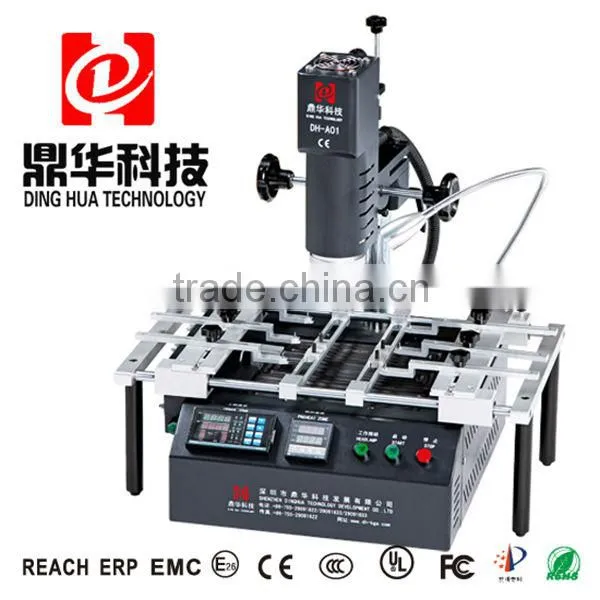

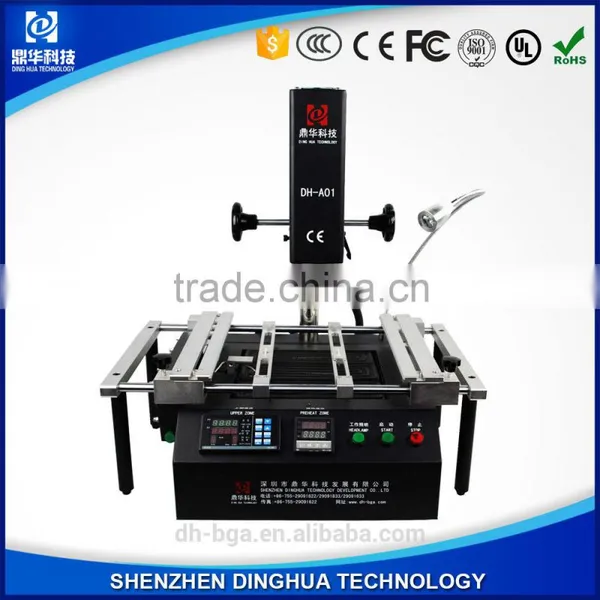

Help CenterDinghua Best Price Digtal Panel Meter South Brige North Brige Vga Bga Repair,bga Rework Tool DH-A01 DH-A01
Related Products
-
Dinghua BGA Rework Machine ,PCB Assembly Machine DH-A1LUS$ 700 - 1,600MOQ: 1 Set -
Dinghua Hot Air HD Touch Screen Laptop Mobile Motherboard Chip Repair Kit,bga Repair Kit DH-A1US$ 800 - 1,500MOQ: 1 Set
-
Dinghua Best Price! Bga Repair Tool for Vga Bga South Brige North Brige Chip Repair,repair StationUS$ 600 - 1,000MOQ: 1 Set
-
Dinghua Digital Panel Meter Infrared Motherboard Chip Repair Machine Bga Replacement Machine DH-6500US$ 300 - 450MOQ: 1 Set
-
Dinghua Vacuum Reflow Tablet Motherboard Pcb Repair Machine DH-C1US$ 1 - 700MOQ: 1 Set
What is paramter DH-A01?
Total Power |
2600W |
Top heater |
800W |
Bottom heater |
1800W |
Power |
AC220V±10% 50/60Hz |

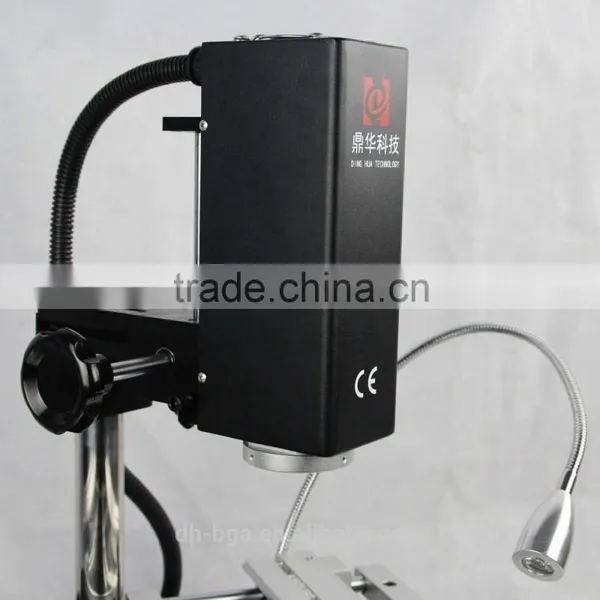

Top head movement |
Up / down, rotate freely |
Lighting |
Taiwan led working light, any angle adjusted. |
Storage |
Store 10 groups of temperature profiles |
Positioning |
V-groove, PCB support can be adjusted in X, Y direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2℃ |
PCB size |
Max 290mm*310mm Min20mm*20mm |
BGA chip |
5*5~55*55 mm |
Minimum chip spacing |
0.15mm |
Dimensions |
L470*W370*H500 mm |
Net weight |
Approx 15KG |

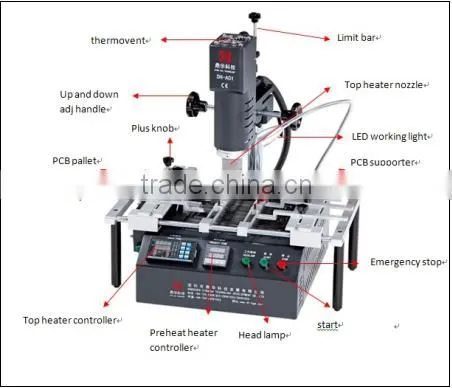

What is features of DH-A01?

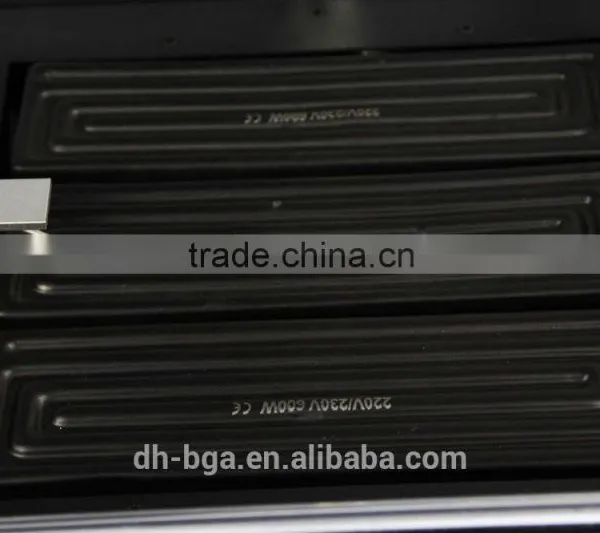

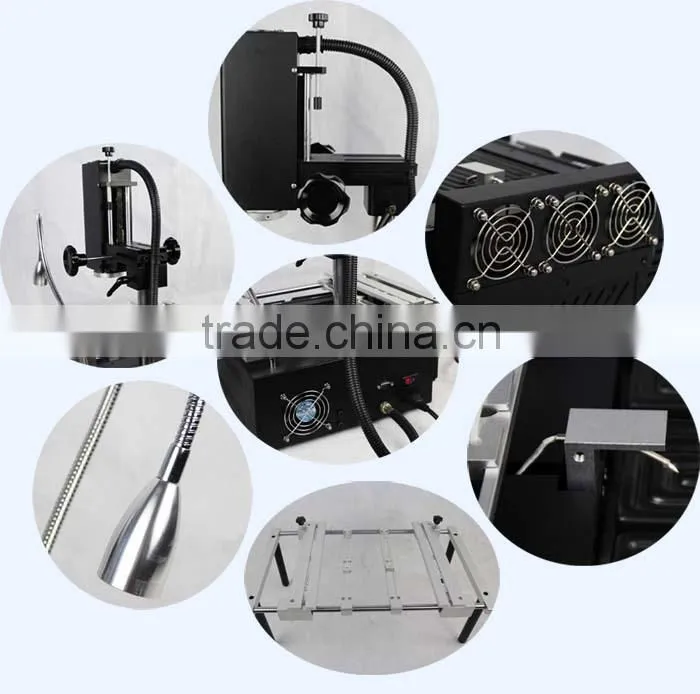

- Adopt two-zone design: top hot iar heating, bottom ceramic infrared pre-heating zone.

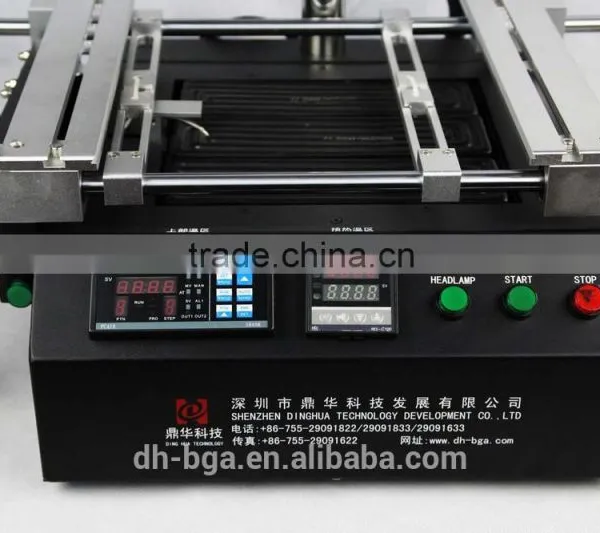

- Two independent high precise digital panel meter controllers, can store 10 groups of temperature profiles. 8 segments (up/down) + 8 segments constant temperatures in one group.
- High precise K-type thermocouple close-loop control + automatic temperature compensation system to enable precise temperature deviation on ±2℃.
- V-groove PCB table + universal fixture suitable for all kinds of PCB repairing, rapid, convenient and accurate positioning,

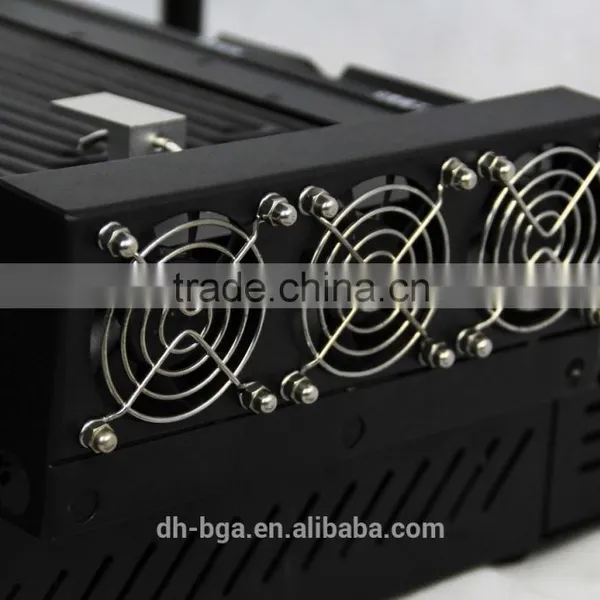

- With powerful cooling fan, fast cooling for pcb and machine after heating.
- With different size of magnet nozzles, easy replace and install, rotate freely 360°
- With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time.
- Double protection: Overheating guard + emergency stop function.
- CE certification approval.
Iso9001 and CE certifate:
Warranty:
Three years warrantyfor heater wires of machine, one year warranty for
other parts. life long free technical support.(two years longer then other
companies.)
As we know, heaters are the most important part in the machine. Heater wires
are offered free in three year, other parts free in one year.
Our heater wires are imported from German, high quality and durable,
enables us to offer a longer time warranty than other companies.
