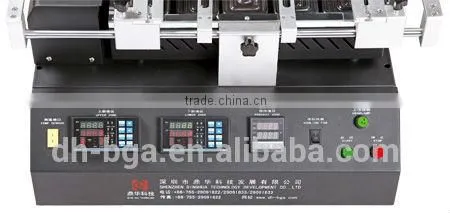

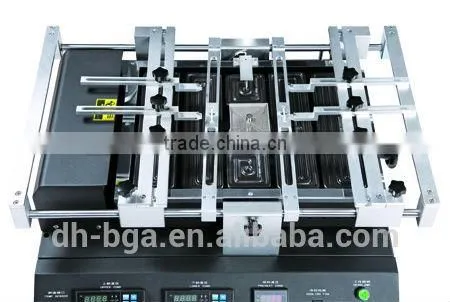

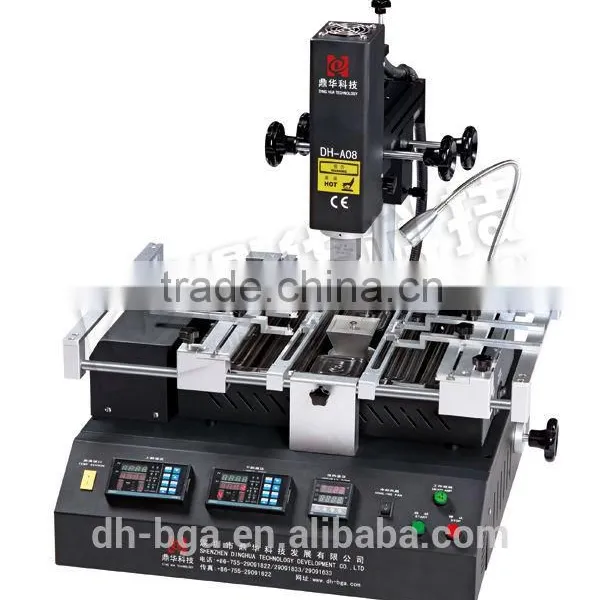

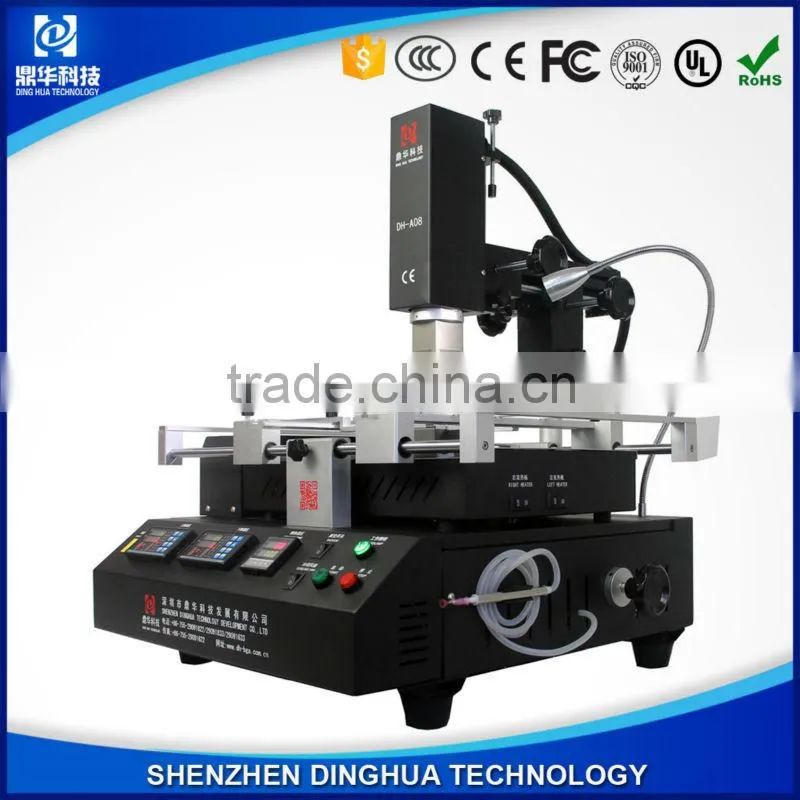

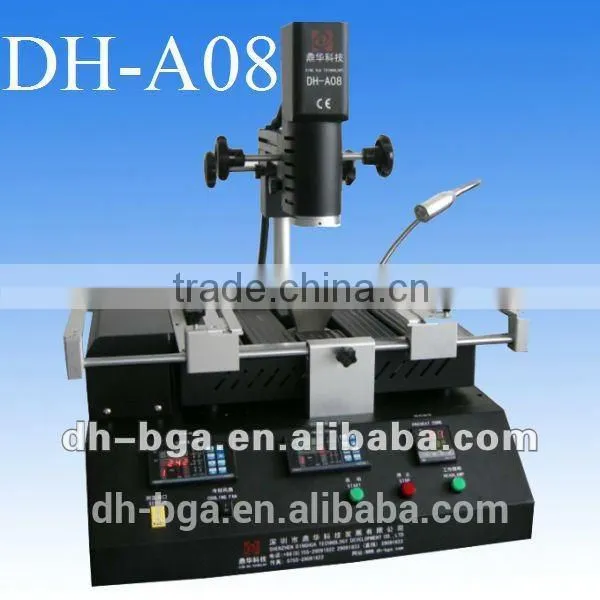

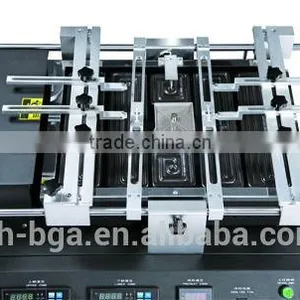

Bga rework station bga repair station bga welding kit Dinghua technology!DH-A08
Warranty:Three years warranty for heaters.one year for other parts of machine.(two years longer than other companies)
Our product have Iso9001 and CE certificate:
What's the specification of DH-A08?
- Total Power: 4800W
- Top heater: 800W
- Lower heater: 1200W Bottom heater: 2700W
- power: AC 110V / 220V
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±2 degree
- PCB size: Max 400x400mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx L570×W520×H570 mm
- Net weight: Approx 33KG
we can learn the DH-A08 by features:
1,Three independent heaters all can set 8 segments heating, cooling and constant temperature, save up to tentemperature profiles. IR preheat area can be controlled according to PCB size.
2,K sensor close loop control and automatic temperature compensation system. It
combineswith temperature module, which enables temperature accuracy to ±2°C
3,Moveable heater, easy to operate.
4,Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
5,V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
6,Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
7,Sound hint system. There is an alarm before the completion of each desoldering and soldering.
8,CE certification, with emergency switch and automatic power-off protection device when emergency happens
About Dinghua Technology!
Packing of DH-A08:
Our guarantee:
1.Source the latest,hottest and best quality goods possible.
2.Offer most competitive price
3.Speed and high quality customer service and ofter-sale service possible.
4.Deliver goods to customer all over the world with speed and precision.
FAQ
Payment terms
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform
us.
Delivery Time
Within 2 working days after the full payment.
LOgo/Brand
Customer's designs and logos are welcome,we can silk-print it.
Demo Video Available
Videos of operating the machine are available.
