DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool

DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool photo-1
DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool photo-2
DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool photo-3

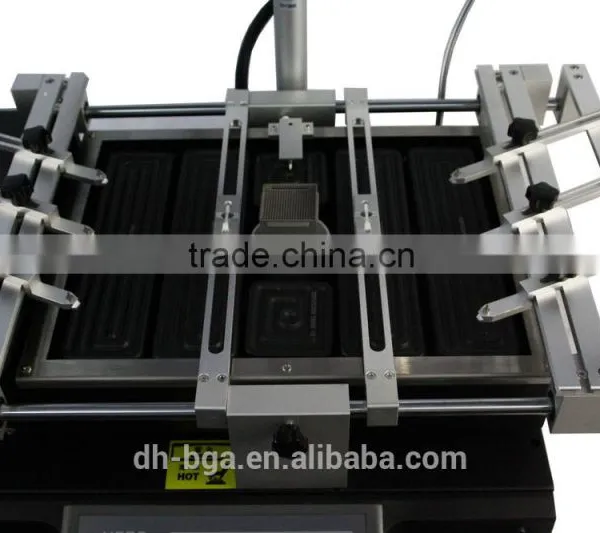

DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool photo-4

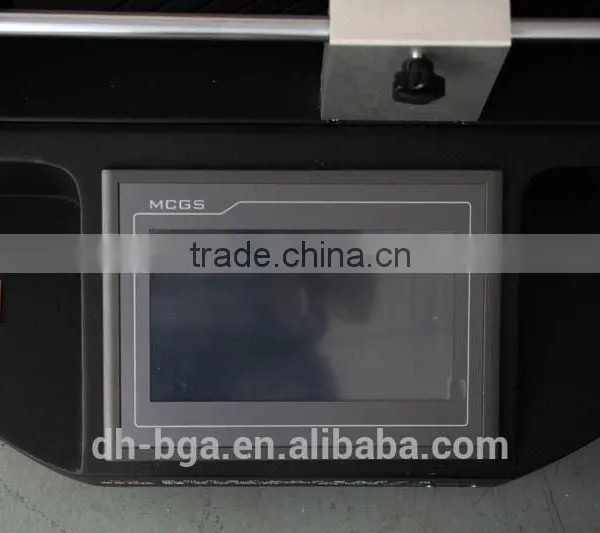

DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool photo-5
DH - C1 Bga Reballing Station Bga Rework System Bga Welding Tool photo-6
US$ 400 - 1,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DINGHUA
Model Number:
DH-C1
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name DINGHUA
Model Number DH-C1
Voltage AC220V±10% / 110V 50/60Hz
Current 20A
Rated Capacity 3200W
Rated Duty Cycle 100%
Dimensions approx 500*590*690mm
Weight Approx 32KG
Usage bga rework station for motherboard chip repair
Certification CE ISO 9001 2008 ROHS
After-sales Service Provided Engineers available to service machinery overseas

DH - C1 bga reballing station bga rework system bga welding tool







DH - C1 bga reballing station bga rework system bga welding tool






Detail pictures of DH-C1:

DH - C1 bga reballing station bga rework system bga welding tool

DH - C1 bga reballing station bga rework system bga welding toolDH - C1 bga reballing station bga rework system bga welding toolDH - C1 bga reballing station bga rework system bga welding tool



Specification:





Total Power

4800W

Top heater

800W

Bottom heater

Lower heater: 1200W, Bottom IR: 2700W

Power

AC220V±10%     50/60Hz

Top heater movement

Right/left, frontward/backward, rotate freely.

Lighting

Taiwan led working light, any angle adjusted.

Storage

50000 groups of temperature profiles

Operation mode

HD touch screen, intelligent conversational interface, digital system setting

Positioning

Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.

Temperature control

K SensorClosed loop

Temp accuracy

±2℃

PCB size

Max 400mm*400mm  Min20mm*20mm

BGA chip

2*2~80*80mm

Minimum chip spacing

0.15mm

Temper sensor

1pc

Dimensions

L560×W590×H690 mm

Net weight

Approx 32KG



 Accessories:

DH - C1 bga reballing station bga rework system bga welding tool





Packing of DH-C1:



:DH - C1 bga reballing station bga rework system bga welding tool



Shipping

1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.

2. By sea or by air. Please provide us your nearest port.

3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.





Payments

We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.





Warranty

1.All the machine will be well tested for 3 days before sending.

2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty



CE and ISO9001 certificate:

DH - C1 bga reballing station bga rework system bga welding tool



DH - C1 bga reballing station bga rework system bga welding tool







About our:

DH - C1 bga reballing station bga rework system bga welding tool



DH - C1 bga reballing station bga rework system bga welding tool





Guarntee and after-sale service:

1. We provide you the friendly English User manual for free.

2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the     problems in 24 hours.

4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for           technical support always.
