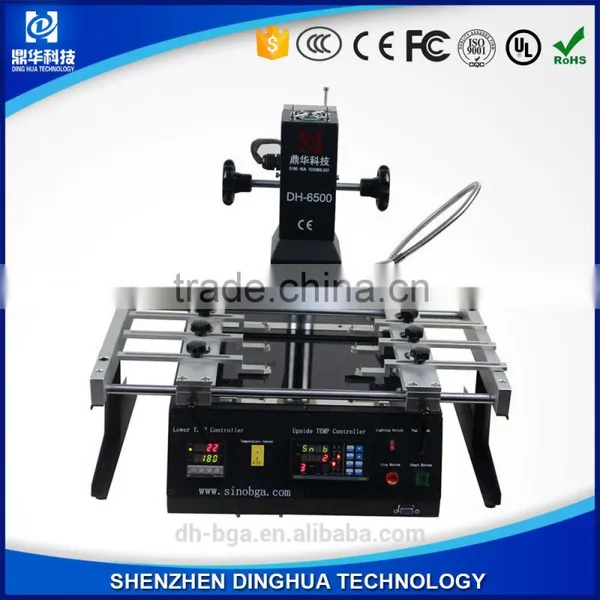

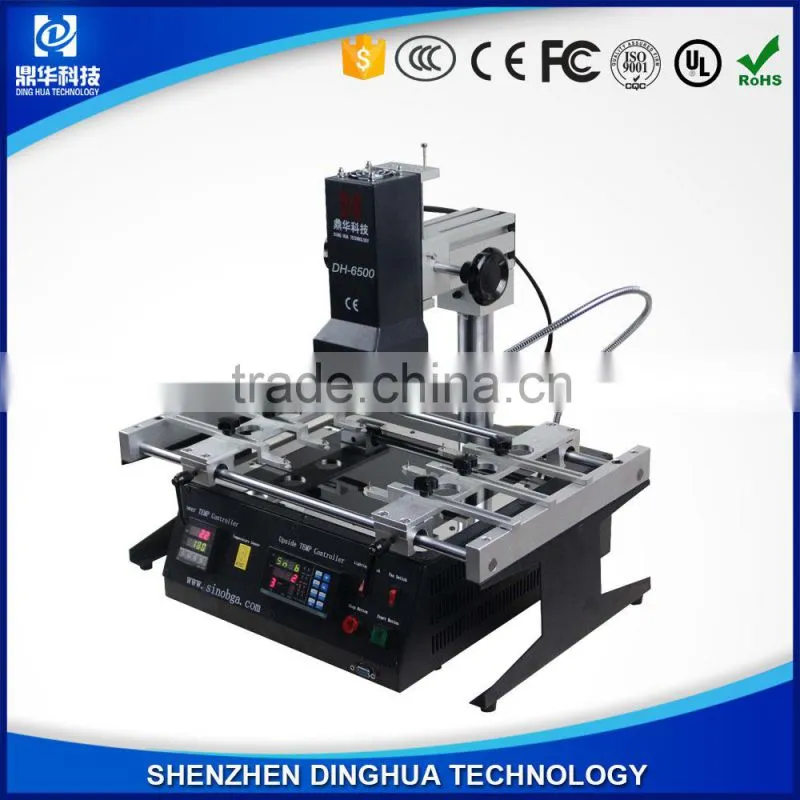

Bga desoldering unit rework syatem laptop mobile repair machine DH-6500
DH-6500 Parameter List:
Power supply |
AC220V±10% / 110V 50/60Hz |
Power |
2800W |

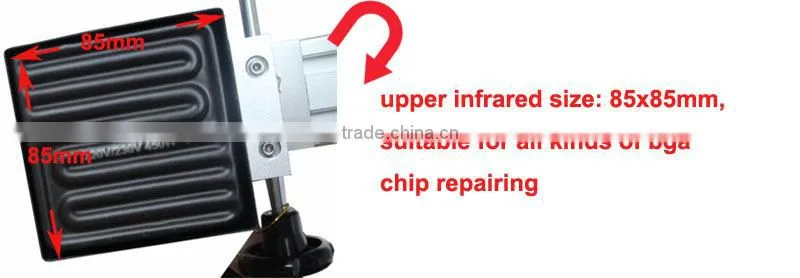

Top heater |
Hot air 800W |
Bottom heater |
Infrared 1800W |
Temperature control |
K-type thermocouple sensor closed loop control, independent heating |
Temperature accuracy |
±2°C |
Positioning |
V-groove PCB support, and with external universal fixture |
Workbench fine-tuning |
±15mm forward/backward,±15mm right/left |
Placement Accuracy |
±0.01MM |
BGA chip |
5*5mm-55*55mm |
PCB size |
20mm*20mm-300mm*300mm |
Minimum chip spacing |
0.15mm |
Machine dimension |
(L*W*H): 47*37*50cm |
Packing dimension |
(L*W*H): 48*41*53cm |
NW/GW |
14.5kg/17kg |

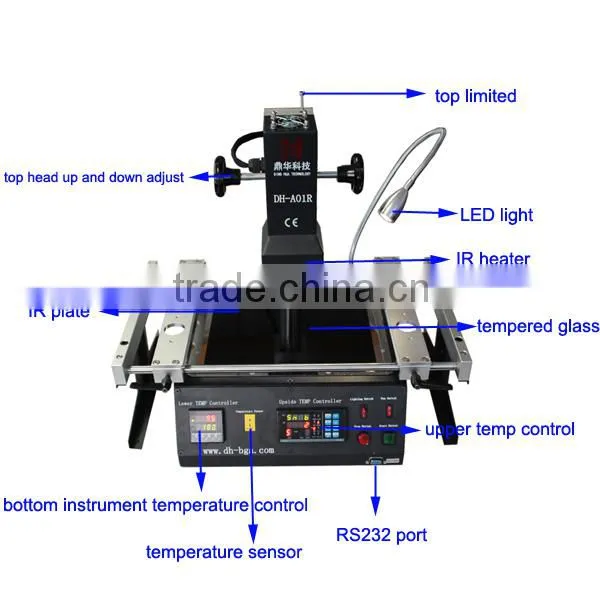

DH-6500 Main Features:
1. Two -zone design motherboard repair machine, top hot air heating and bottom IR heating , independently control by high-precision temperature controller, which can set 8 heating and cooling time period, and store 10 groups of temperature settings
.
2. High precise k-type thermocouple closed-loop control and automatic temperature compensation system, with accurate temperature module to enable the temperature deviation to be within 2 degrees. External temperature measurement connector makes accurate operating be possible.
3. This PCB repair machine has V-groove PCB support works for rapid, convenient and accurate positioning, can meet all kinds of PCB board of positioning.

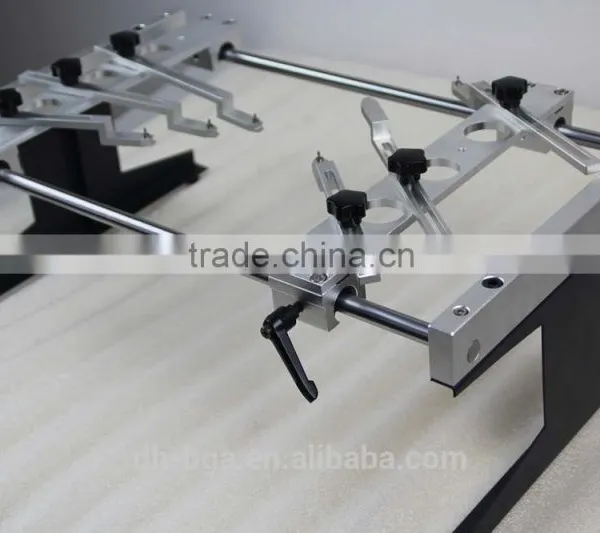

4. Flexible and convenient removable fixture on the PCB board can protect the PCB fringe devices from damaging and transmuting. It can also adapt to irregular BGA chips' required.
5. Various sizes of BGA alloy nozzles, easily installation and replacement, can be adjusted 360 degree.
6. 8 segments of temerature rising (cooling) and 8 segments of constant temperature controlling

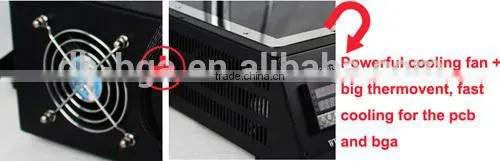

7. Warning rings After demolition and completion of welding; the large flow cross-flow fan by manual begins to work to cool the PCB board , preventing the deformation of PCB board and ensuring the success rate of the welding.
8. CE, ROHS approved, it is equipped with emergency stop switch and automatic power-off protection device to ensure the safety of operating the machine.

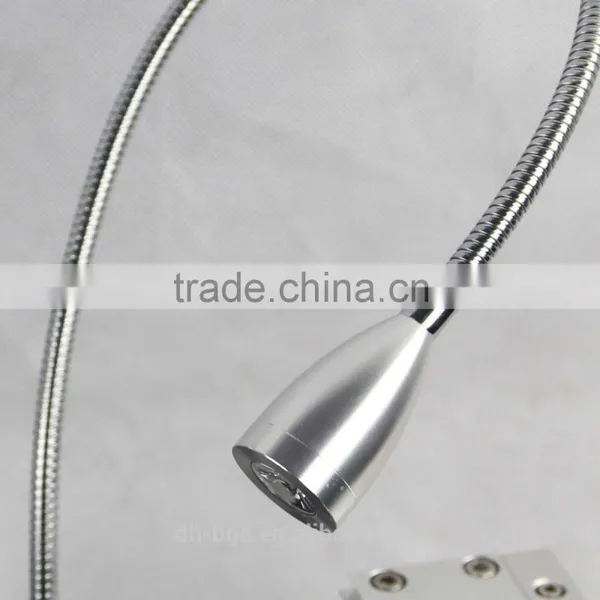

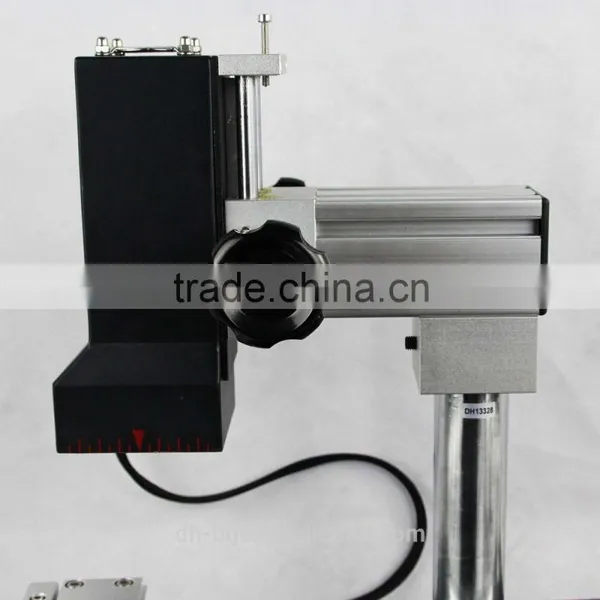

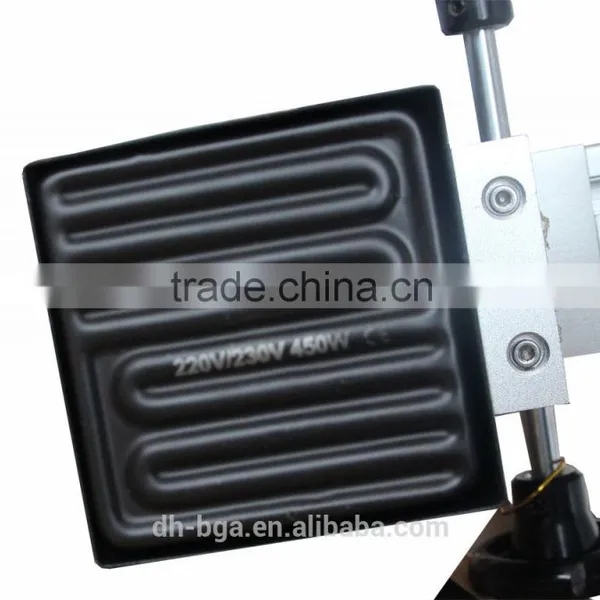

BGA solder 360 degree comprehensive pictures :
Packaging:
1, DH-A01R BGA rework station 1 set
2, DH-A01R specification(manual) 1 copy
3, abnormity clip 6 pieces
4, blossom knob 6 pieces
5, supporting Screw 4 pieces
6, vacuum pen 1 piece
7, external Temperature sensor 1 piece
8, tweezers 1 piece
9, usb cable 1 piece
10, Curve CD 1 piece
All of our machine will packed carefully with standard plywooden box.
Our service:
Customization: We provide OEM services.
Warranty: 1 year for the whole machine.
Oversea engineer available to service machinery overseas
Company introduce:
Shenzhen DingHua Technology Development Co., Ltd., is a professional manufacturer specializing in developing various BGA rework stations and accessories around it.
Certifications
Pls feel free to contact me for further details!
FAQ
Payment terms
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Delivery Time
Within 2 working days after the full payment.
LOgo/Brand
Customer's designs and logos are welcome,we can silk-print it.
Demo Video Available
Videos of operating the machine are available.
