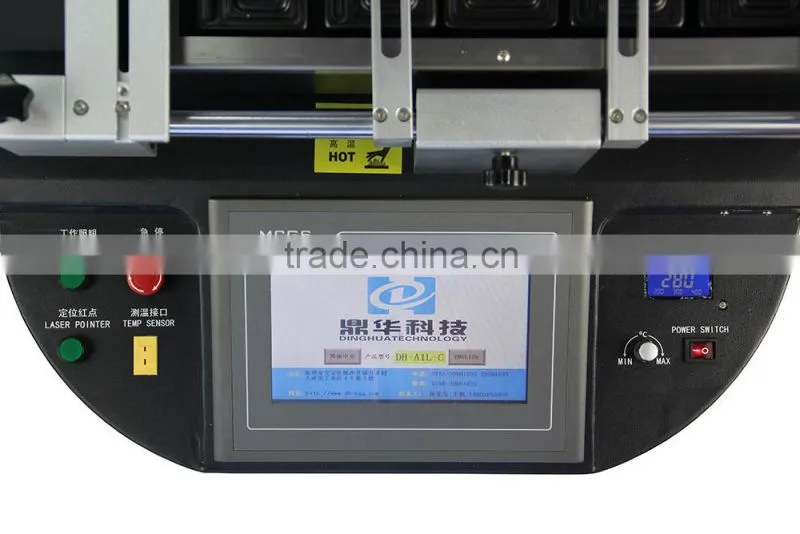

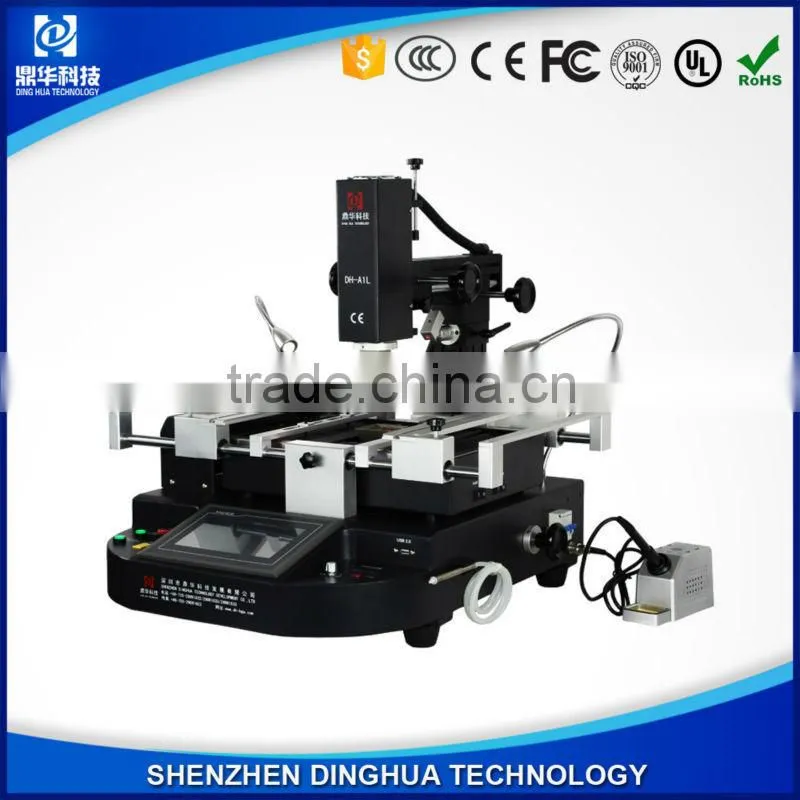

Main structure of DH-A1L:
More details about DH-A1L:
Features:
1.Embedded industrial PC, HD touch screen conversational interface, CPU control unit, human-machine interface operation, multi-functional integrated control, human structure design, optional numbers storage, apply temperature curve freely. With multi-functions: “keep same temperature”, “instant curve analysis” and “voice warning before heating finish”. Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.
2.high precise k-type thermocouple closed-loop control and CPU control unite, with temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
3.V-groove PCB works for rapid, convenient and accurate positioning, which can suitable for all kinds of PCB board positioning.
4.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
5.With different size of magnet nozzles, easy replace and install, rotate freely 360°, any size can be custom if need. Titanium alloy material, never deformation, never rusty
6.Three heating zones can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in touch screen conversational interface. Meanwhile PID calculation to control heating process more accurate and more stable.
7.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.

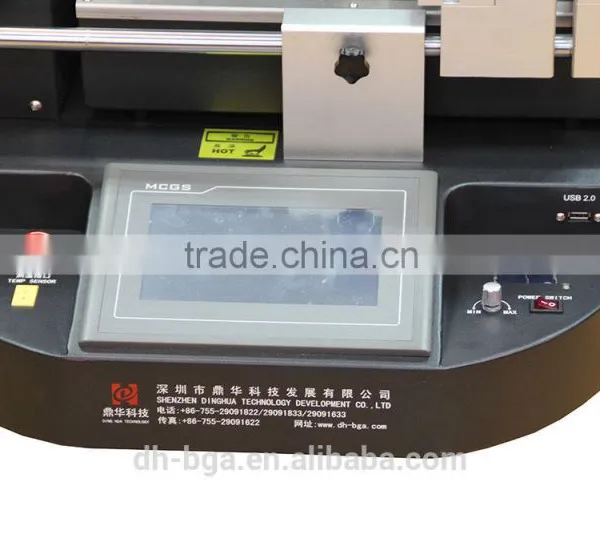

8.USB 2.0 interface, download current temperature curve and storage conveniently. Also, control touch screen with mouse.
9.Powerful cross flow fan, fast cooling for PCB and machine. With vacuum sucker, to pick up bga chip conveniently after heating.
10.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
11.CE certification approval. Double protection: Overheating guard + emergency stop function.
Specification of bga welding station DH-A1L:
Total Power |
4900W |
Top heater |
800W |
Bottom heater |

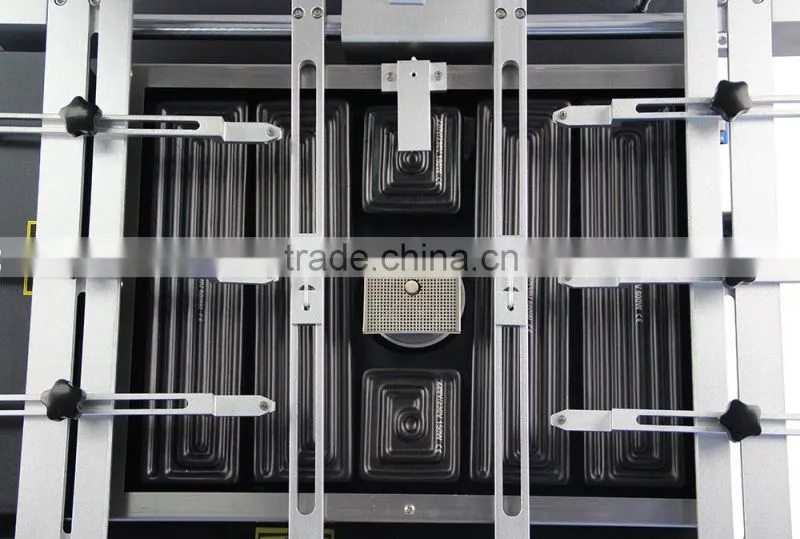

2nd 1200W, 3rd IR heater 2700W |
Digital Iron power |
80W |
Power |
AC220V±10% 50Hz |
BGA positioning |

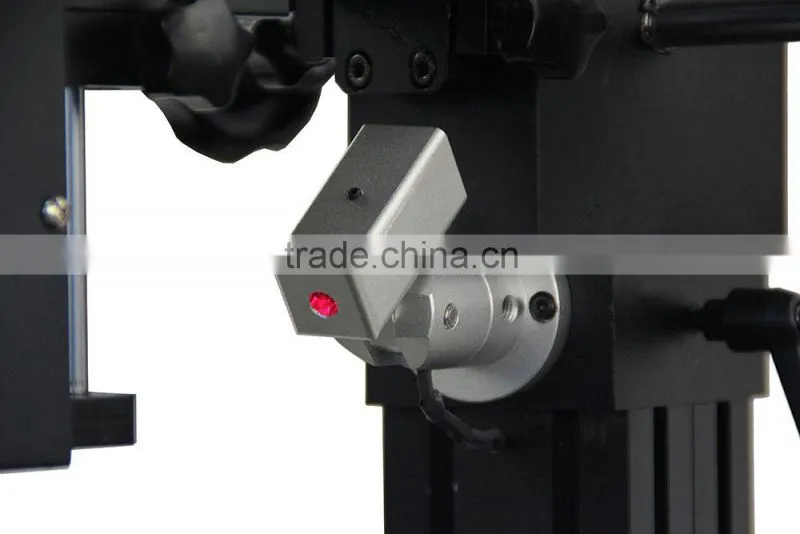

Laser positioning, place pcb on the center rapidly. |
Cleaning tin |
With digital soldering iron, for rapid clean residual tin after desoldering, prevent pcb and bga from oxidize |
Lighting |
Double shadowless LED lights, any angle adjusted freely |
Top heater movement |

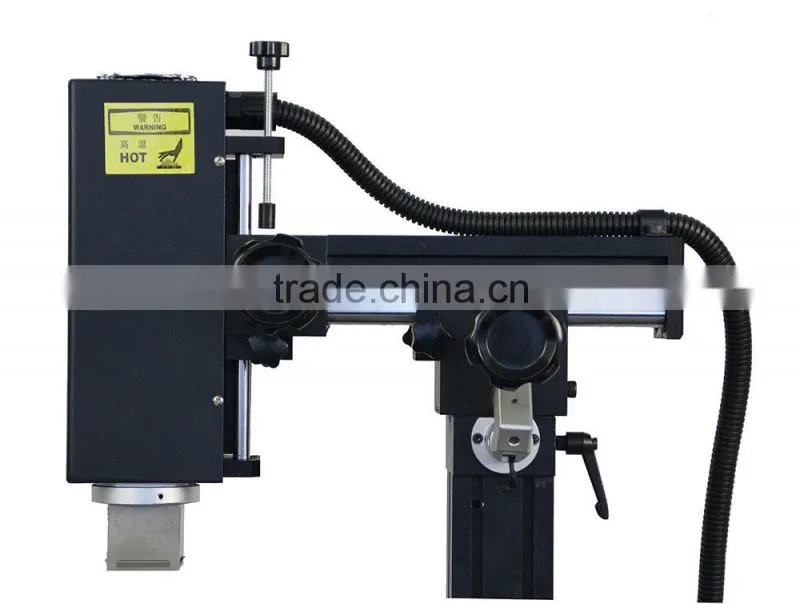

Right/left, frontward/backward, rotate freely. |
Operation mode |
HD touch screen, intelligent conversational interface, digital system setting |
Temperature profile storage |
50000 groups |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±2℃ |
PCB size |
Max 420×400 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L640×W630×H560 mm |
Net weight |
42KG |
About Dinghua Technology!!!
Why select Dinghua?
1.Well-equipped manufacturing facility.
2.Professionalism innovative R&D team, provide professional service for bga rework station solution.
International quality standard range, all our product have got the CE, ISO 9001 2008, Rohs approval.
3.Competitive price. All our machine components select from world class brand (like Omega, Panasonic, SMC, CNB, GS...which ensure safer, convenient speedily operation of our machine.
4.Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on.
5.We offer 3 years warranty for the heater of machine, one year for other parts. Life long technical support.
Our service:
Shipping
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
Payments
We can accept Western Union, PayPal, T/T payment. If you want other payment methods, please kindly inform us.
Warranty
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
How to use the machine?
1.We will provide u with the CD of User Manual and to see how to use.
2.About the temperature setting.pls refer to the Setting Of Temperature Parameters Manual Here
and to see how to set temperature.
