Infrared Rework Machine DH-A01bga Rework Equipment Bga Repair Bga Welder Tool

Name: Infrared Rework Machine DH-A01bga Rework Equipment Bga Repair Bga Welder Tool
Brand: DINGHUA
SKU: 120887619

US$ 1 - 500 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA

Model Number:

DH-A01

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DINGHUA

Model Number DH-A01

Voltage AC220V±10% / 110V 50/60Hz

Current 12A

Rated Capacity 2800W

Rated Duty Cycle 100%

Dimensions L470*W370*H500 mm

Weight Approx 15KG

Usage laptop/mobile repair machine bga rework station

Certification CE ISO 9001 2008 ROHS

After-sales Service Provided Engineers available to service machinery overseas

Infrared rework machine DH-A01bga rework equipment bga repair bga welder tool

Specification:

1.Digital panel meter,PLC Control

2.Hot Air Mix Infrared Heating,Nozzles available

3.Two Temperature zone Independently

4.Easy operation and Economic Model

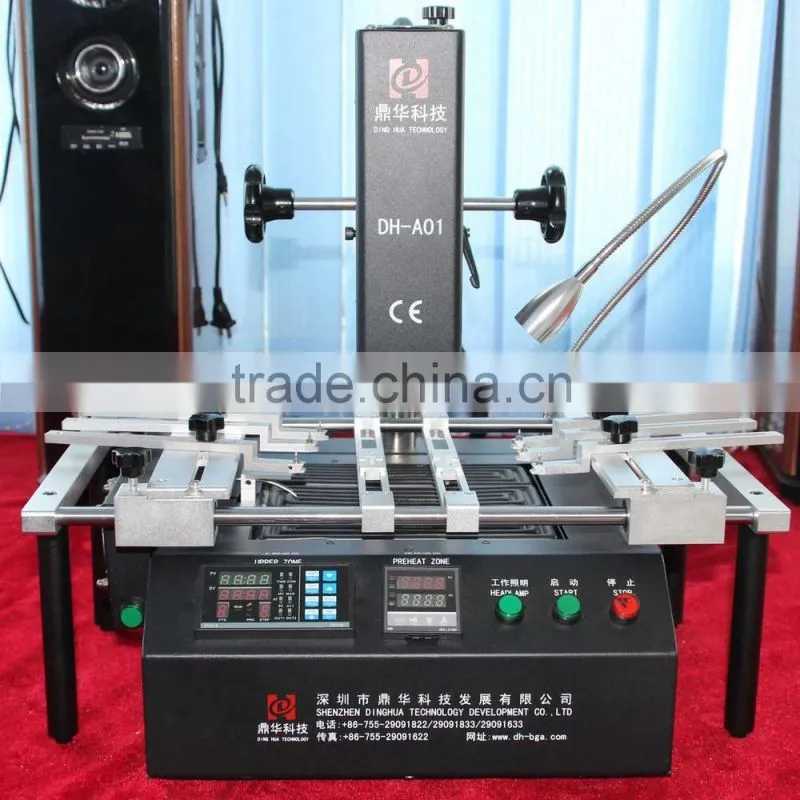

Main structure of DH-A01:

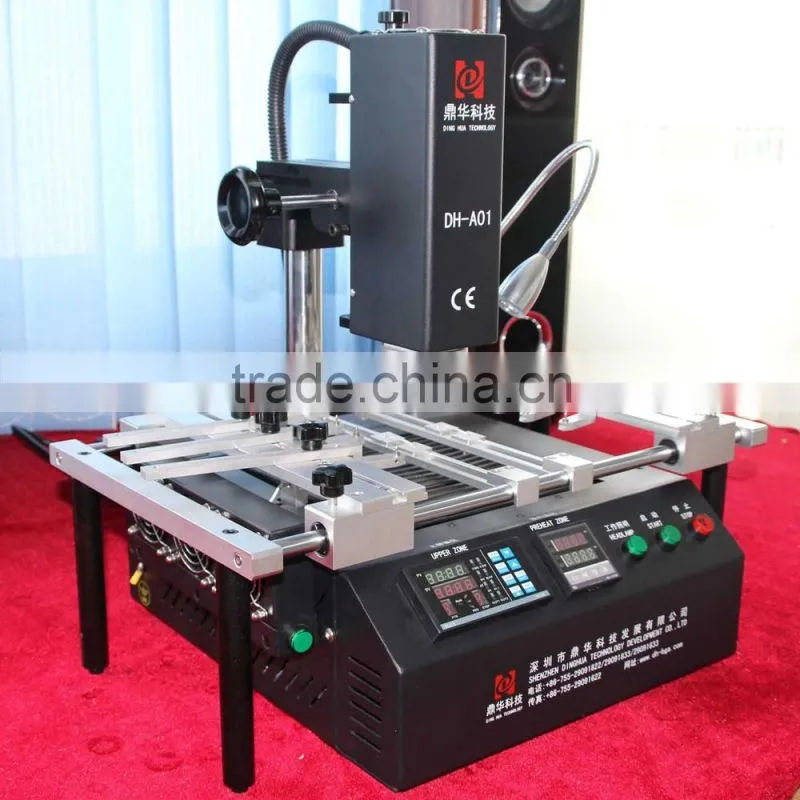

More details of DH-A01:

Accessories:

What is paramter DH-A01?

Total Power	2600W
Top heater	800W
Bottom heater	1800W
Power	AC220V±10% 50/60Hz

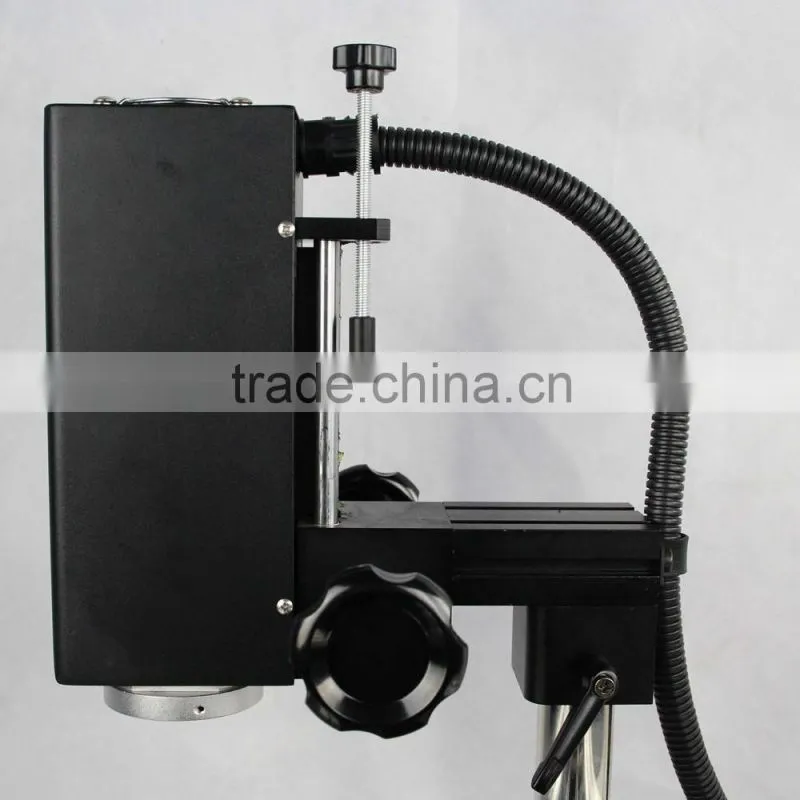

Top head movement	Up / down, rotate freely
Lighting	Taiwan led working light, any angle adjusted.
Storage	Store 10 groups of temperature profiles
Positioning	V-groove, PCB support can be adjusted in X, Y direction with external universal fixture
Temperature control	K Sensor, Closed loop
Temp accuracy	±2℃
PCB size	*Max 290mm310mm Min20mm20mm*

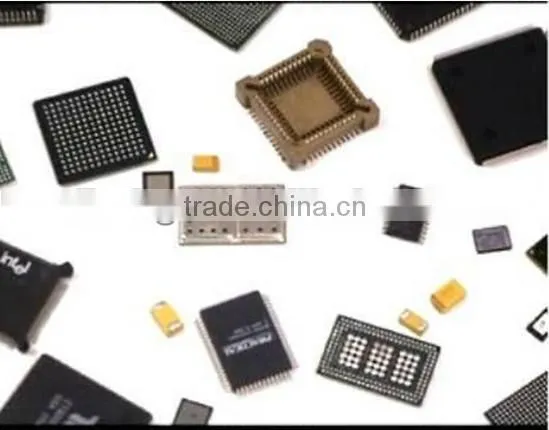

BGA chip	*55~5555 mm*
Minimum chip spacing	0.15mm
Dimensions	*L470W370H500 mm*
Net weight	Approx 15KG

What is features of DH-A01?

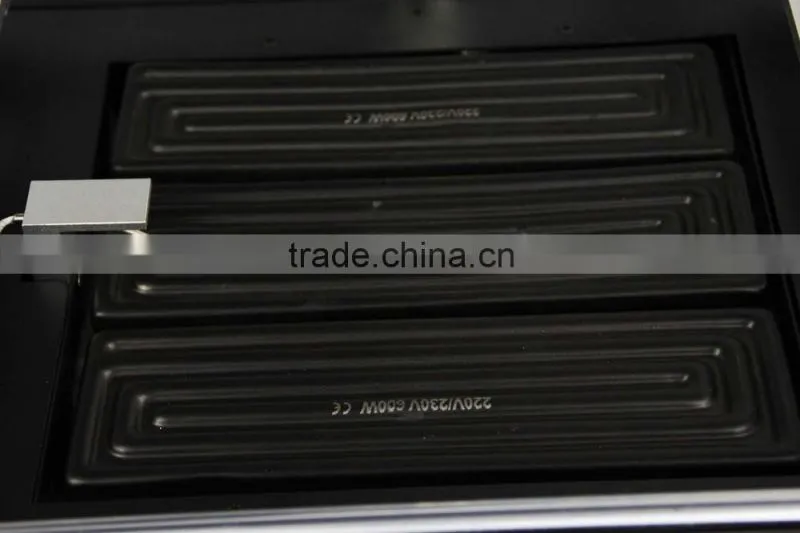

Adopt two-zone design: top hot iar heating, bottom ceramic infrared pre-heating zone.

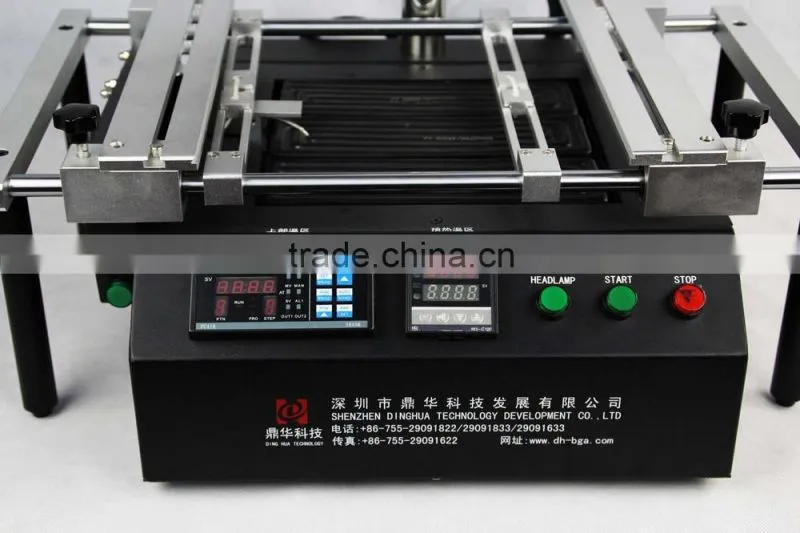

Two independent high precise digital panel meter controllers, can store 10 groups of temperature profiles. 8 segments (up/down) + 8 segments constant temperatures in one group.
High precise K-type thermocouple close-loop control + automatic temperature compensation system to enable precise temperature deviation on ±2℃.
V-groove PCB table + universal fixture suitable for all kinds of PCB repairing, rapid, convenient and accurate positioning,

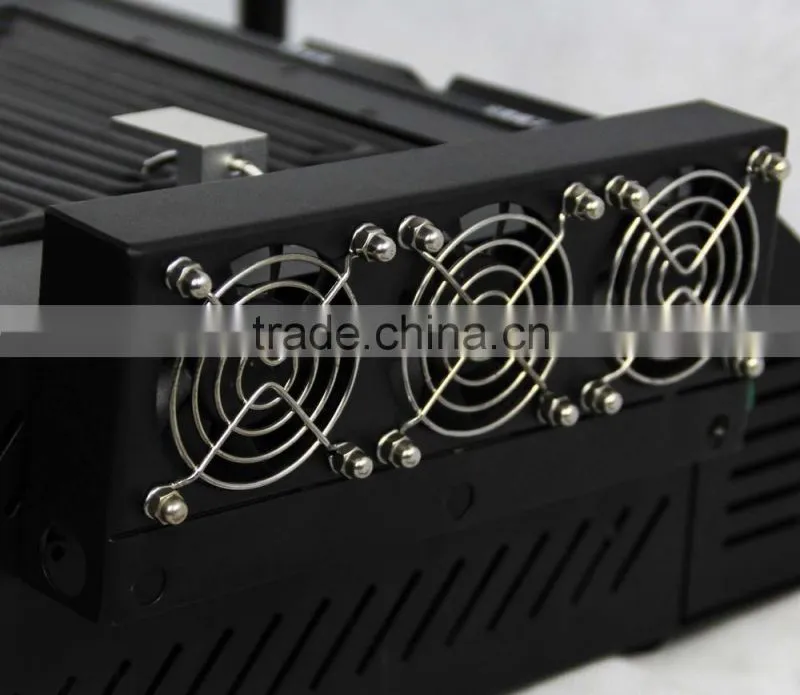

With powerful cooling fan, fast cooling for pcb and machine after heating.
With different size of magnet nozzles, easy replace and install, rotate freely 360°
With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time.
Double protection: Overheating guard + emergency stop function.
CE certification approval.
