Specification of bga rework system DH-A4:
- Total Power: 6800W
- Top heater: 1200W
- lower heater: 1200W
- Bottom heater: 4200W
- power: AC220V/AC110 optional
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±1 degree
- Workbench fine-tuning: ±15mm forward/backward ±15mm right/left
- Placement accuracy: ±0.01mm
- Camera magnification: 10x-220x
- PCB size: Max 530x490mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 780x740x890mm
- Net weight: Approx 97KG
Main Features of bga rework system DH-A4:
1 HD optical alignment system design, optical zoom up to 30 times. Alignment fine-tuning accuracy can be 0.01mm
2 HD touch screen interface, PLC control.
3. 3 independent heaters, they can control the temperature more precisely.
4. Top heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic.
5. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
6 Cross- flow fan to cool PCB board after remove and reflow to ensure welding effective.
7. Sound hint system. There is a alarm before the completion of each work
8. Automatical positioning, soldering and desoldering.

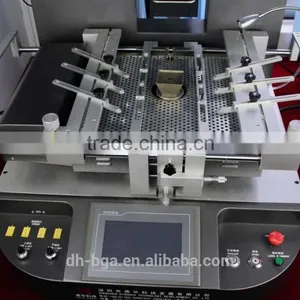

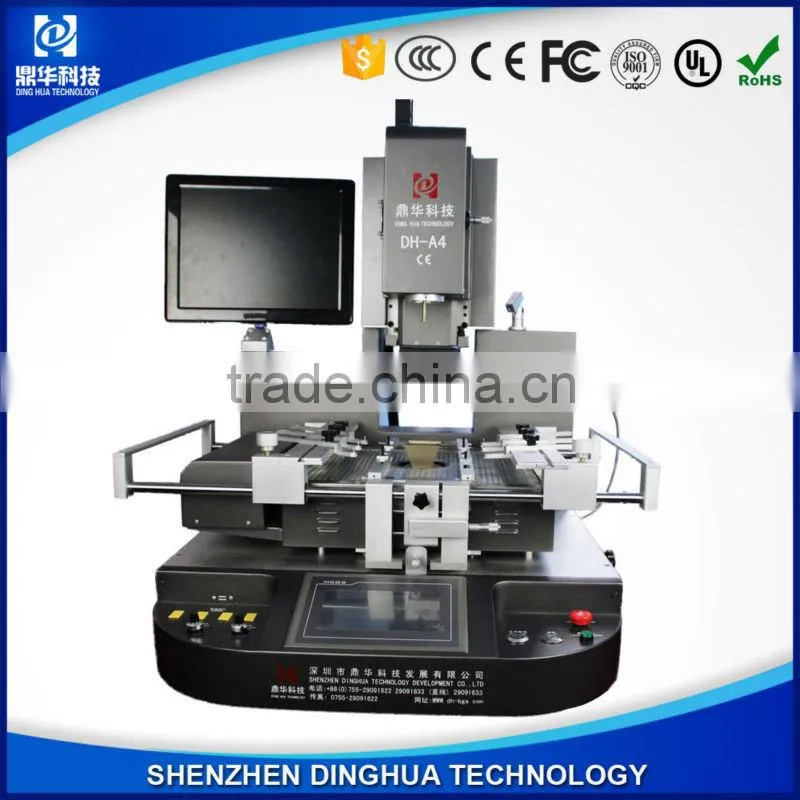

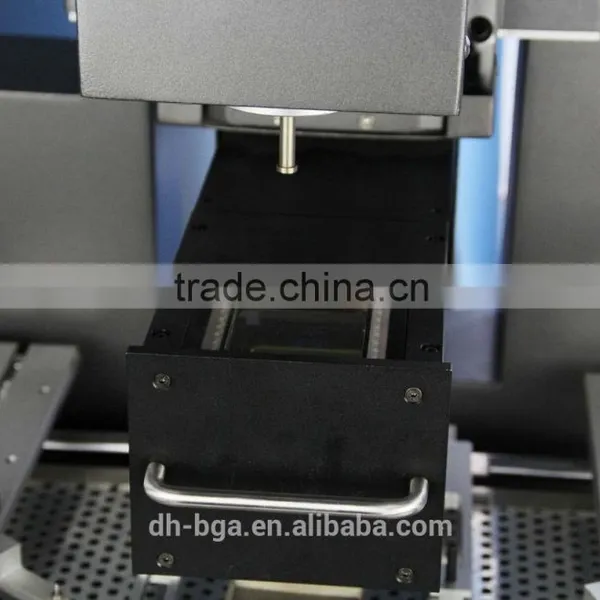

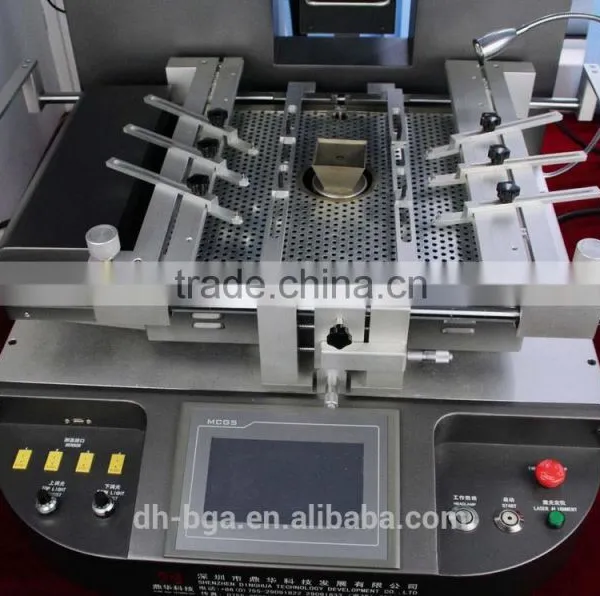

Detail picture of bga rework system DH-A4:
Certification:
Our company:
Our coperate:
Warranty and after-sale service:
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
We always answer your questions: 24 hours a day, 7 days a week.
The video link:
Thank you for your time!
