Specification:
Total Power |
5300W |
Top heater |
1200W |
Bottom heater |
2nd 1200W, 3rd IR heater 2700W |
Power |
AC220V±10% 50Hz |
Top hot air speed |
Can be adjusted with adjusting knob |
Operation mode |
Manual operate, HD touch screen, intelligent man-machine, digital system setting |
Optical CCD camera lens |
Frontward / backward |
Bga positioning |
Laser positioning, fast and accurate position of pcb and bga. |
Camera magnification |
10x - 220x |
Workbench fine-tuning: |
±15mm forward/backward, ±15mm right/left |
Placement accuracy: |
±0.01mm |
Lighting |
Taiwan led working light, any angle adjustable |
Temperature profile storage |
50000 groups |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±1℃ |
PCB size |
Max 390×400 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L610×W570×H750 mm |
Net weight |
60KG |

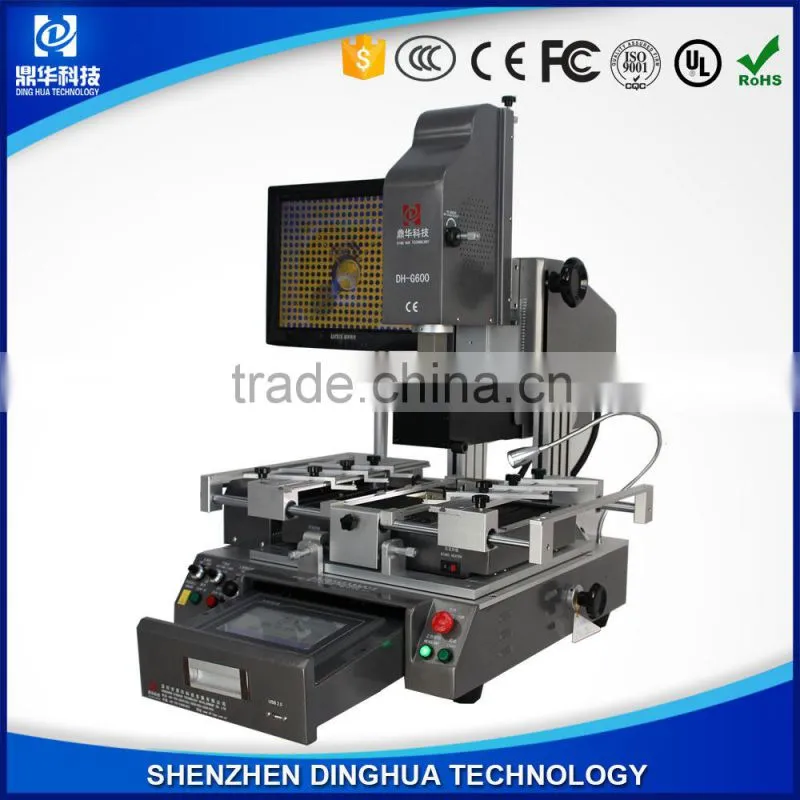

Semi-automatic industrial welding machine DH-G200 for motherboard chip weld ,soldering machine
Feature:
1.Embedded industrial PC, HD touch screen conversational interface, Digital system setting, Panasonic CCD camera system, PLC control, Human structure design, Optional number, store and choose temperature profile. With multi-function: “keep same temperature”, “instant curve analysis” and “voice warning before heating finish”. Real-time actual temperature and temperature curve setting can also be used to analyze and correct the curve if necessary.
2.High precise k-type thermocouple closed-loop control and PID automatic temperature compensation system, with PLC and temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
3.High precise optical alignment CCD camera system, high definition image, positioning coordinate, intelligent heating control, Linear slide to fine-tuning X, Y and R axis with micrometer rapidly, accurate and convenient, suitable for all kinds of PCB repairing.
4.Intelligent positioning, PCBA can be adjusted in X, Y direction with “5 point support” + V-groove pcb bracket + universal fixtures.
5.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
6.With different size of magnet nozzles, easy replace and install, rotate freely 360°, any size can be custom if need.
7.Three heating zones can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in touch screen conversational interface. Meanwhile PID calculation to control heating process more accurate and more stable.
8.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
9.Powerful cross flow fan, fast cooling for PCB and machine, prevent it from deformation. Build-in vacuum sucker to pick up bga chip conveniently.
10.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
11.CE certification approval. Double protection: Overheating guard + emergency stop function.
12.USB interface, convenient to download real time temperature curve and storage, also, can connected with mouse to control touch screen.

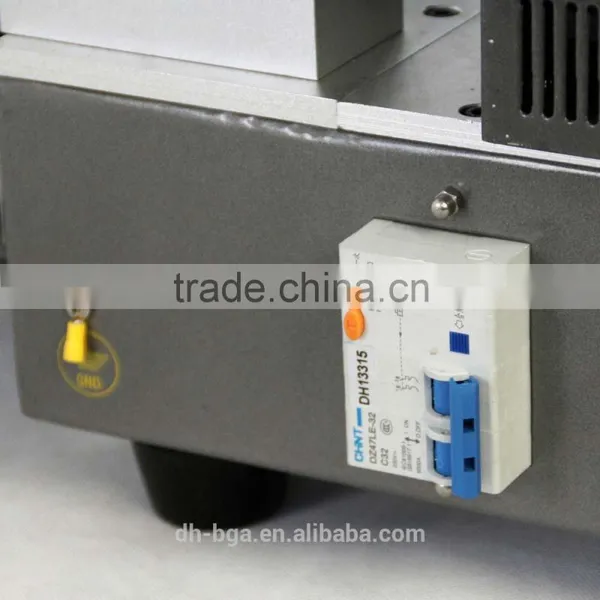

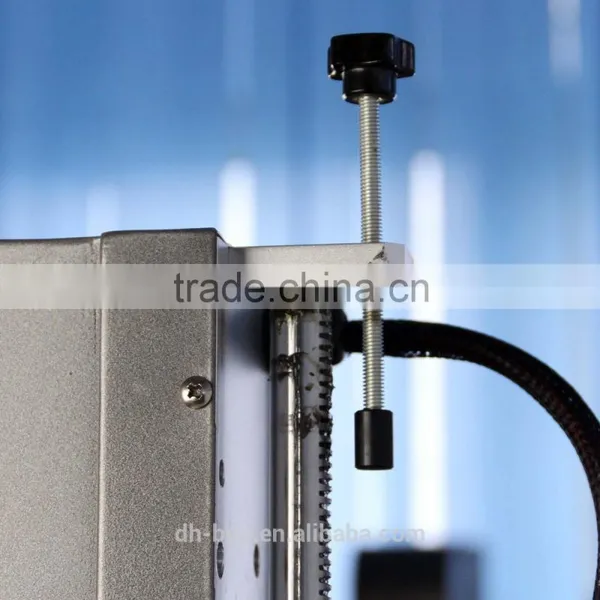

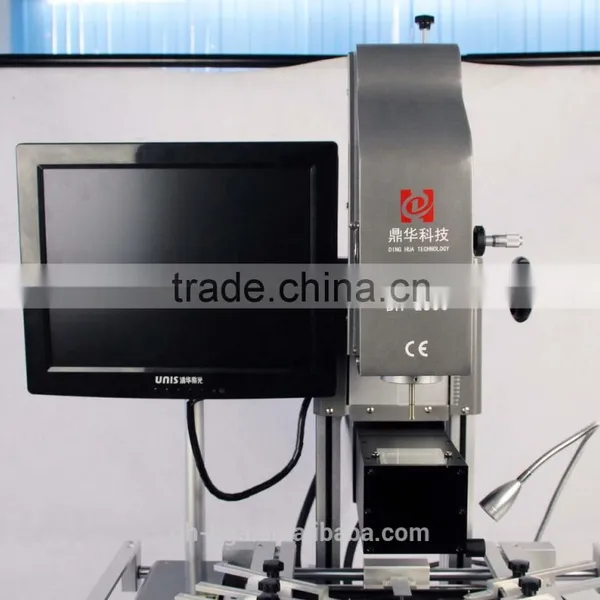

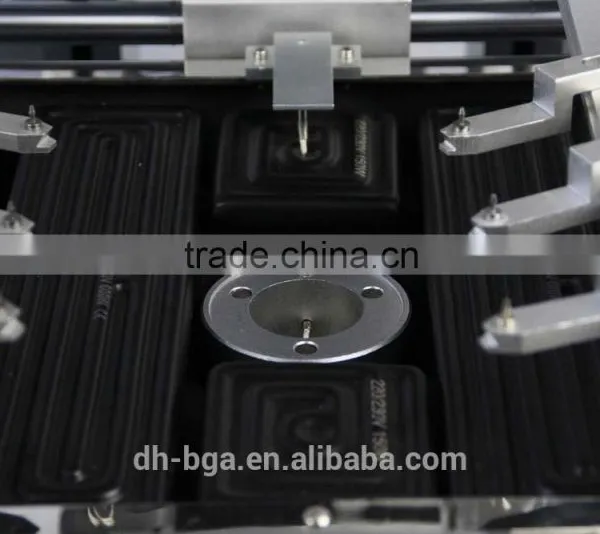

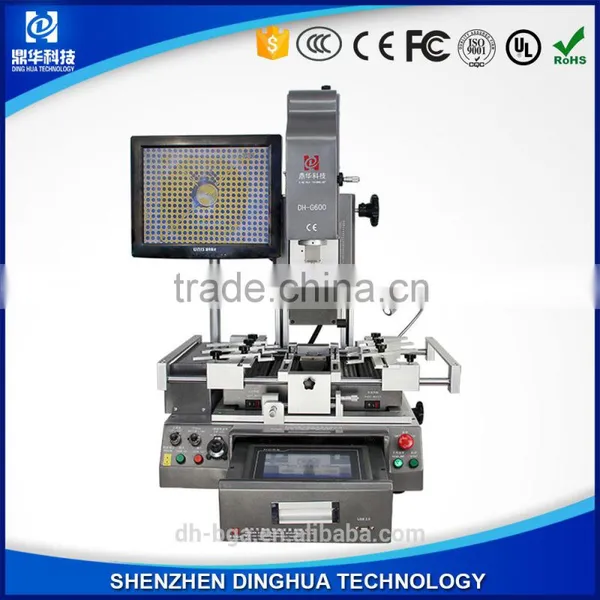

structrue of bga rework station DH-G200:
Warranty:
Three years warrantyfor heater wires of machine, one year warranty for other parts. life long free technical support.(two years longer then other companies.)
As we know, heaters are the most important part in the machine. Heater wires are offered free in three year, other parts free in one year.
Our heater wires are imported from German, high quality and durable, enables us to offer a longer time warranty than other companies.

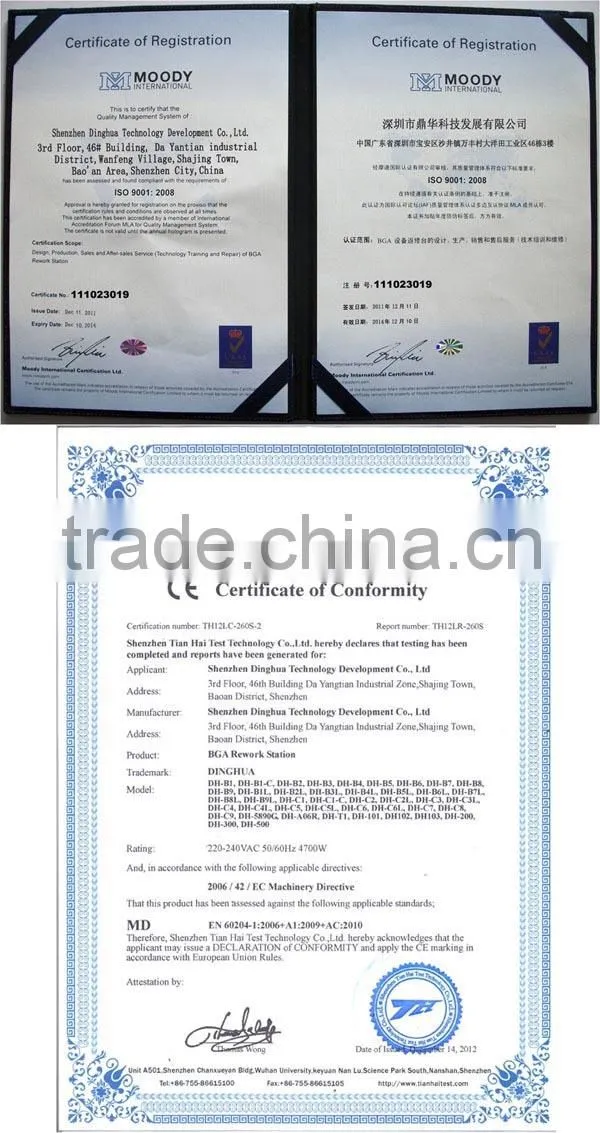

Certification:
