Automatic +laser position+CCD optical camera lens/ DH-G200 bga rework station for mobile phone chip, laptop chip repair.
Specification for DH-G200 bga rework station:
Total Power |
5300W |
Top heater |
1200W |
Bottom heater |
2nd 1200W, 3rd IR heater 2700W |
Power |
AC220V±10% 50Hz |
Top hot air speed |
Can be adjusted with adjusting knob |
Operation mode |
Manual operate, HD touch screen, intelligent man-machine, digital system setting |
Optical CCD camera lens |
Frontward / backward |
Bga positioning |
Laser positioning, fast and accurate position of pcb and bga. |
Camera magnification |
10x - 220x |
Workbench fine-tuning: |
±15mm forward/backward, ±15mm right/left |
Placement accuracy: |
±0.01mm |
Lighting |
Taiwan led working light, any angle adjustable |
Temperature profile storage |
50000 groups |
Positioning |
Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop |
Temp accuracy |
±1℃ |
PCB size |
Max 390×400 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
L610×W570×H750 mm |
Net weight |
60KG |

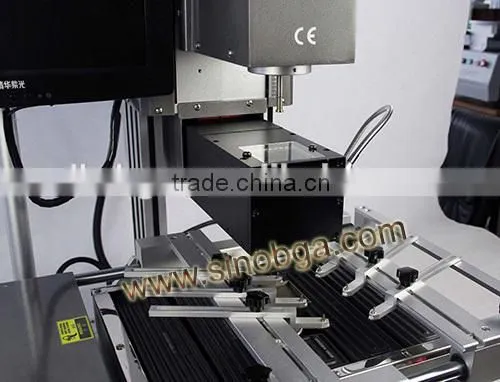

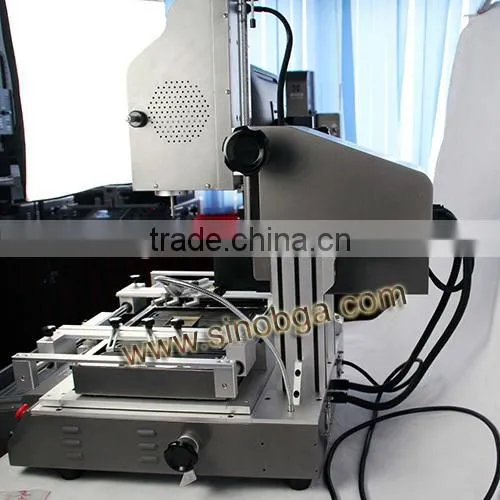

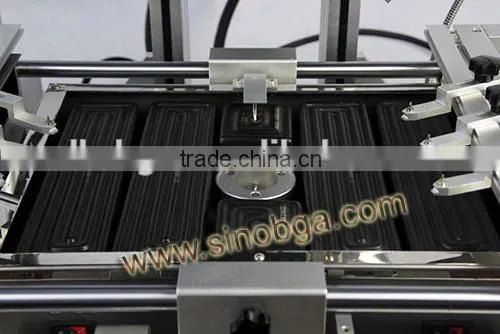

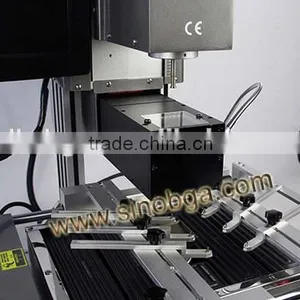

Pictures of DH-G200 BGA rework station
Features and advantage of DH-G200 BGA rework station
1.Embedded industrial PC, Digital system setting, Three independent heating zones, Panasonic CCD camera system, HD touch screen conversational interface, PLC control, Multi-functional integrated control, Human structure design, Folding optical lens, Optional number, store and choose temperature profile.
2.Two operation modes in system: Auto/manual. Auto mode: auto pick, placement, soldering / desoldering bga with button. Manual mode: Manual up/down top head to soldering / desoldering bga with joysticks. Both modes combines with optical alignment and laser positioning to finish the process. Meanwhile, build-in vacuum can pick up bga chip conveniently.
3.Multi-functions: “fast positioning”, “holding temperature”, “pressure sensor”, “instant temperature analysis”, “voice warning before heating finish”, “HD visual optical alignment”, “High precise temperature control, high repair rate, high stability”, etc.
4.High precise k-type thermocouple closed-loop control and PID automatic temperature compensation system, with PLC and temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
5.Laser positioning: help rapid place PCB on the center point, and with “5 points support position”, more convenient and accurate.
6.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
7.High power LED light to ensure brightness for working, and with different size of magnet nozzles, titanium alloy material, easy replace and install, never deformation and rusty.
8.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
9.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
10.CE certification approval. Double protection: Overheating guard + emergency stop function.
