DINGHUA DH-A5 fully automatic positining, soldering and desoldering, integration+optical alignment bga rework station
Specification for DH-A5 BGA rework station:
Total Power |
6700W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W,IR preheating 3900W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L700×W700×H950mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2°C |
PCB size |
Max 440×380 mm Min 22×22 mm |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
5 Optional |
Net weight |
91KG |

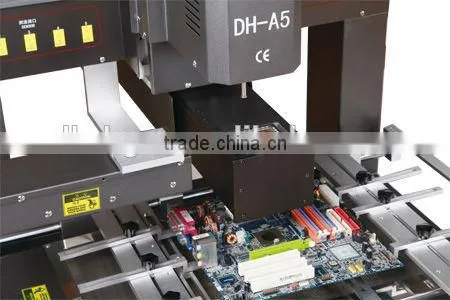

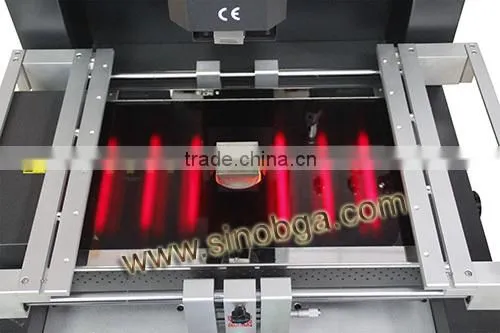

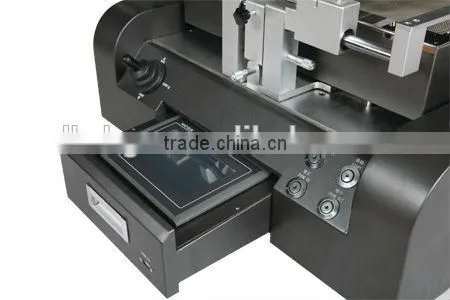

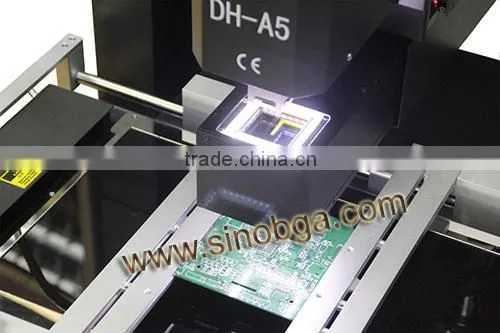

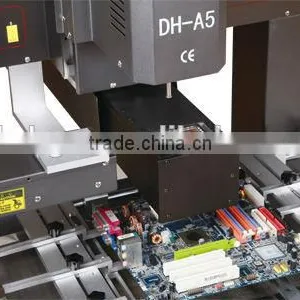

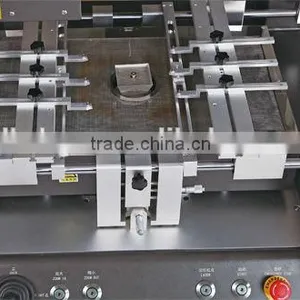

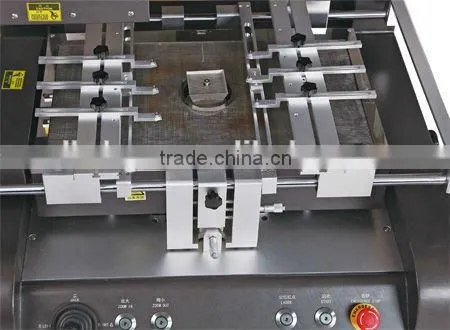

Pictures for DH-A5 bga rework station
Features and advantage of DH-A5 bga rework station:
1.Embedded industrial PC, Digital system setting, Three independent heating zones, Panasonic CCD camera system, HD touch screen conversational interface, PLC control, positon and temp measure more accuracy. Multi-functional integrated control, Human structure design, Folding optical lens, Optional number, store and choose temperature profile.
2.Two operation modes in system: fully-Automatic positioning, soldering, and desoldering, integration!
3.Multi-functions: “fast positioning”, “holding temperature”, “pressure sensor”, “instant temperature analysis”, “voice warning before heating finish”, “HD visual optical alignment”, “High precise temperature control, high repair rate, high stability”, etc.
4.High precise k-type thermocouple closed-loop control and PID automatic temperature compensation system, with PLC and temperature module and intelligent control unit to enable precise temperature deviation on ±2℃. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
5.Laser positioning: help rapid place PCB on the center point, and with “5 points support position”, more convenient and accurate.
6.Movable universal fixture prevent pcb from damaged on fringe component, suitable for all kinds of pcb repairing.
7.High power LED light to ensure brightness for working, and with different size of magnet nozzles, titanium alloy material, easy replace and install, never deformation and rusty.
8.6-8 segments temperature can be set for top heating and lower heating(up to 16 segments). 50,000 groups of temperature curves can be stored, which can number, modification and apply at any time according to different BGA. Curve analysis, setting and adjustment are also available on touch screen.
9.With Voice warning 5-10 seconds before heating finish: remind operator to pick up bga chip on time. After heating, cooling fan will work automatic, when temperature cool down to room temperature ( <45℃ ), cooling system will stop automatic to prevent the heater from aging.
10.CE certification approval. Double protection: Overheating guard + emergency stop function.
