Dinghua BGA Rework Station DH-A2 Semi Automated

Name: Dinghua BGA Rework Station DH-A2 Semi Automated
Brand: DINGHUA
SKU: 120878237
Availability: InStock

US$ 4,100 - 5,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DINGHUA

Model Number:

DH-A2

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DINGHUA

Model Number DH-A2

Voltage 220V, 50/60HZ

Current N/A

Rated Capacity N/A

Rated Duty Cycle N/A

Dimensions 600*700*850mm

Weight 70KG

Usage bga reballing kit for gaming consoles repairing

Certification CE, ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua bga rework station DH-A2 semi automated

DH-A2 Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

DH-A2 Specification:

Total Power	5300W
Top heater	1200W
Bottom heater	2nd 1200W, 3rd IR heater 2700W
Power	AC220V±10% 50Hz
Operation mode	Two modes: manual and automatic. HD touch screen, intelligent man-machine, digital system setting.

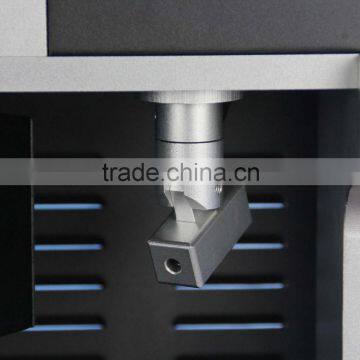

Optical CCD camera lens	90°open/folding
Camera magnification	10x - 220x
Workbench fine-tuning:	±15mm forward/backward, ±15mm right/left
Placement accuracy:	±0.01mm
Bga positioning	Laser positioning, fast and accurate position of pcb and bga
PCB position	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Lighting	Taiwan led working light, any angle adjustable
Temperature profile storage	50000 groups
Temperature control	K sensor, close loop, PLC control
Temp accuracy	±1℃
PCB size	Max 370×410 mm Min 22×22 mm
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	530x670x790mm
Net weight	70KG
