1. Specifications.
Power consumption |
6800W |
Top heater power |
1200W |
Bottom heater |
Second:1200W,third:4200W (Plus large fever area to adapt to all kinds of PCB board) |
Power supply |
AC220V±10% 50/60Hz |
Dimension |
L750*W1020*H1000 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor Closed loop controlled |
Temp accuracy |
±2 degrees |
PCB size |
Max 430*460 mm Min 22*22 mm |
BGA chip |
2*2-80*80 mm |
|
Minimum chip spacing |
0.15mm |

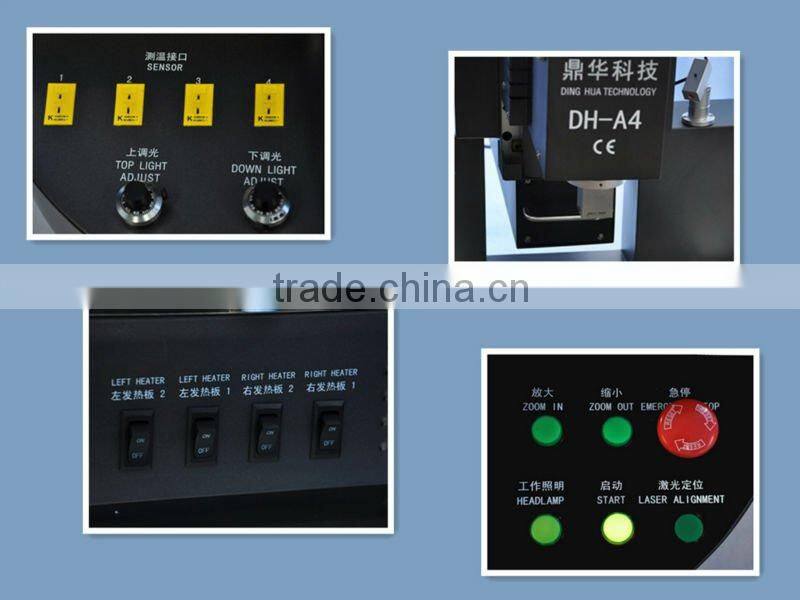

External Temperature Sensor |
5(optional) |
Net weight |
91kg |

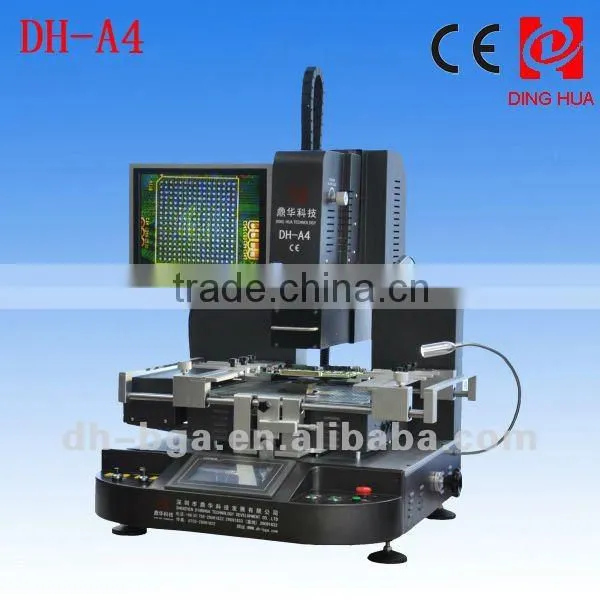

DH-A4 Main Features:
1 HD optical alignment system design, optical zoom up to 30 times. Alignment fine-tuning accuracy can be 0.01mm

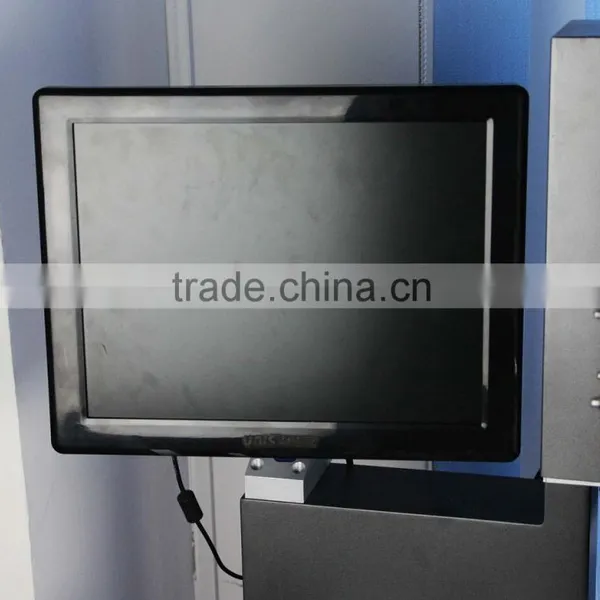

2 HD touch screen interface, PLC control.
3. 3 independent heaters, they can control the temperature more precisely.
4. Top heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic.
5. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
6 Cross- flow fan to cool PCB board after remove and reflow to ensure welding effective.
7. Sound hint system. There is a alarm before the completion of each work
8. CE certification, with emergency switch and automatic power-off protection device when emergency happens
