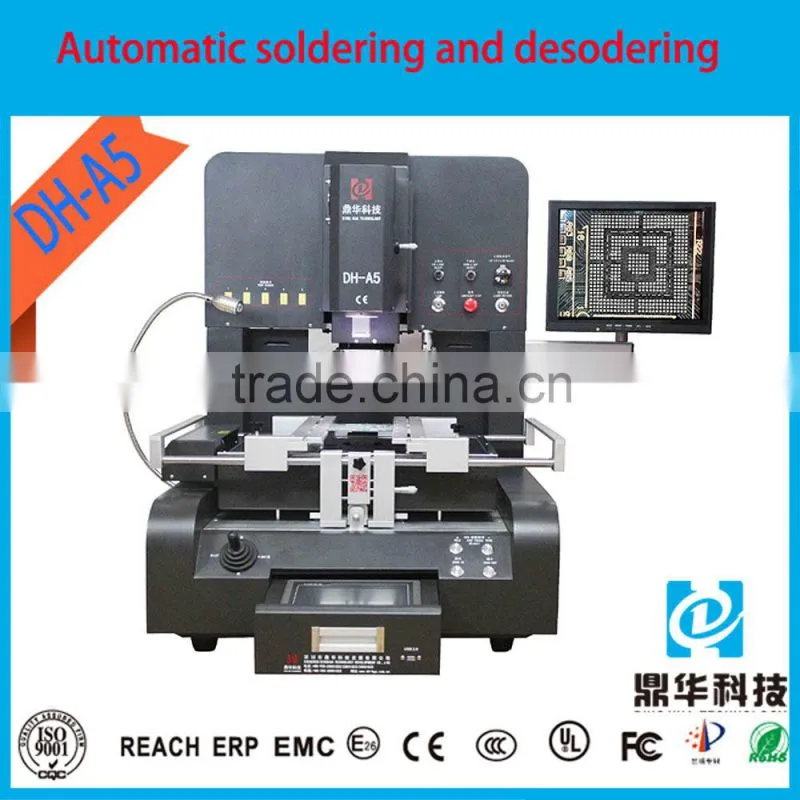

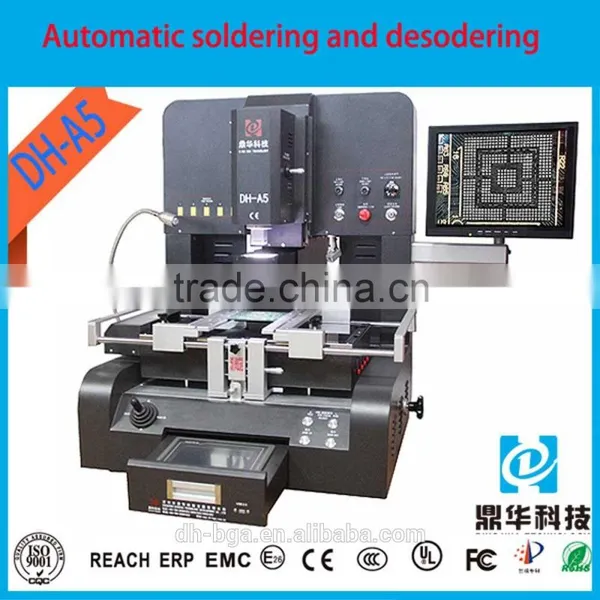

Auto CCD optical alignment system BGA rework machine repalcing and pick chips, resisters and other electronic for projectors, mobiles and laptops etc.
DH-A5 the related pictures
Power |
6700W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 3900W |
Power supply |
AC220V±10% 50/60Hz |
Dimension |
L950*W750*H950 mm |
Positioning |
V-groove PCB support, and with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temperature accuracy |
±2°C |
PCB size |
Max 450*490 mm, Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward,±15mm right/left |
BGA chip |
80*80-2*2mm |
Minimum chip spacing |
0.15mm |
Temp Sensor |
5(optional) |
Net weight |
91kg |
A5 Main Features

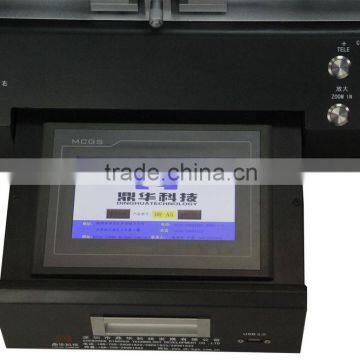

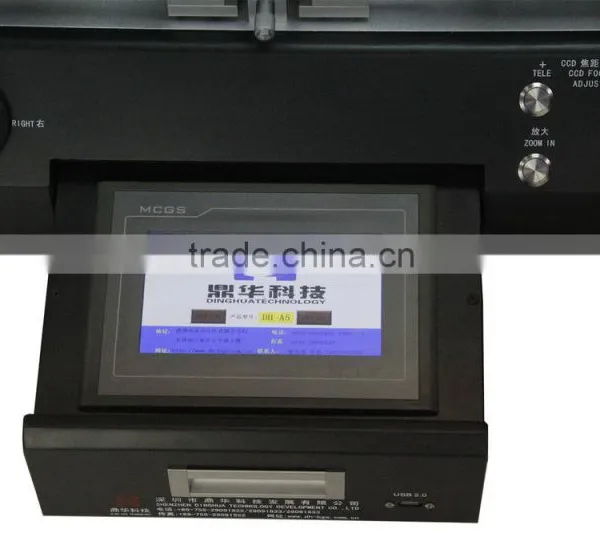

lHD touch screen interface, PLC control

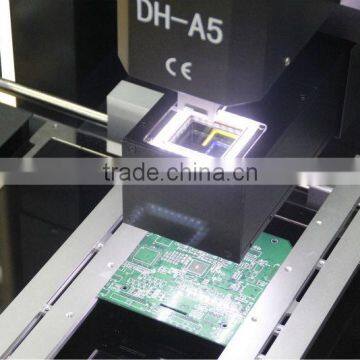

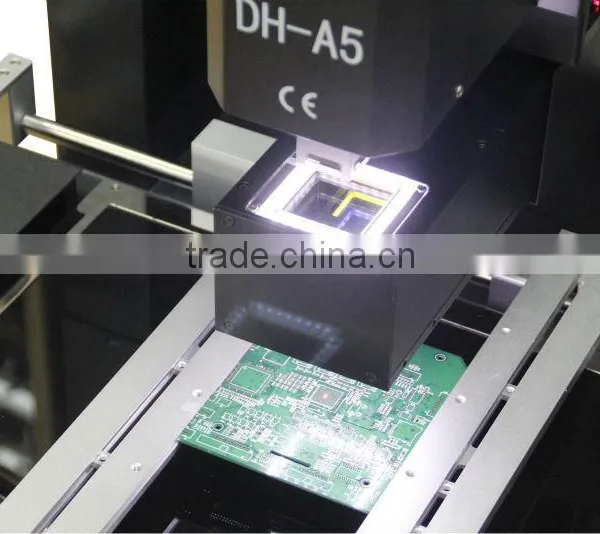

lHD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
lTop heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic. Top heater height can be adjust after auto process, user-friendly. Placement height and height of top heater can be set or detect auto.
lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
lK sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
lHot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
lV-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lPowerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
lSound hint system. There is an alarm before the completion of each desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens

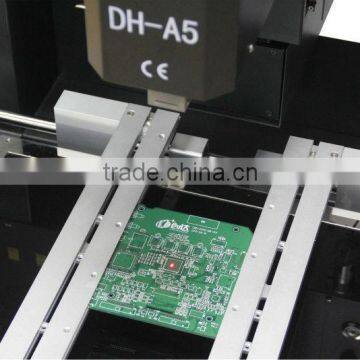

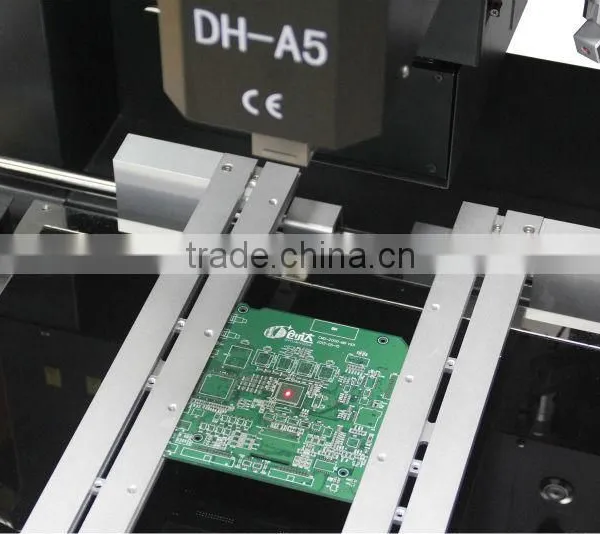

Laser positioning

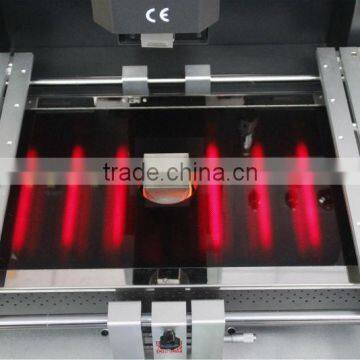

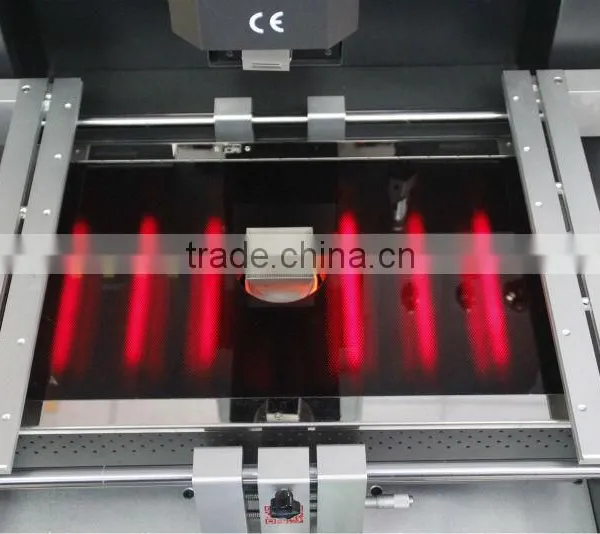

IR preheater
Workbench fine-tune
CE certification
